Installing (Inner) Rear Wheel Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit and secure (inner) rear wheel housing.
  2. Weld in (inner) rear wheel housing.

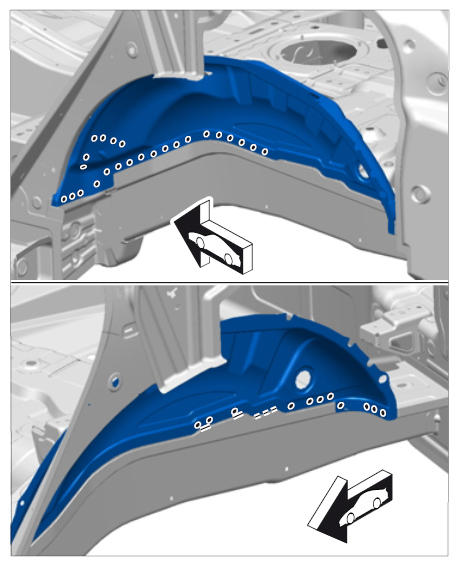

    Fig 1: Identifying Weld In (Inner) Rear Wheel Housing
    G09939174Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Resistance spot-weld (inner) rear wheel housing.
    2. 2.2. Spot-weld (inner) rear wheel housing using inert gas.
  3. Spot-weld (inner) rear wheel housing using inert gas.

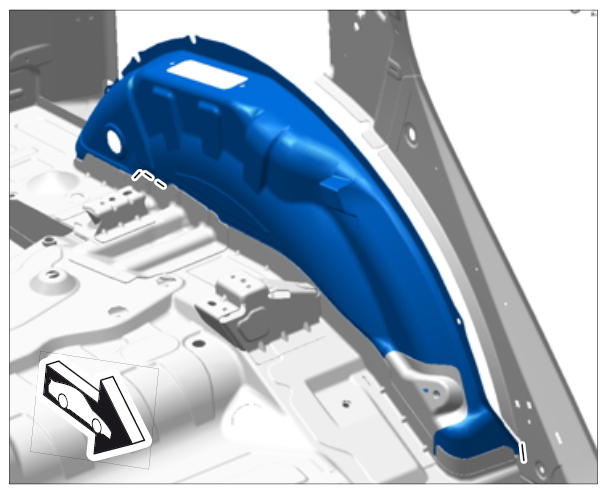

    Fig 2: Identifying Spot-Weld (Inner) Rear Wheel Housing
    G09939175Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install (outer) rear wheel housing. → 536855 REPLACING (OUTER) REAR WHEEL HOUSING  - section on "Installing"
