Removing Rear Side Section (Roof Removed)

Information

• All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

Information

Mark cuts in accordance with the new part. Make sure to leave an overlap of approx. 3 cm with respect to the body.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

1. Mark and make cuts in rear side section.

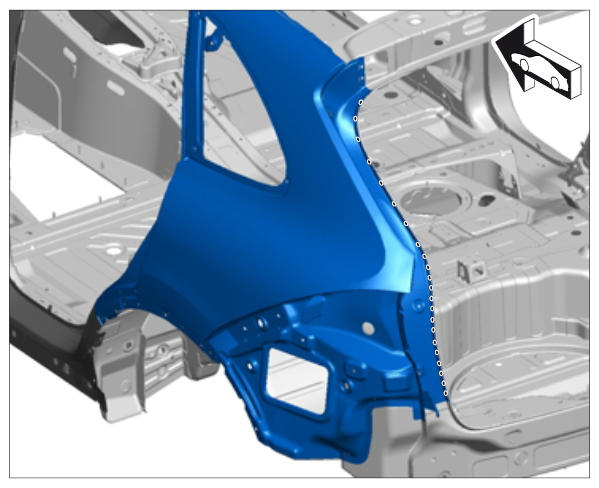

   Fig 1: Rear Side Section Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Loosen welded joints.

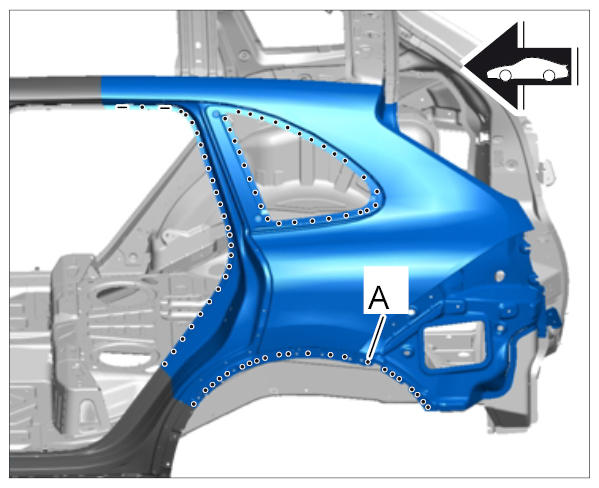

   Fig 2: Identifying Rear Side Section Welded Joints

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out spotweld A  through two plate thicknesses.

   1. 2.1. Drill out spotwelds using Spotweld Drill  .
   2. 2.2. Grind down laser-welded seams.
3. Loosen welded joints.

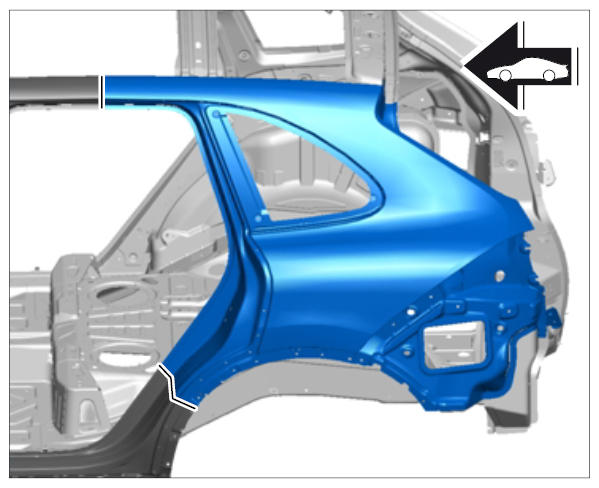

   Fig 3: Identifying Rear Side Section Welded Joints

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Drill out spotwelds.
   2. 3.2. Grind down MIG seams.
4. Grind down the spotwelds.

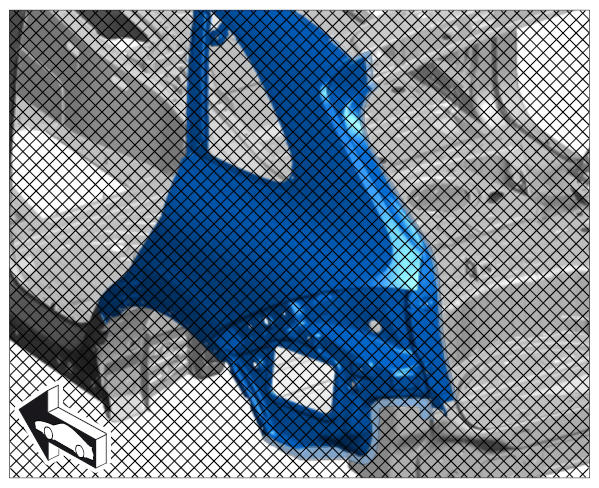

   Fig 4: Identifying Rear Side Section Spotwelds Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Grind down MIG seams.

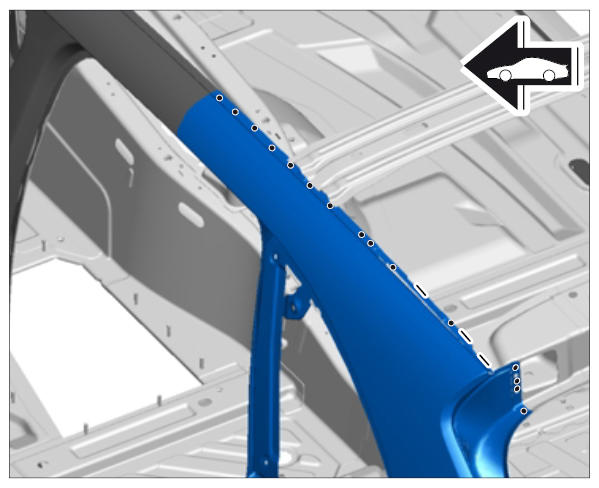

   Fig 5: Identifying Rear Side Section MIG Seams

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Loosen rear transverse roof struts and support against lowering.
7. Loosen welded joints.
   Fig 6: Identifying Welded Joints On Rear Side Section

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Drill out spotwelds.
   2. 7.2. Grind down MIG seams.
8. Heat up connection areas using a hot-air gun.

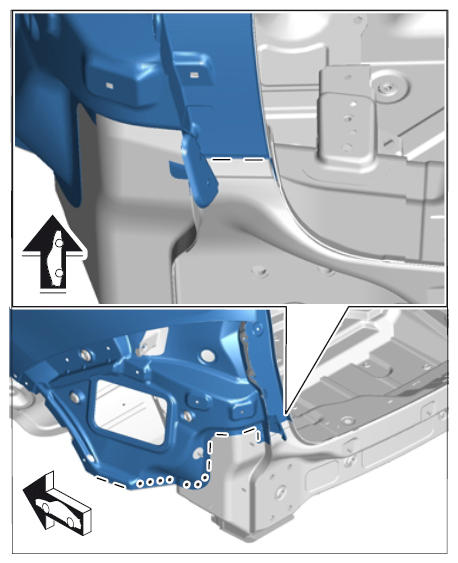

   Fig 7: Identifying Rear Side Section Heat Up Connection Areas (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

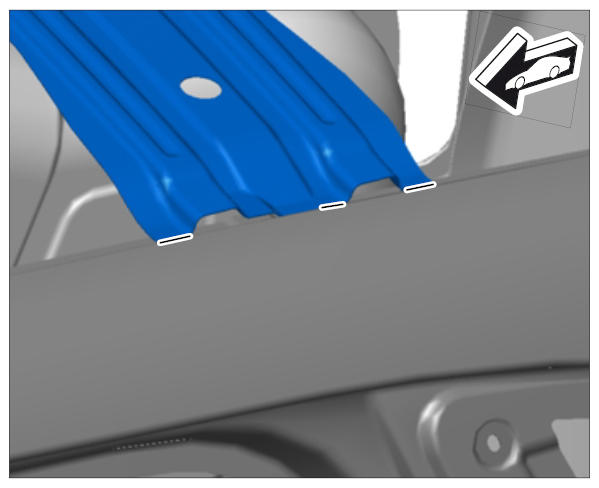

   Fig 8: Identifying Rear Side Section Heat Up Connection Areas (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove rear side section.
