Preparing Rear Side Section For Installation (Roof Removed)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit rear side section.
1. 1.1. Cut rear side section at the transitions to the body leaving an overlap of 30 mm.

  Fig 1: Identifying Rear Side Section For Installation (Roof Removed)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fit rear side section.
  Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS

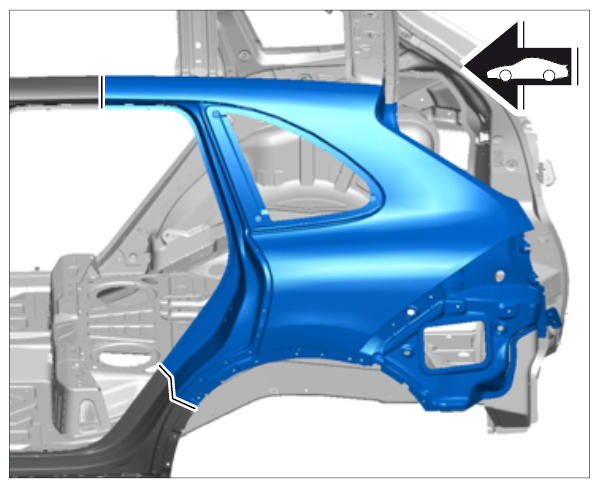

  Fig 2: Identifying Rear Side Section Body Gap Dimensions
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Make cuts through the rear side section and body in the overlap areas.
Make holes for plug welding using inert gas with a body hole punch.

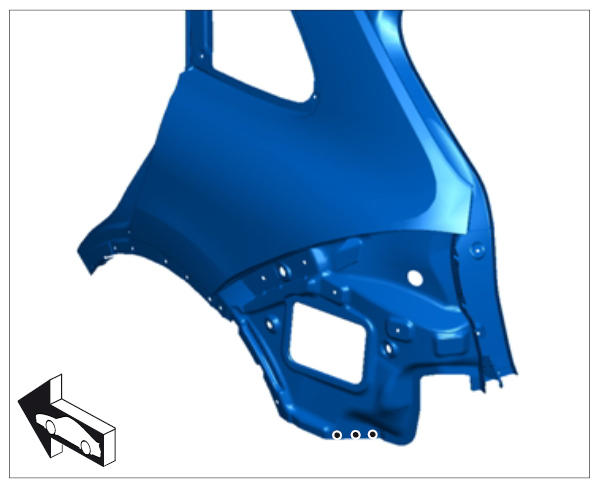

Fig 3: Identifying Holes For Plug Welding On Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind both sides of the connecting flanges of the rear side section in the marked areas until bare.

Fig 4: Identifying Connecting Flanges Of Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not apply zinc powder paint to the bonding areas.
Coat all spot-weld flange areas with zinc powder paint.
