Installing Rear Side Section (Roof Removed)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply adhesive.

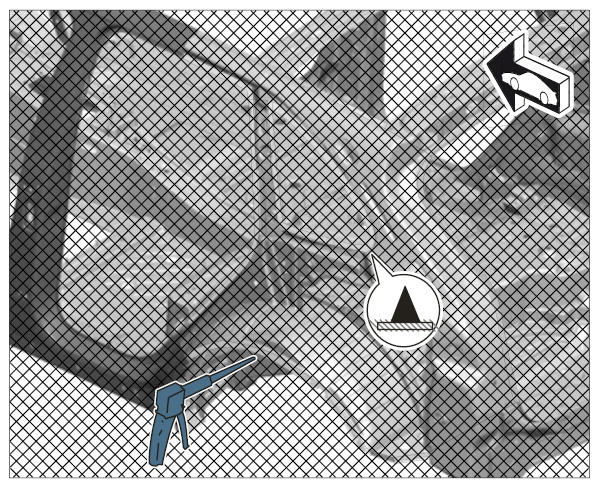

Fig 1: Applying Adhesive To Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Evenly apply adhesive to the marked areas.
  Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
Fit and secure rear side section.
Observe gap dimensions. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
Resistance spot-weld the rear side section.

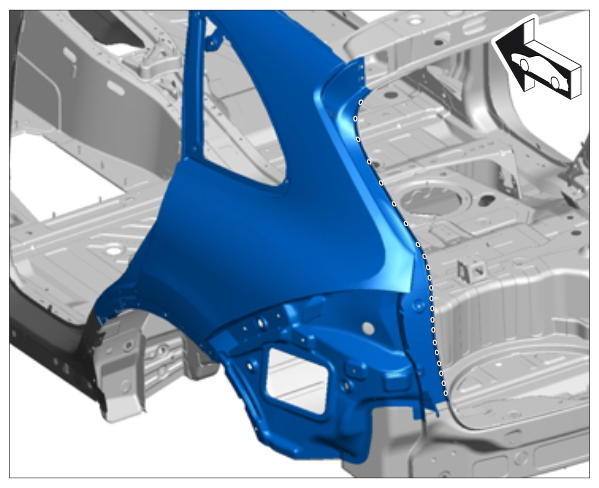

Fig 2: Identifying Resistance Spot-Weld Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance spot-weld the rear side section.

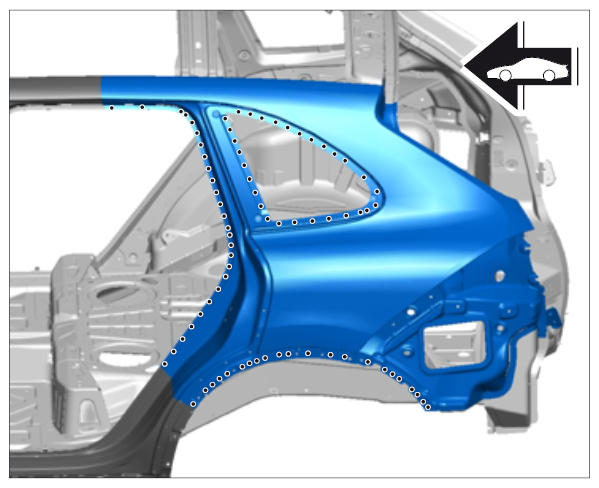

Fig 3: Identifying Resistance Spot-Weld Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in rear side section.

Fig 4: Identifying Weld In Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Resistance spot-weld rear side section.
2. 5.2. Apply a welded seam to the rear side section using inert gas.
Weld in rear side section.

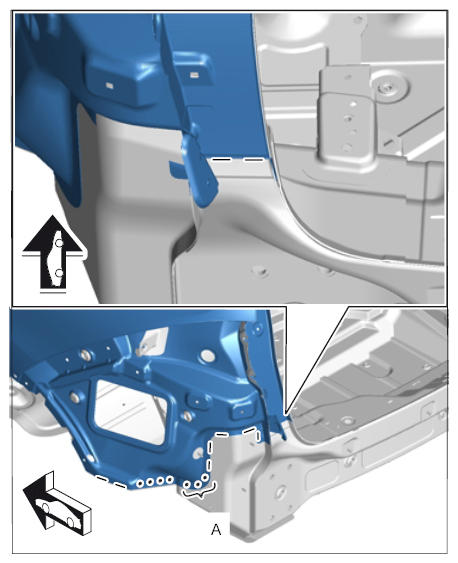

Fig 5: Identifying Weld In Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Resistance spot-weld rear side section.
2. 6.2. Apply a welded seam to the rear side section using inert gas.
3. 6.3. Plug-weld rear side section in the area -A- using inert gas.
Apply a full butt weld one in front of the other to the rear side section using inert gas.

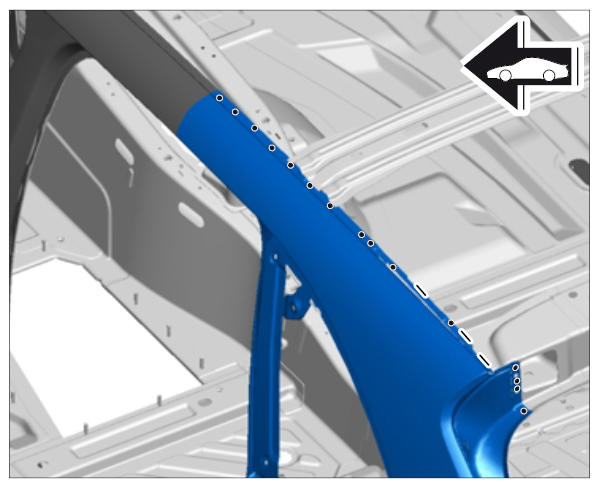

Fig 6: Identifying Welded Seam To Rear Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in rear transverse roof strut.

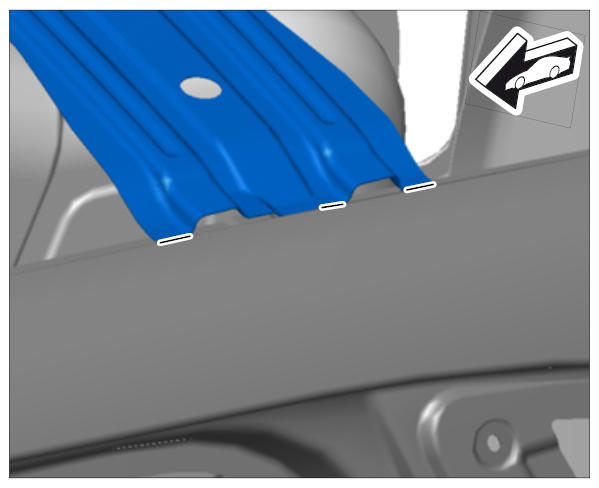

Fig 7: Identifying Weld In Rear Transverse Roof Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 8.1. Remove support.
2. 8.2. Spot-weld rear transverse roof strut using inert gas.
