WM 535555 Replacing Rear Side Panel: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Designation Type Number Description
Hot-Air Blower, Leister-Electron/VAG 1416 Workshop Equipment WE 1119
G09939071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body Straightening System, Celette Workshop Equipment WE 1121
G09939072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

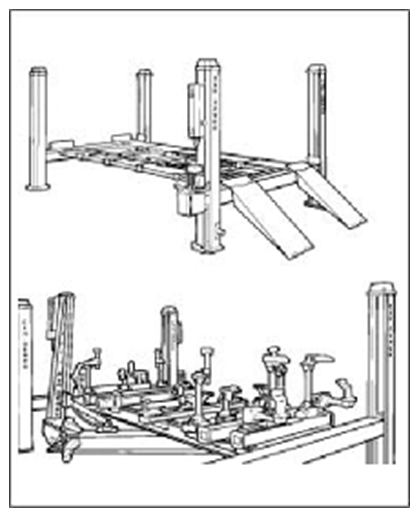

Body Straightening System, Car Bench Workshop Equipment WE 1122
G09939073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

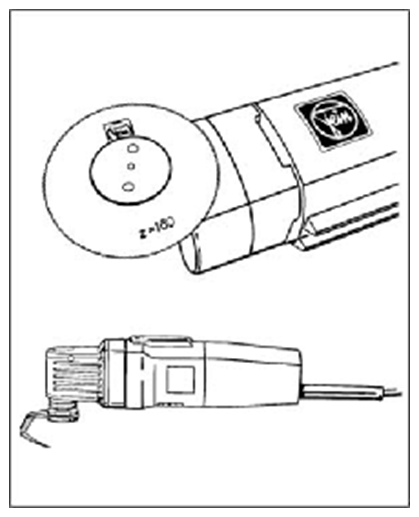

Special Electric Cutter - Fine Workshop Equipment WE 1137
G09939074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

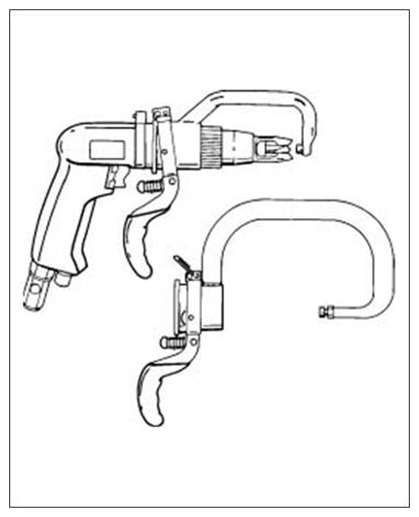

Pneumatic Spotweld Remover, Vario Drill WS 90 Workshop Equipment WE 1139
G09939075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

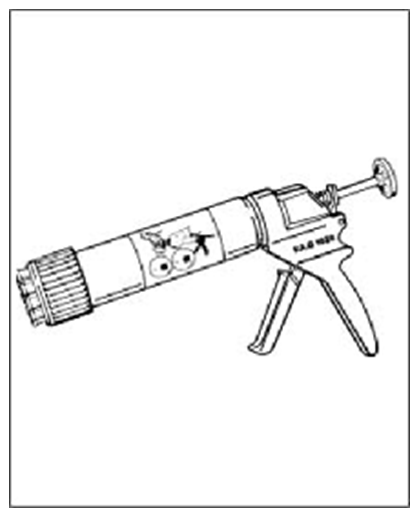

Cartridge Gun VAG 1628 Workshop Equipment WE 1141
G09939076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body Saw VAG 1523A Workshop Equipment WE 1347
G09939077Courtesy of PORSCHE CARS NORTH AMERICA, INC.

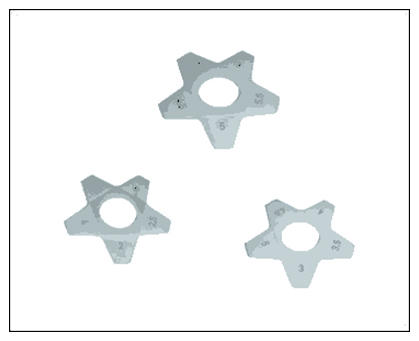

Star Gauges For Body Gap Dimensions Special Tool Nr. 127-1
G09939078Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spotweld Drill Commercially Available Tool Nr. 129
G09939079Courtesy of PORSCHE CARS NORTH AMERICA, INC.

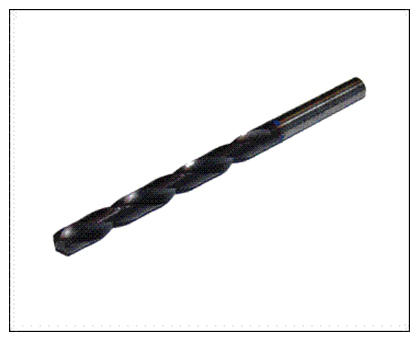

Twist Drill Commercially Available Tool Nr. 201
G09939080Courtesy of PORSCHE CARS NORTH AMERICA, INC.
