Adjusting Connection Point For Tail Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Due to technical issues, it is not possible to provide a side panel with a tail light holder with hole pattern for repair work. In this case, the bore must be drilled afterwards.

Mark center drill hole on the holder.

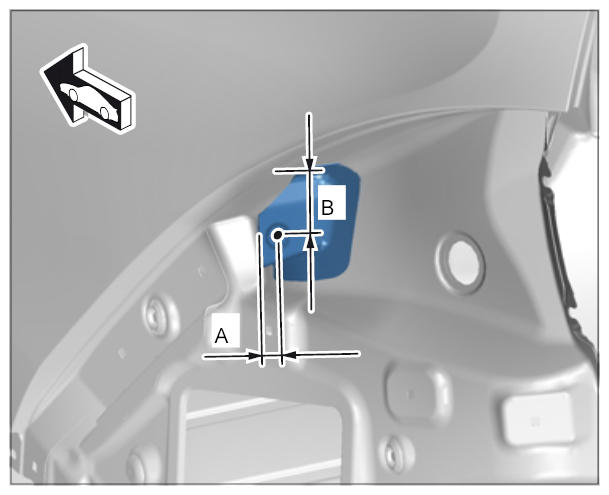

Fig 1: Adjusting Position Of Connection Point For Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Mark drill hole.
  → Distance A: 57.8 mm → Distance B: 17.9 mm
Mark drill holes on the holder.

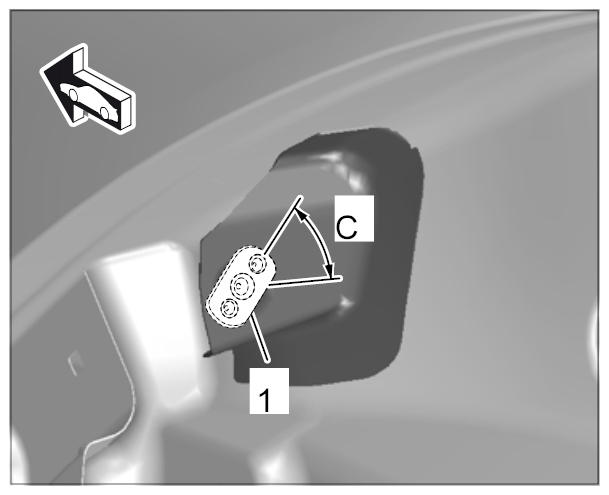

Fig 2: Adjusting Connection Point For Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Put spacing plate -1- in position and align it. → Torque angle: 45°
2. 2.2. Mark the center of the holes with a marking tool.
Drill holes in the holder.

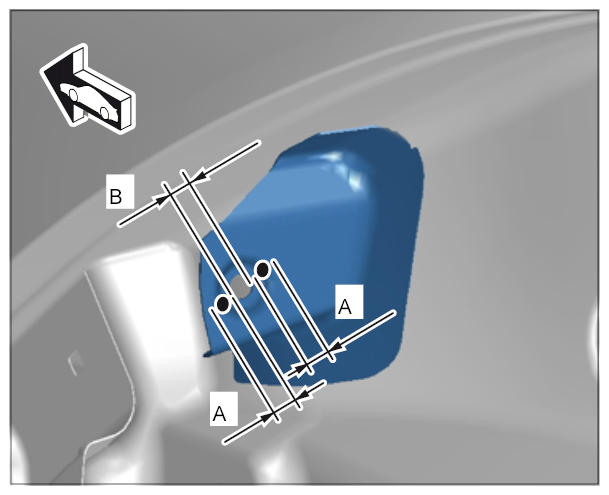

Fig 3: Adjusting Connection Point For Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Drill the holes → Bore A: 8 mm
2. 3.2. Drill the hole. → Bore B: 20 mm
3. 3.3. File out the transitions between the holes.
Fit retainer plate.

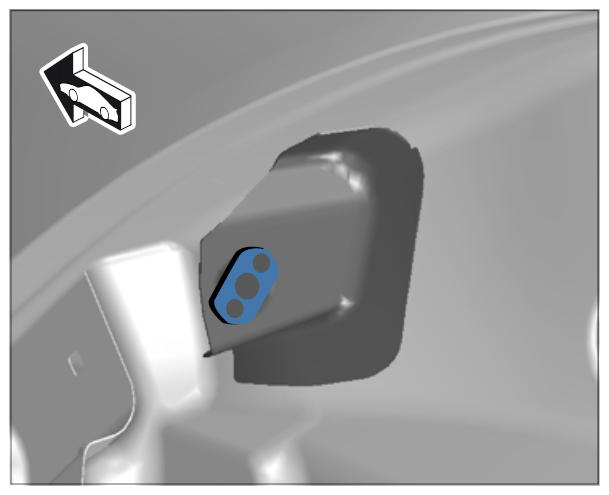

Fig 4: Identifying Retainer Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
