Removing Rear Side Member (Section)

Information

• The illustrations shown are for the previous model and consequently may differ slightly.

Information

• All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

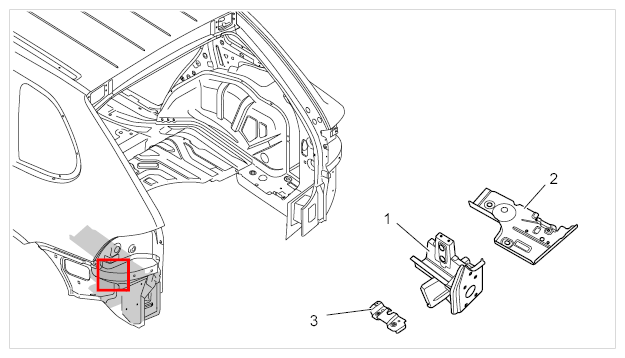

Fig 1: Rear Side Member Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Rear side member (section)
2. Floor section, left
3. Support

1. Remove the spare-wheel well and side floor section. → 532455 REPLACING REAR TRUNK FLOOR PANEL  - section on "Removing"
2. Separate floor section.

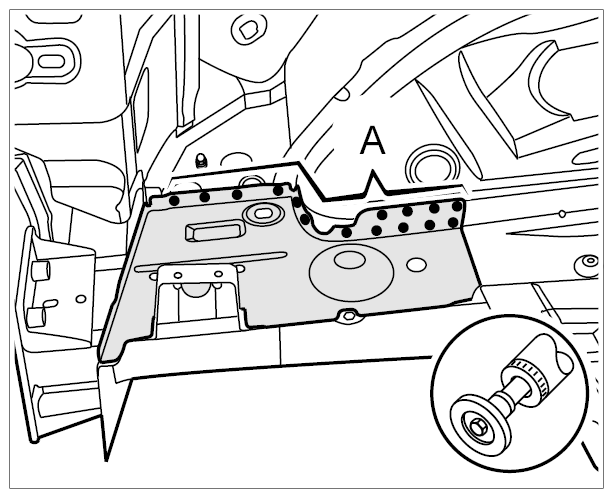

   1. 2.1. Grind off welded joints on the floor section using a parting grinder (area -A-  ).
      Fig 2: Grinding Off Welded Joints On Floor Section Using Parting Grinder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

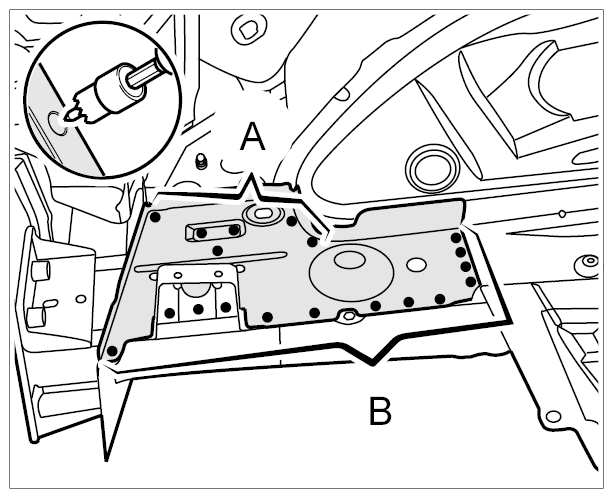

   2. 2.2. Mill off welded joints on the floor section using the spotweld cutter (areas -A and B-  ).
      Fig 3: Milling Off Welded Joints On Floor Section Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

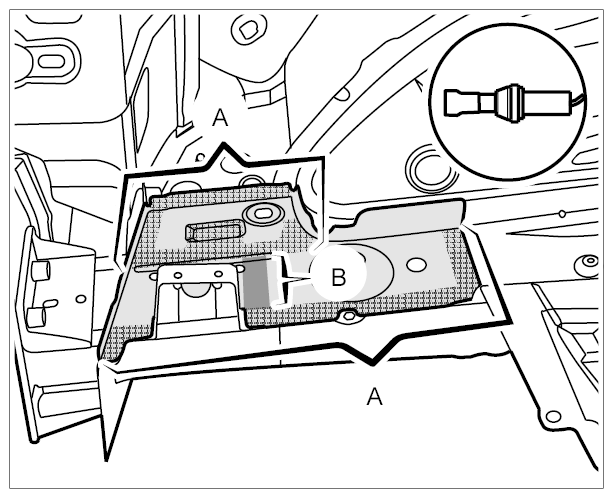

   3. 2.3. Heat up sealing areas on the floor section uniformly using a hot-air blower (areas -A-  ).
      Fig 4: Identifying Heating Up Sealing Areas On Floor Section

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 2.4. Heat up bonding area of seal uniformly using a hot-air blower (area -B-  ).
3. Remove floor section.
4. Separate rear side member at the bottom of the D-pillar.

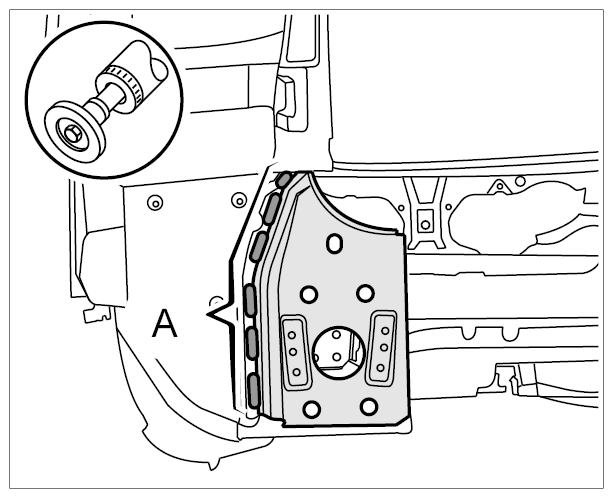

   1. 4.1. Grind off MIG seams on the D-pillar using a parting grinder (area -A-  ).
      Fig 5: Grinding Off MIG Seams On D-Pillar Using Parting Grinder

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Cut through rear side member.

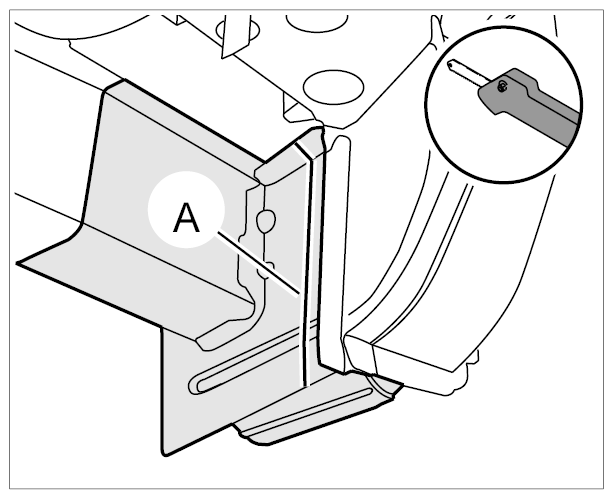

   1. 5.1. Cut through the rear side member at the "tailored blank" welded seam -A-  using the body saw.
      Fig 6: Cutting Through Rear Side Member Welded Seam Using Body Saw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Separate rear side member at the bottom of the D-pillar from the outside.

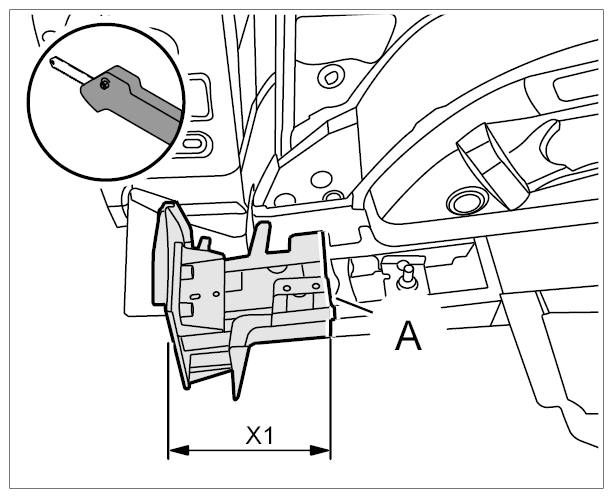

   1. 6.1. Separate the rear side member from the bottom of the D-pillar by making a rough cut in area -A-  using the body saw.
      Fig 7: Separating Rear Side Member From D-Pillar Using Body Saw

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove rear side member.
8. Separate remaining part of side member on the bottom of the D-pillar.

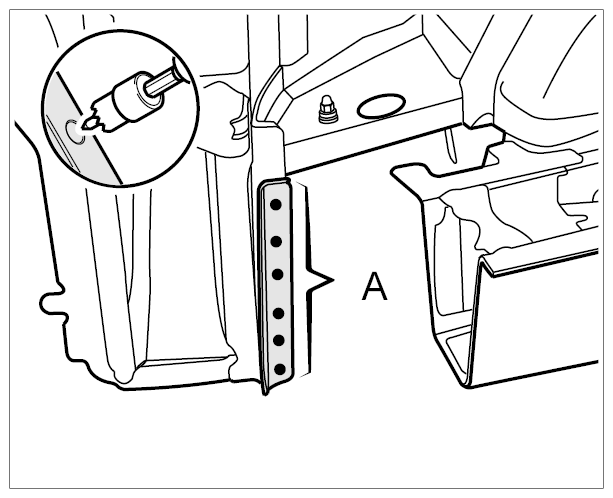

   1. 8.1. Mill off welded joints at the bottom of the D-pillar using the spotweld cutter (area -A-  ).
      Fig 8: Milling Off Welded Joints At Bottom Of D-Pillar Using Spotweld Cutter

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove remaining piece of side member.
