Preparing Connection Areas Of The Body For Installing Rear Side Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean welding and sealing areas.
1. 1.1. Clean the body connecting flanges of underbody protection, adhesive residue and paint in the marked areas.

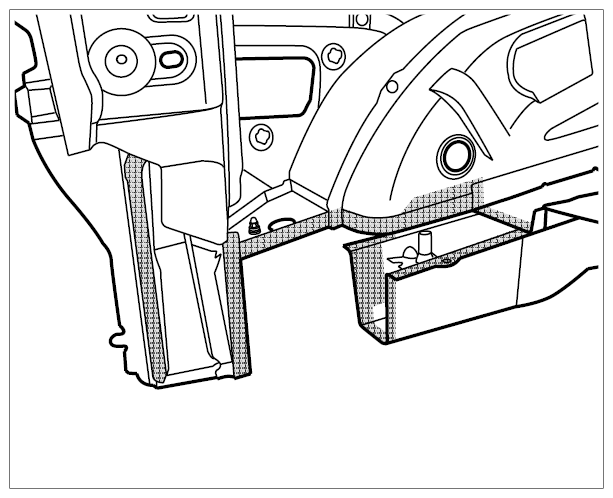

  Fig 1: Identifying Connection Areas On Body
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Grind the connecting flanges until bare.
Information

Do not apply zinc powder paint to the bonding areas.
Coat all spot-weld flange areas with zinc powder paint.
