Removing D-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear side section (roof removed). → 535555 REPLACING REAR SIDE SECTION (ROOF REMOVED)  - section on "Removing"
  2. Remove closing panel. → 530555 REPLACING REAR CLOSING PANEL  - section on "Removing"
  3. Loosen welded joints.

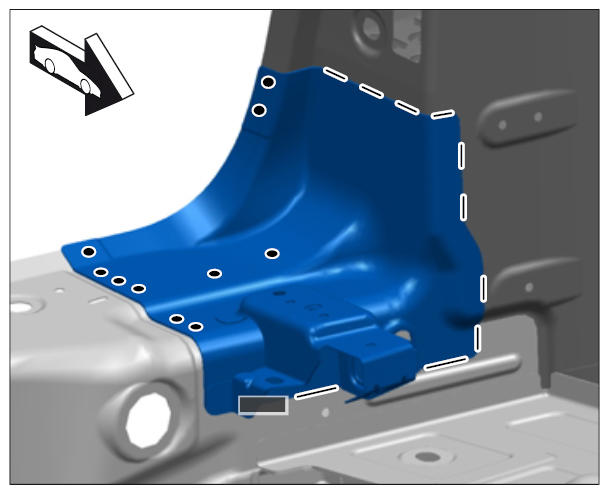

    Fig 1: D-Pillar Gusset Plate Component Location
    G09938914Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Drill out spotwelds using Spotweld Drill  .
    2. 3.2. Grind down MIG seams.
  4. Remove D-pillar gusset plate.
  5. Grind down MIG seams.

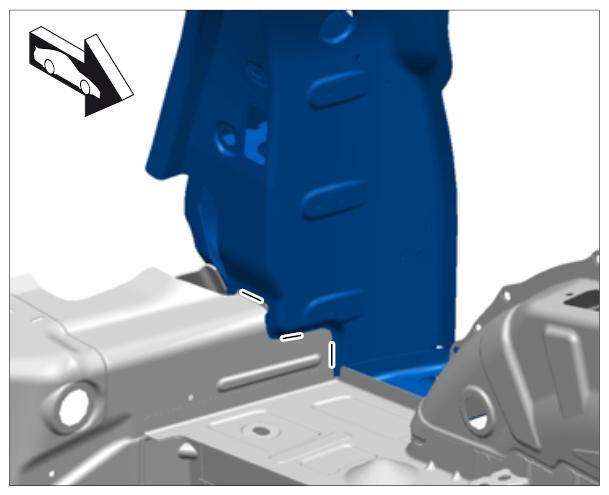

    Fig 2: Identifying D-Pillar Gusset Plate MIG Seams
    G09938915Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Grind down MIG seams.

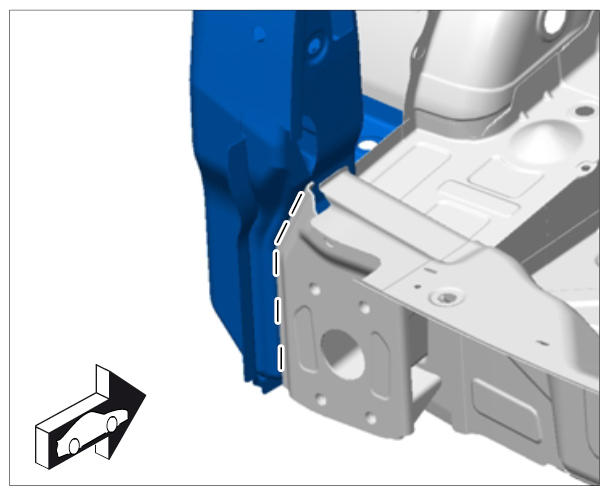

    Fig 3: Identifying D-Pillar Reinforcement MIG Seams
    G09938916Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Drill out and grind down spotwelds.

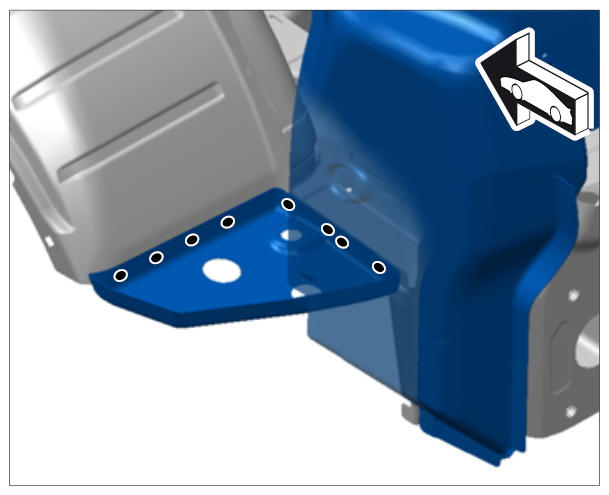

    Fig 4: Identifying D-Pillar Reinforcement Spotwelds
    G09938917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Loosen welded joints.

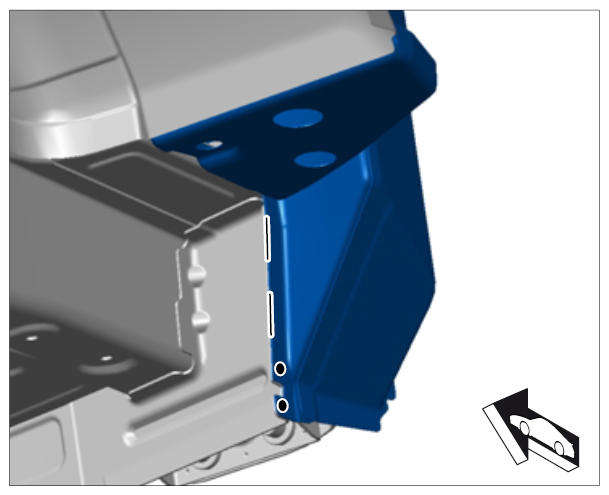

    Fig 5: Identifying D-Pillar Reinforcement Welded Joints
    G09938918Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 8.1. Drill out spotwelds.
    2. 8.2. Grind down MIG seams.

    Information

    Drill out spotwelds A, B, C, D  through two plate thicknesses.

  9. Loosen welded joints.

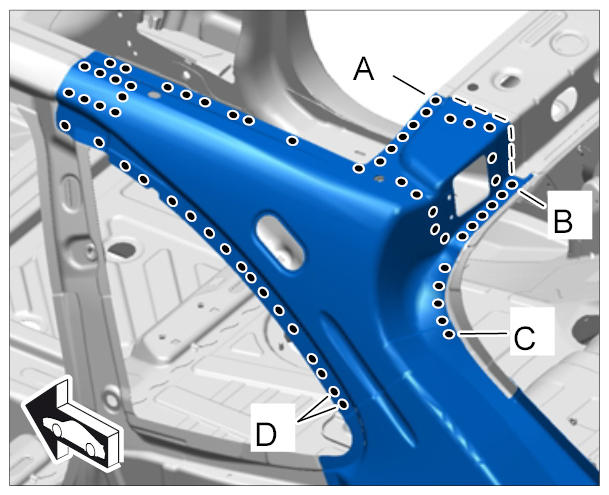

    Fig 6: Identifying D-Pillar Reinforcement Welded Joints
    G09938919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 9.1. Drill out spotwelds.
    2. 9.2. Grind down MIG seams.
  10. Drill out spotwelds.

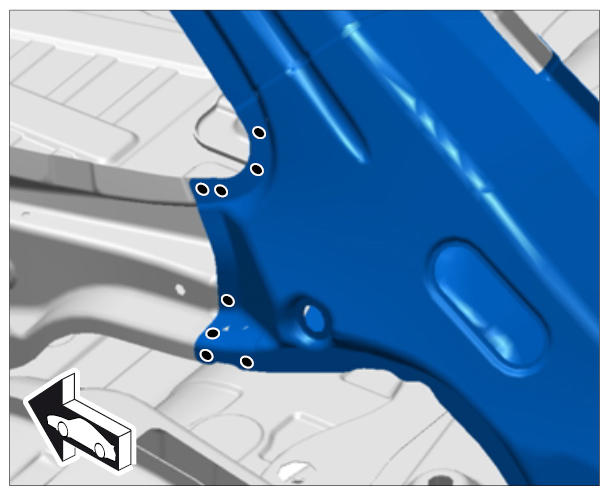

    Fig 7: Identifying D-Pillar Reinforcement Spotwelds
    G09938920Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Drill out spotwelds.

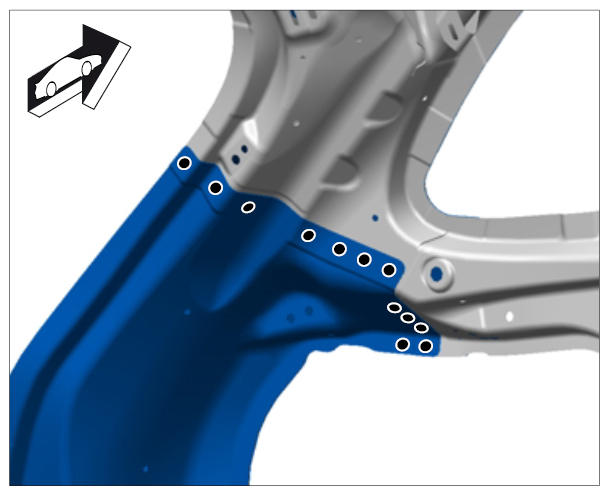

    Fig 8: Identifying D-Pillar Reinforcement Spotwelds
    G09938921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Heat up connection areas using a hot-air gun.
    Fig 9: Identifying D-Pillar Reinforcement Heat Up Connection Areas (1 Of 2)
    G09938922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

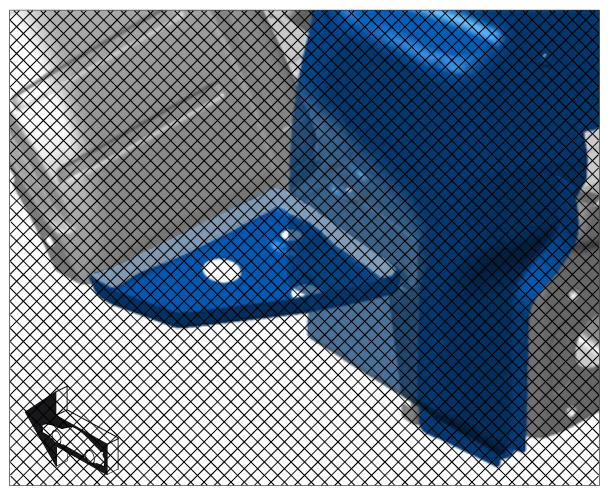

    Fig 10: Identifying D-Pillar Reinforcement Heat Up Connection Areas (2 Of 2)
    G09938923Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Remove D-pillar reinforcement.
