Removing D-Pillar Reinforcement (Section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear side section. → 535555 REPLACING REAR SIDE SECTION - section on "Removing"
Remove closing panel. → 530555 REPLACING REAR CLOSING PANEL - section on "Removing"
Loosen welded joints.

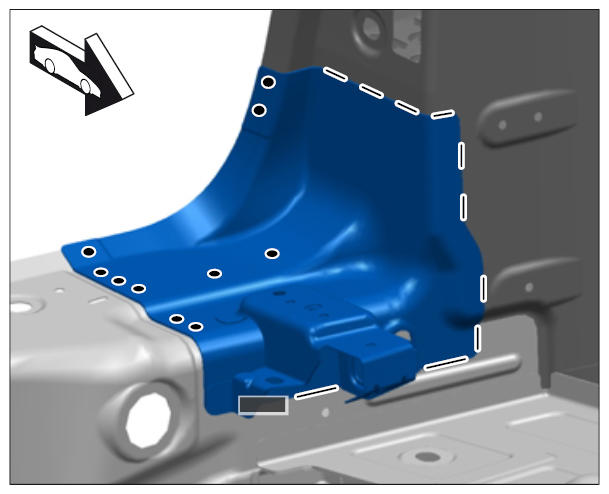

Fig 1: D-Pillar Gusset Plate Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Drill out spotwelds using Spotweld Drill .
2. 3.2. Grind down MIG seams.
Remove D-pillar gusset plate.
Information

Drill out spotwelds A and B through two plate thicknesses.
Drill out spotwelds.

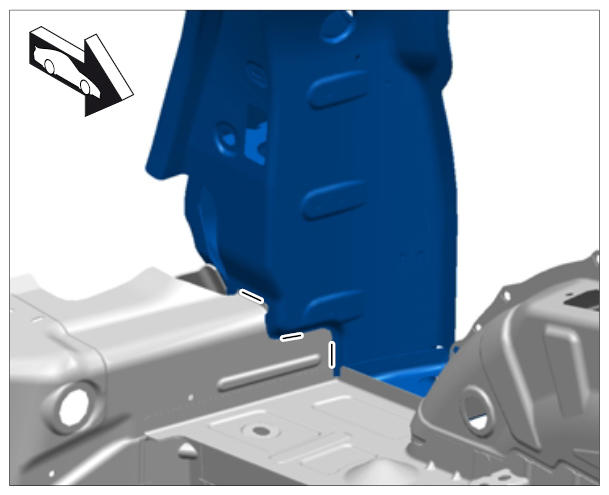

Fig 2: Identifying D-Pillar Reinforcement Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down MIG seams.

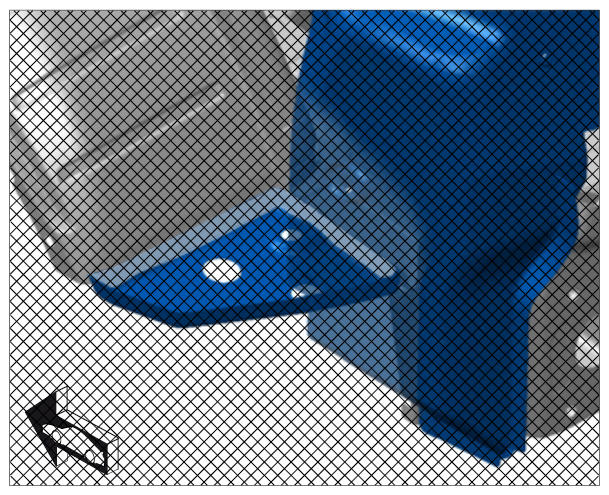

Fig 3: Identifying D-Pillar Reinforcement MIG Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down MIG seams.

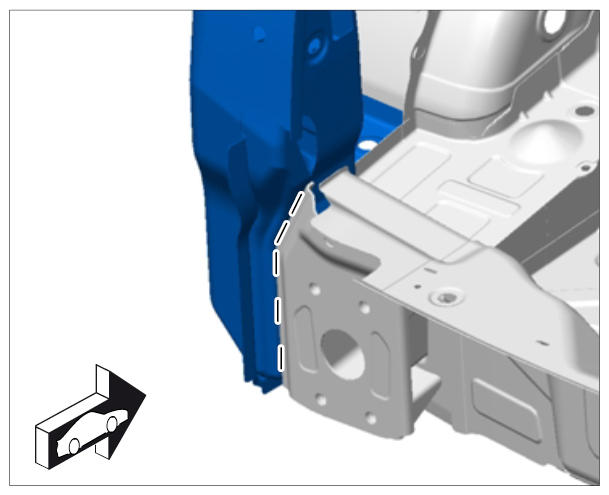

Fig 4: Identifying D-Pillar Reinforcement MIG Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out and grind down spotwelds.

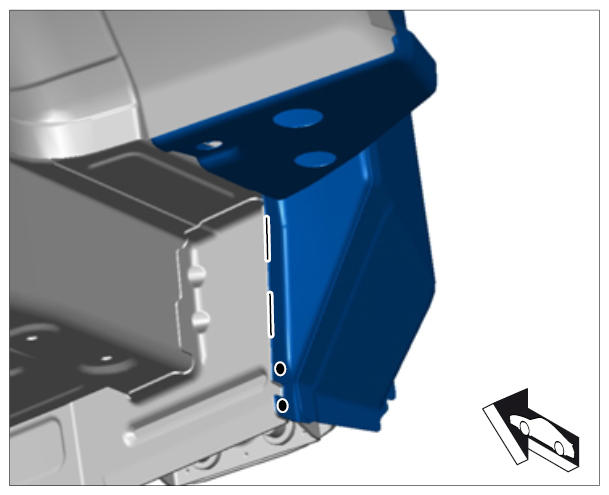

Fig 5: Identifying D-Pillar Reinforcement Spotwelds Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

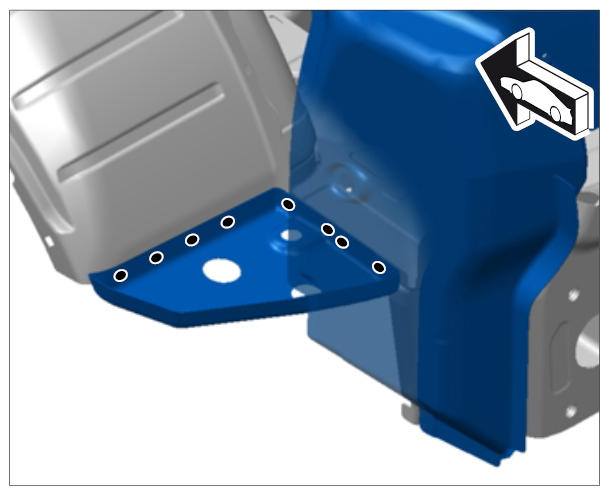

Fig 6: Identifying D-Pillar Reinforcement Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 9.1. Drill out spotwelds.
2. 9.2. Grind down MIG seams.
Drill out spotwelds.

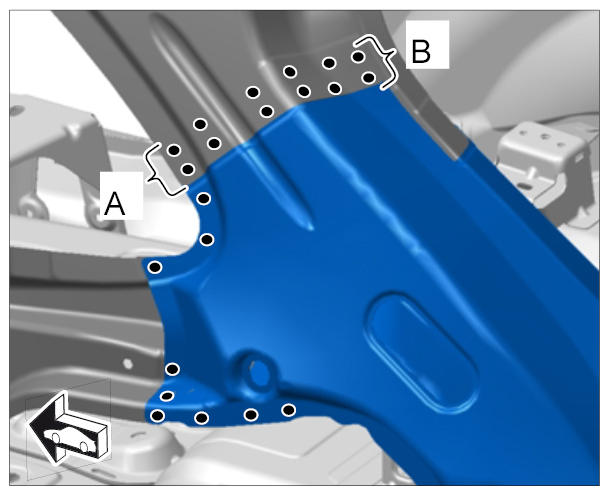

Fig 7: Identifying D-Pillar Reinforcement Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

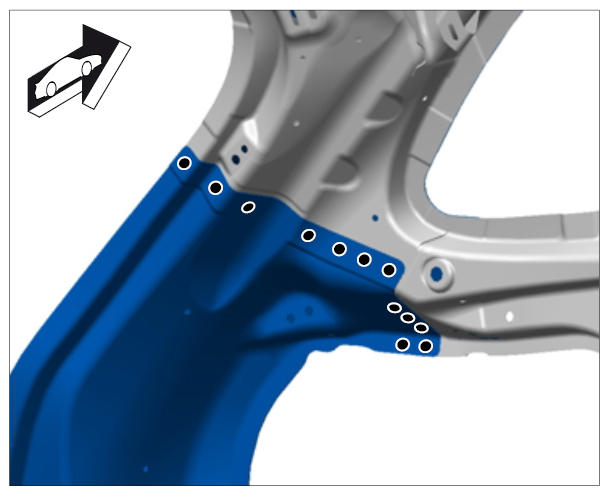

Fig 8: Identifying D-Pillar Reinforcement Heat Up Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove D-pillar reinforcement.
