Installing D-Pillar Reinforcement (Section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply adhesive.

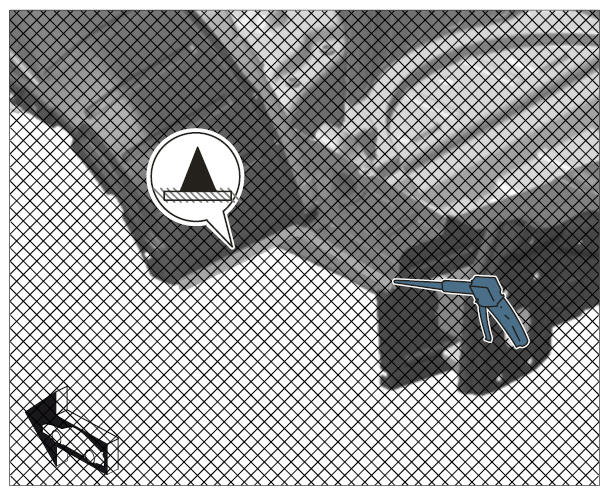

    Fig 1: Applying Adhesive To D-Pillar Reinforcement
    G09938973Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Evenly apply adhesive to the marked areas.

      Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

  2. Fit and secure inner D-pillar reinforcement together with D-pillar corner piece and D-pillar corner reinforcement.
  3. Resistance spot-weld D-pillar reinforcement.

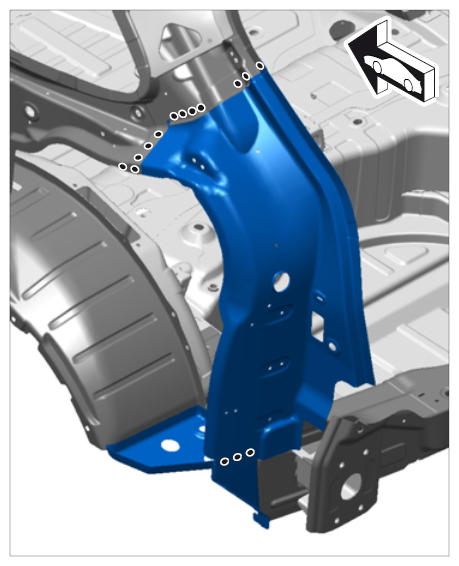

    Fig 2: Identifying Resistance Spot-Weld D-Pillar Reinforcement
    G09938974Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Resistance spot-weld D-pillar reinforcement.

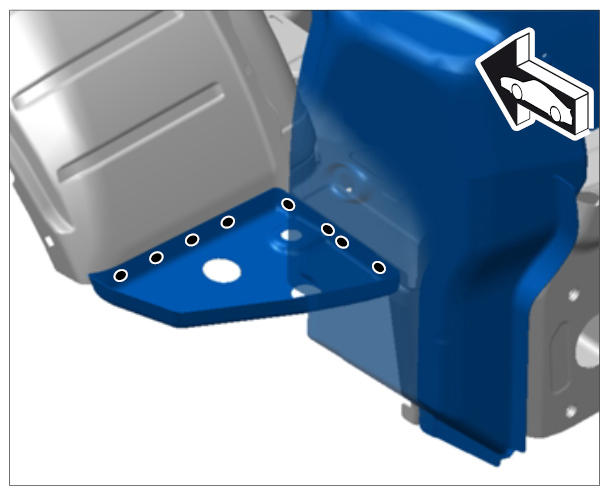

    Fig 3: Identifying Resistance Spot-Weld D-Pillar Reinforcement
    G09938975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Evenly apply adhesive to the marked areas.
    Fig 4: Applying Adhesive To D-Pillar Reinforcement Marked Areas
    G09938976Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Resistance spot-weld D-pillar reinforcement.

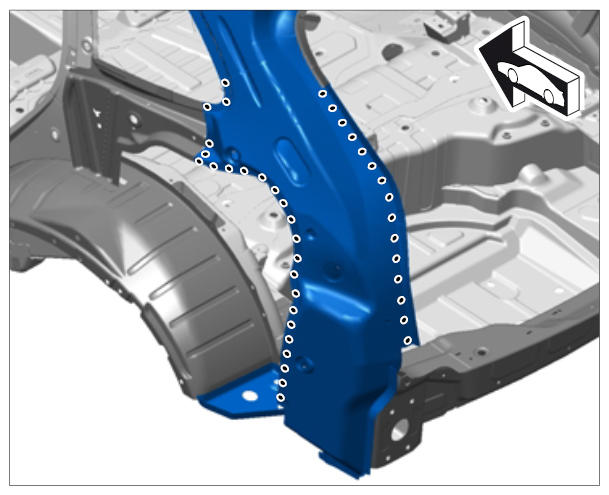

    Fig 5: Identifying Resistance Spot-Weld D-Pillar Reinforcement
    G09938977Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Plug-weld D-pillar reinforcement using inert gas.

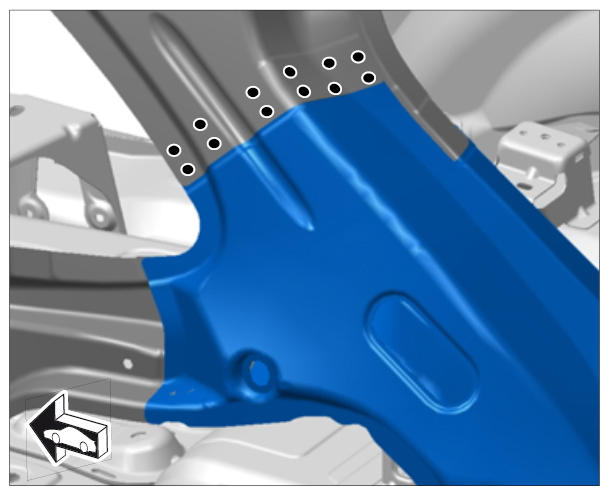

    Fig 6: Identifying Plug-Weld D-Pillar Reinforcement
    G09938978Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Weld in D-pillar reinforcement.

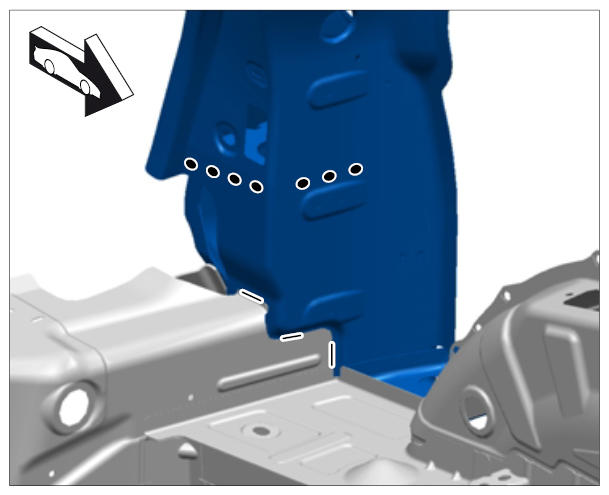

    Fig 7: Identifying Weld In D-Pillar Reinforcement
    G09938979Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 8.1. Plug-weld D-pillar reinforcement using inert gas.
    2. 8.2. Spot-weld D-pillar reinforcement using inert gas.
  9. Spot-weld D-pillar reinforcement using inert gas.

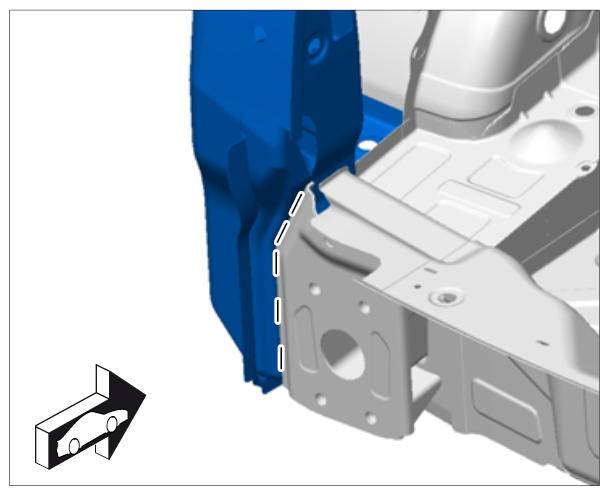

    Fig 8: Identifying Spot-Weld D-Pillar Reinforcement
    G09938980Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Weld in lower D-pillar corner reinforcement.

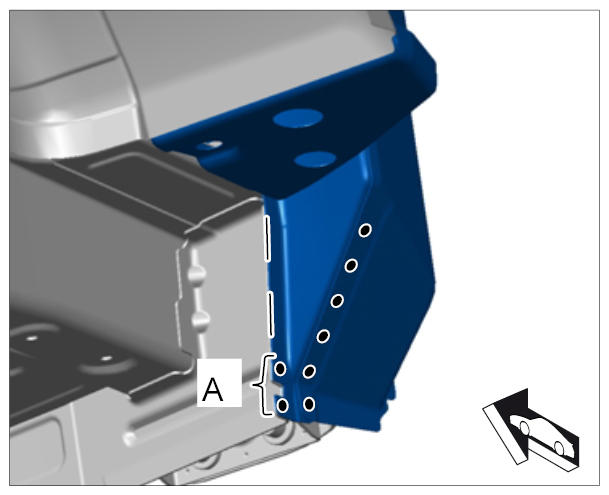

    Fig 9: Identifying Weld In Lower D-Pillar Corner Reinforcement
    G09938981Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 10.1. Resistance spot-weld lower D-pillar corner reinforcement in the area -A-  .
    2. 10.2. Plug-weld lower D-pillar corner reinforcement using inert gas.
    3. 10.3. Spot-weld lower D-pillar corner reinforcement using inert gas.
  11. Weld in gusset piece.

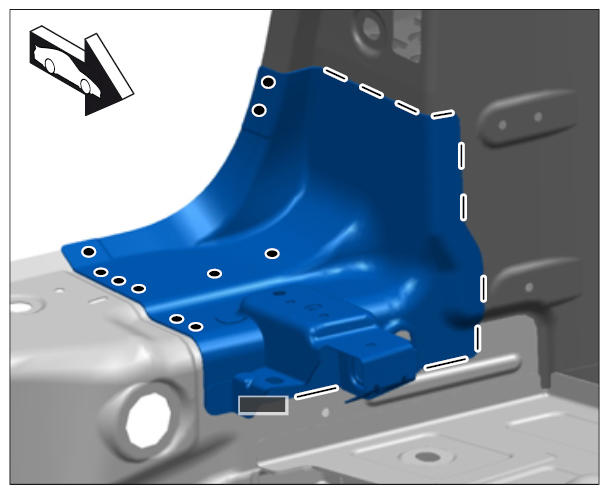

    Fig 10: Identifying Weld In Gusset Plate
    G09938982Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 11.1. Resistance spot-weld gusset piece.
    2. 11.2. Spot-weld gusset piece using inert gas.
  12. Fill D-pillar reinforcement with foam.

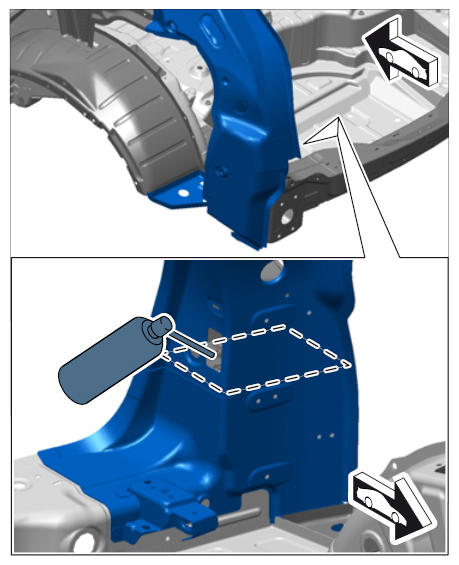

    Fig 11: Filling D-Pillar Reinforcement With Foam
    G09938983Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 12.1. Fill D-pillar reinforcement with foam from the inside in the marked area. → 5X00IN PROCESSING BODY FOAM FILLER
  13. Install rear side section. → 535555 REPLACING REAR SIDE SECTION  - section on "Installing"
  14. Install rear closing panel. → 530555 REPLACING REAR CLOSING PANEL  - section on "Installing"
