Installing C-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply adhesive.

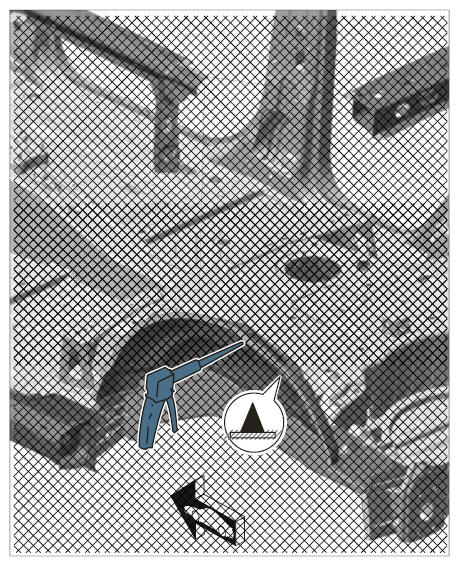

    Fig 1: Applying Adhesive To C-Pillar Reinforcement
    G09938865Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Evenly apply adhesive to the marked areas.

      Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

  2. Fit and secure C-pillar reinforcement.
  3. Weld in C-pillar reinforcement.

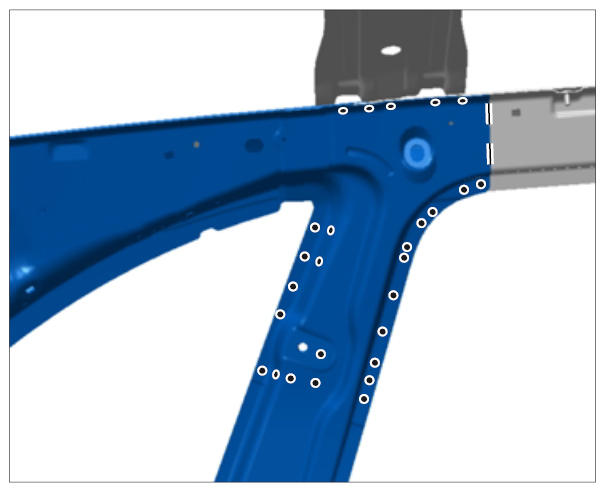

    Fig 2: Identifying Weld In C-Pillar Reinforcement
    G09938866Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Resistance spot-weld C-pillar reinforcement.
    2. 3.2. Spot-weld C-pillar reinforcement using inert gas.
  4. Resistance spot-weld C-pillar reinforcement.

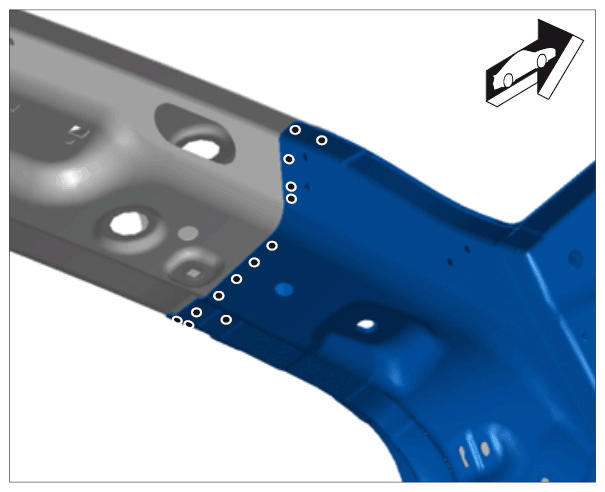

    Fig 3: Identifying Resistance Spot-Weld C-Pillar Reinforcement
    G09938867Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Resistance spot-weld C-pillar reinforcement.

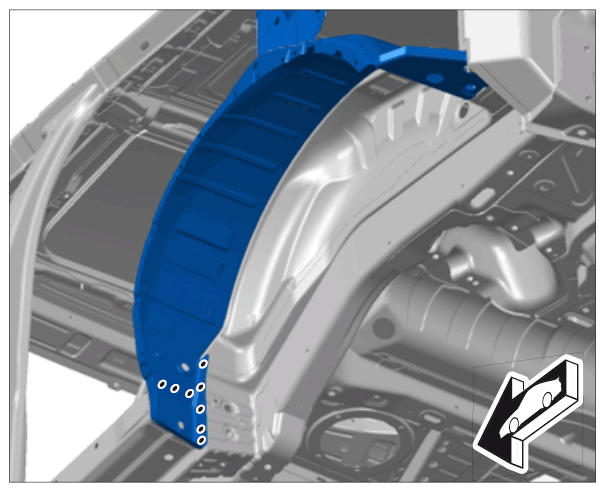

    Fig 4: Identifying Resistance Spot-Weld C-Pillar Reinforcement
    G09938868Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Resistance spot-weld C-pillar reinforcement.

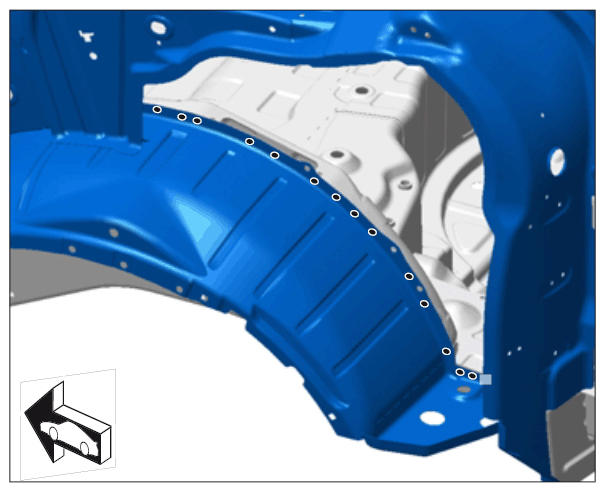

    Fig 5: Identifying Resistance Spot-Weld C-Pillar Reinforcement
    G09938869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Spot-weld C-pillar reinforcement using inert gas.

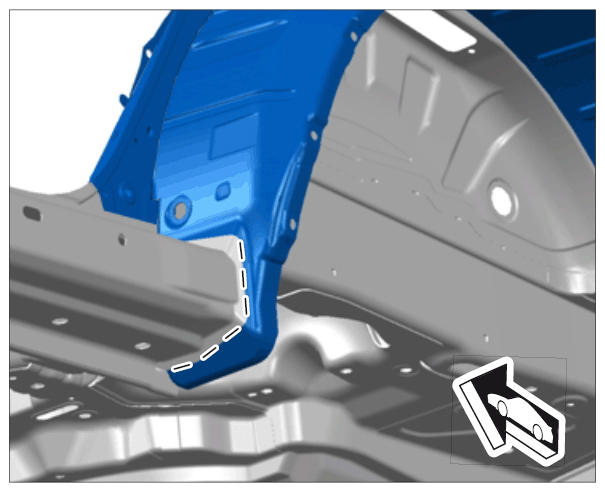

    Fig 6: Identifying Spot-Weld C-Pillar Reinforcement
    G09938870Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Resistance spot-weld C-pillar reinforcement.

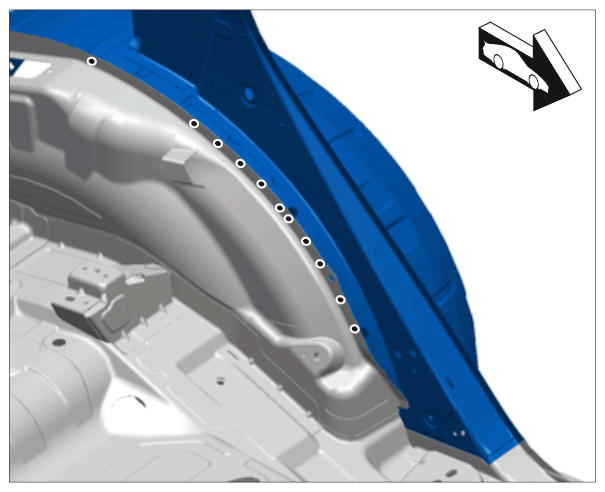

    Fig 7: Identifying Resistance Spot-Weld C-Pillar Reinforcement
    G09938871Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Weld in C-pillar reinforcement.

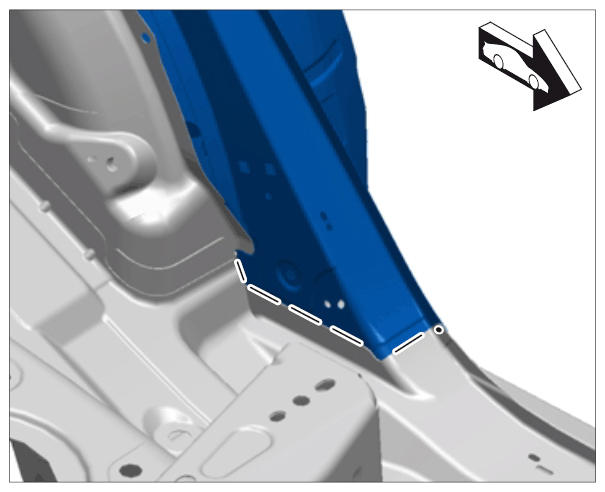

    Fig 8: Identifying Weld In C-Pillar Reinforcement
    G09938872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 9.1. Resistance spot-weld C-pillar reinforcement.
    2. 9.2. Spot-weld C-pillar reinforcement using inert gas.
  10. Install outer D-pillar reinforcement. → 533055 REPLACING REINFORCEMENT FOR D-PILLAR  - chapter on "Installing"
  11. Install rear side section (roof removed). → 535555 REPLACING REAR SIDE SECTION (ROOF REMOVED)  - section on "Installing"
  12. Install outer side member (rear section). → 514555 REPLACING OUTER SIDE MEMBER - section on "Installing"
