Removing C-Pillar Reinforcement (Section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear side section. → 535555 REPLACING REAR SIDE SECTION - section on "Removing"
Remove outer side member (rear section). → 514555 REPLACING OUTER SIDE MEMBER - section on "Removing"
Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.
Mark and make cut. → Distance to hole (center): 65 mm

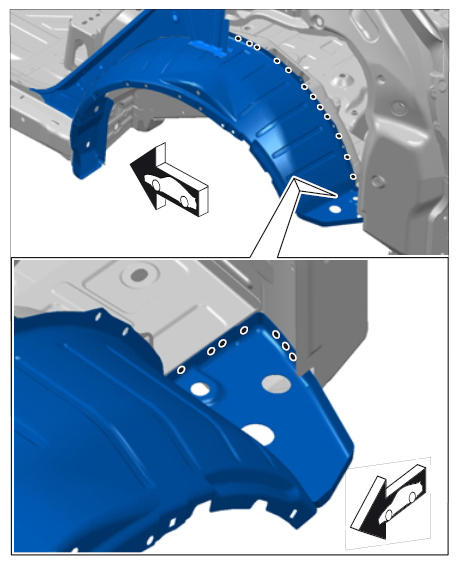

Fig 1: C-Pillar Reinforcement Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out spotweld A through two plate thicknesses.
Drill out spotwelds using Spotweld Drill .

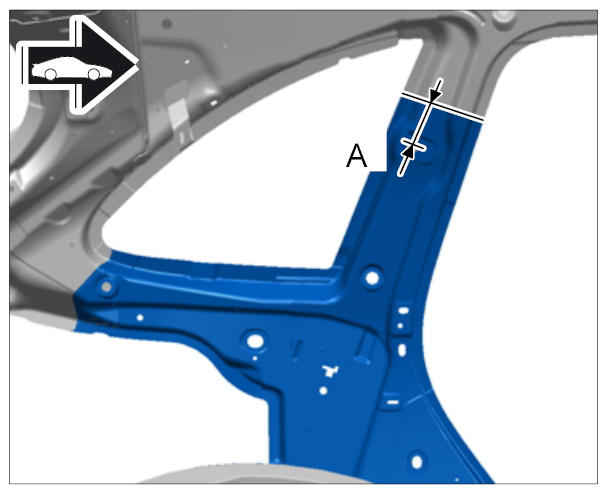

Fig 2: Identifying C-Pillar Reinforcement Drill Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

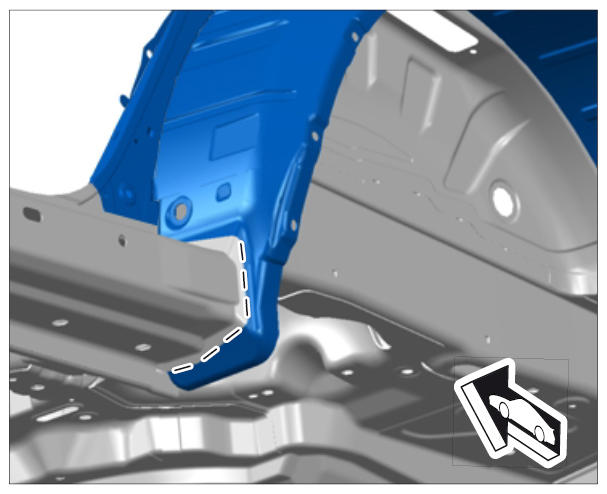

Fig 3: Identifying C-Pillar Reinforcement Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Drill out spotweld from outside.
2. 5.2. Grind down MIG seams.
Grind down spotwelds from outside.

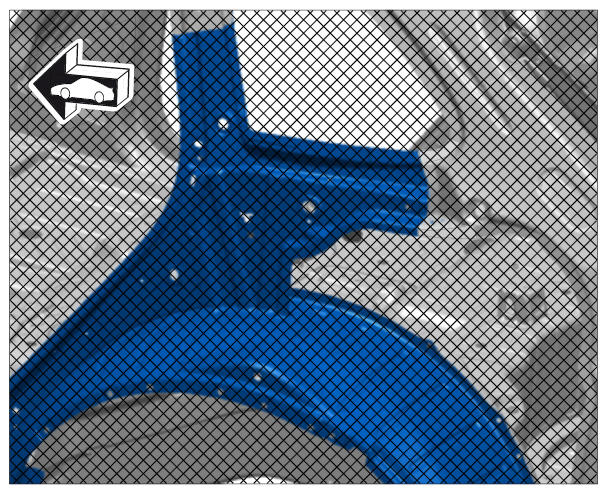

Fig 4: Identifying C-Pillar Reinforcement MIG Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down MIG seams.

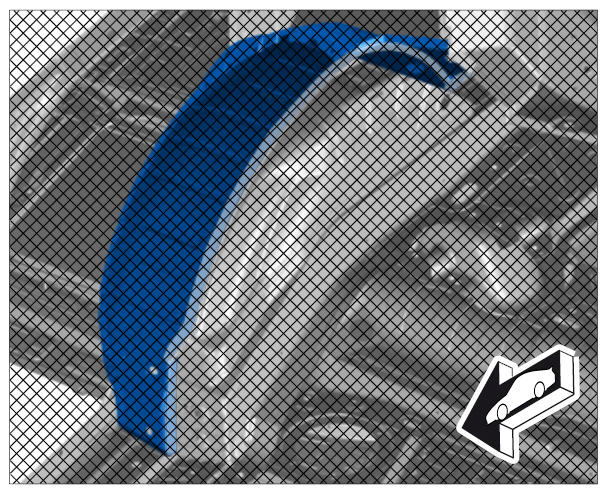

Fig 5: Identifying C-Pillar Reinforcement MIG Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind down and drill out spotwelds.

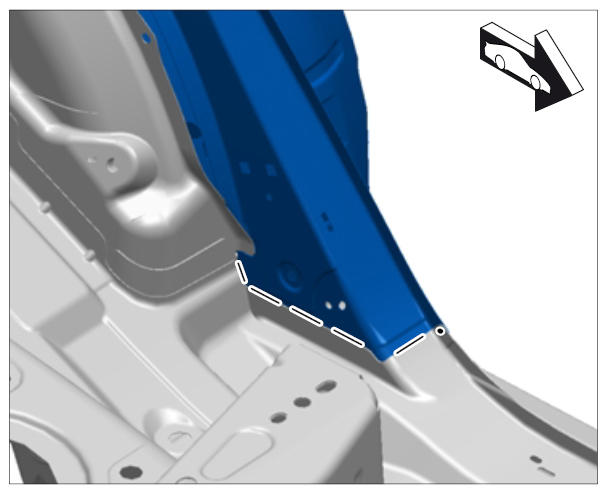

Fig 6: Identifying C-Pillar Reinforcement Drill Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out spotwelds.

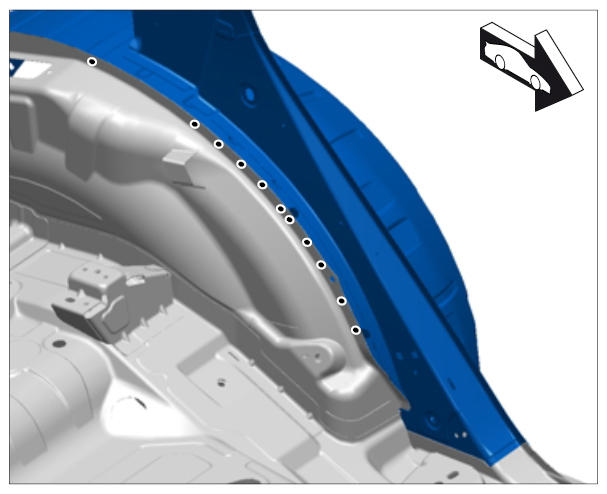

Fig 7: Identifying C-Pillar Reinforcement Drill Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

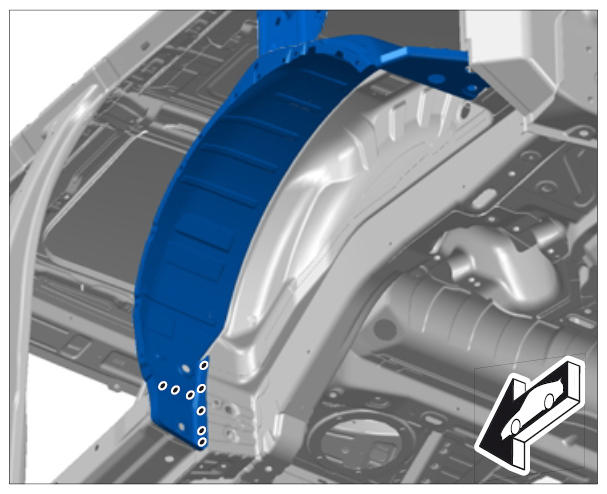

Fig 8: Identifying C-Pillar Reinforcement Heat Up Connection Areas (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 9: Identifying C-Pillar Reinforcement Heat Up Connection Areas (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove C-pillar reinforcement.
