Installing C-Pillar Reinforcement (Section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply adhesive.

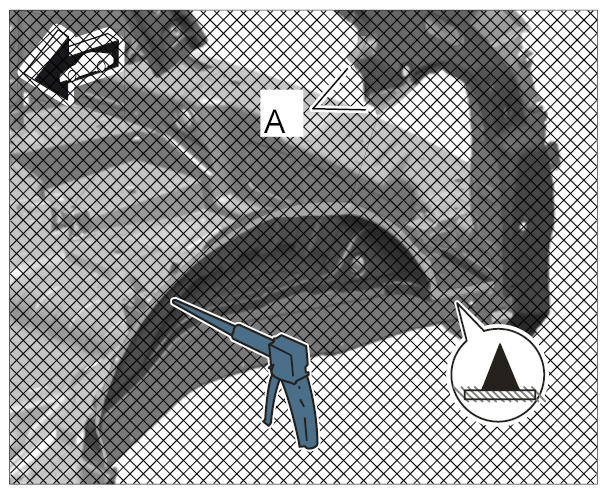

    Fig 1: Applying Adhesive To C-Pillar Reinforcement
    G09938896Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Evenly apply adhesive to the marked areas (-A-  on the inside).

      Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

  2. Fit and secure C-pillar reinforcement.
  3. Weld in C-pillar reinforcement.

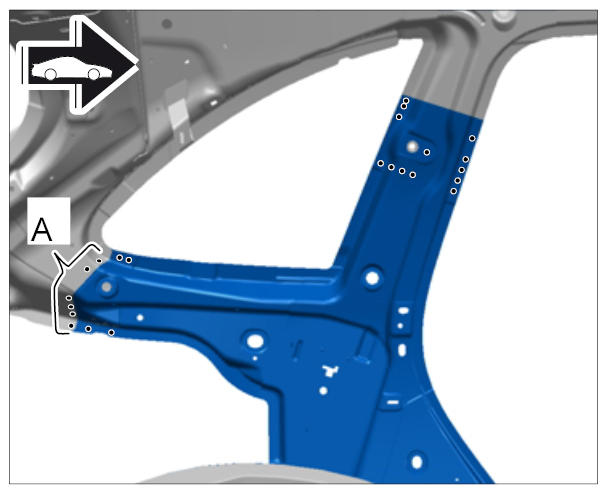

    Fig 2: Identifying Weld In C-Pillar Reinforcement
    G09938897Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Resistance spot-weld C-pillar reinforcement.
    2. 3.2. Plug-weld C-pillar reinforcement in the area -A-  using inert gas.
  4. Apply a full weld to C-pillar reinforcement using inert gas.

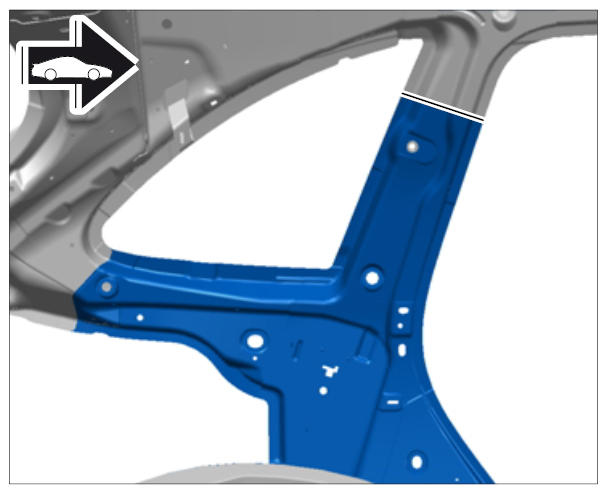

    Fig 3: Identifying Plug-Weld C-Pillar Reinforcement Area
    G09938898Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Resistance spot-weld C-pillar reinforcement.

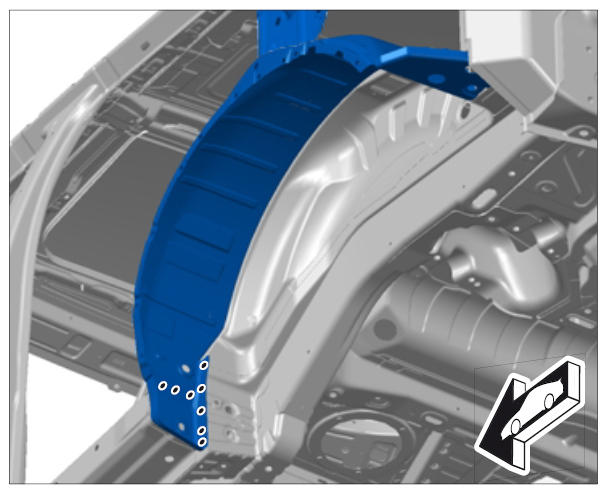

    Fig 4: Identifying Resistance Spot-Weld C-Pillar Reinforcement
    G09938899Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Weld in C-pillar reinforcement.

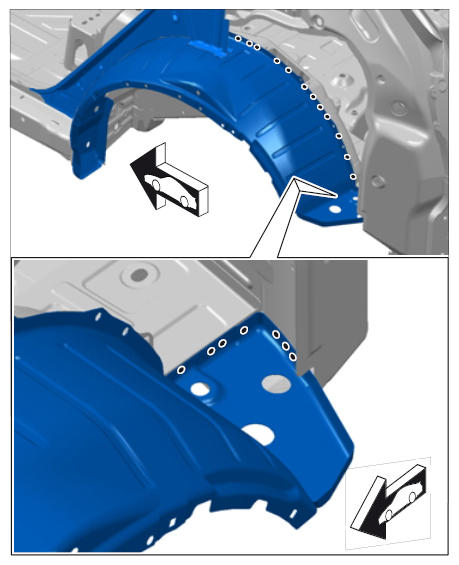

    Fig 5: Identifying Weld In C-Pillar Reinforcement
    G09938900Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 6.1. Resistance spot-weld C-pillar reinforcement.
    2. 6.2. Plug-weld C-pillar reinforcement using inert gas.
  7. Spot-weld C-pillar reinforcement using inert gas.

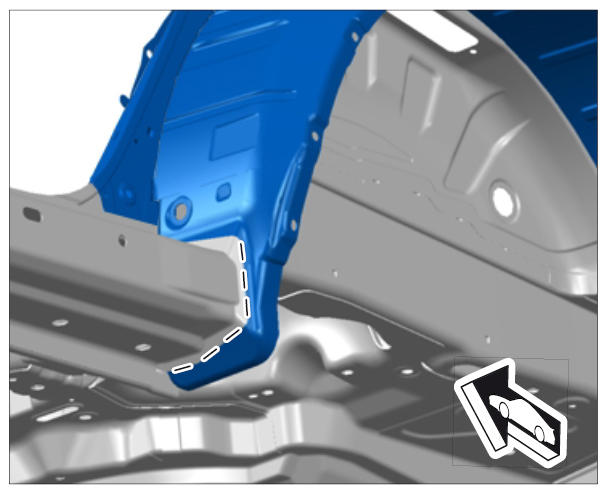

    Fig 6: Identifying Spot-Weld C-Pillar Reinforcement
    G09938901Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Resistance spot-weld C-pillar reinforcement.

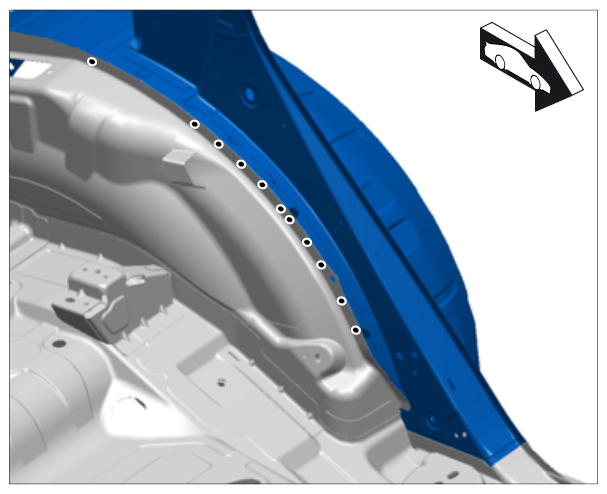

    Fig 7: Identifying Resistance Spot-Weld C-Pillar Reinforcement
    G09938902Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Weld in C-pillar reinforcement.

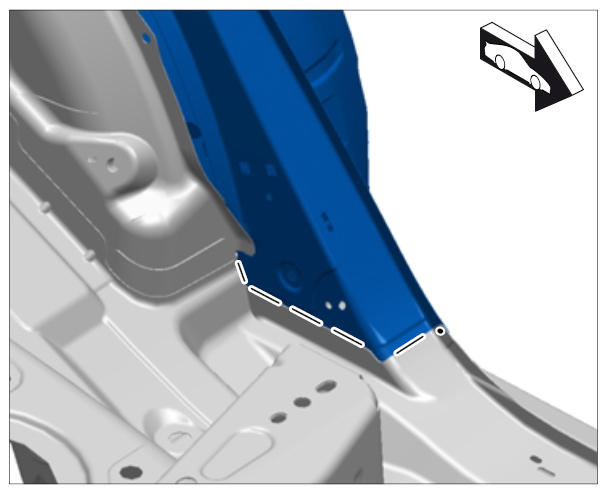

    Fig 8: Identifying Weld In C-Pillar Reinforcement
    G09938903Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 9.1. Resistance spot-weld C-pillar reinforcement.
    2. 9.2. Spot-weld C-pillar reinforcement using inert gas.
  10. Install rear side section. → 535555 REPLACING REAR SIDE SECTION  - section on "Installing"
  11. Install outer side member (rear section). → 514555 REPLACING OUTER SIDE MEMBER - section on "Installing"
