Removing Top Inner Rear Axle Cross Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Grind down MIG seams.

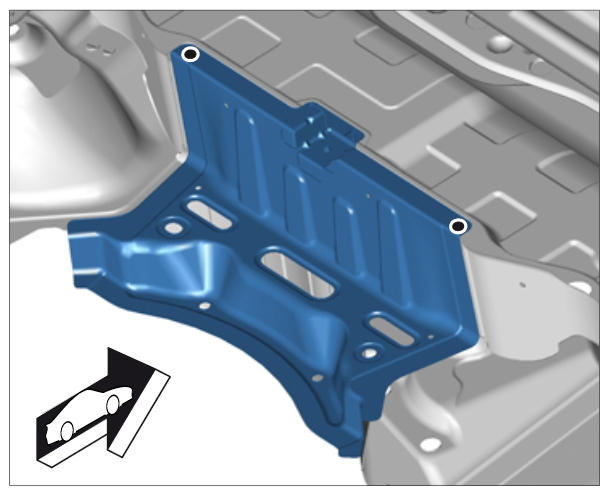

Fig 1: Identifying Rear Trunk Floor Panel MIG Seams
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out spotwelds using Spotweld Drill .

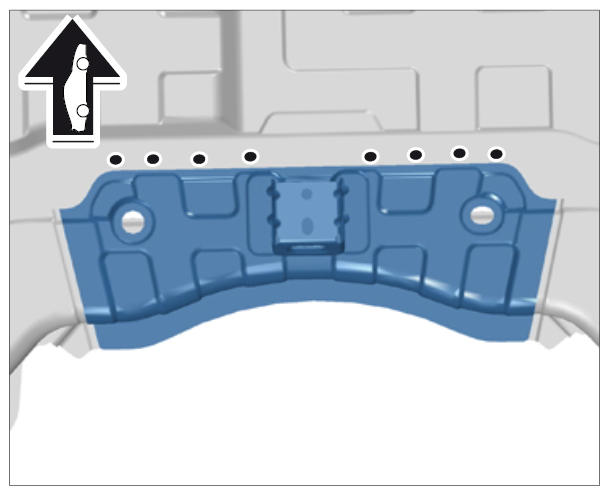

Fig 2: Identifying Rear Trunk Floor Panel Drill Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out spotwelds through two plate thicknesses.

Fig 3: Identifying Rear Trunk Floor Panel Drill Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill out spotwelds.

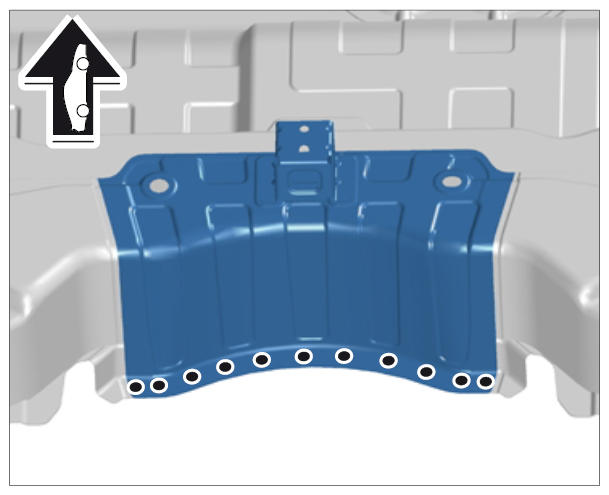

Fig 4: Identifying Rear Trunk Floor Panel Drill Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Heat up connection areas using a hot-air gun.

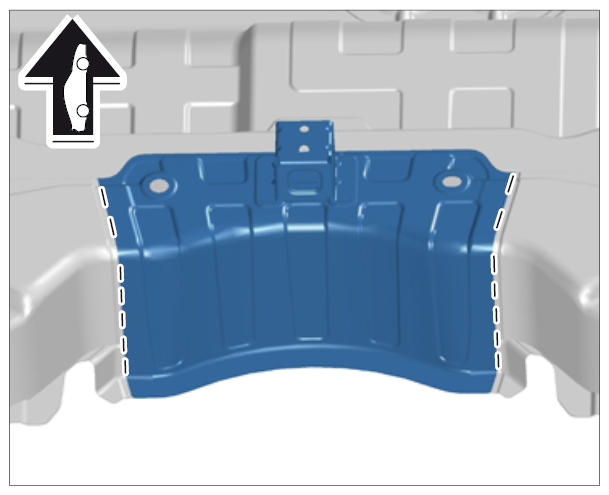

Fig 5: Identifying Rear Trunk Floor Panel Heat Up Connection Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove top inner rear axle cross member.
