Removing Spare-Wheel Well And Side Floor Section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

Remove lock carrier. → 530955 REPLACING LOCK CARRIER - section on "Removing"
Separate spare-wheel well and side floor section using rough cuts.

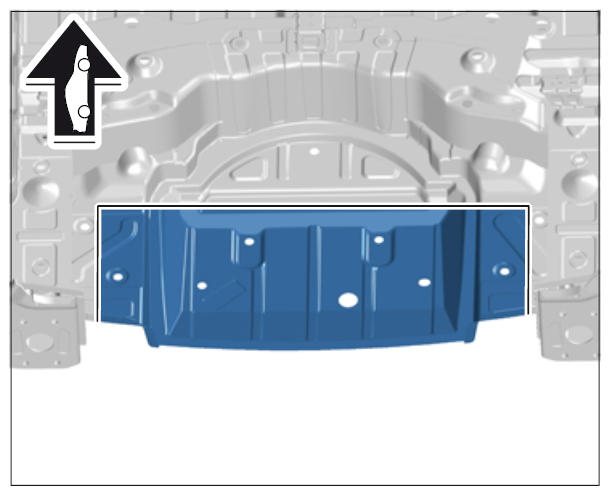

Fig 1: Rear Trunk Floor Panel Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detaching right and left floor section.

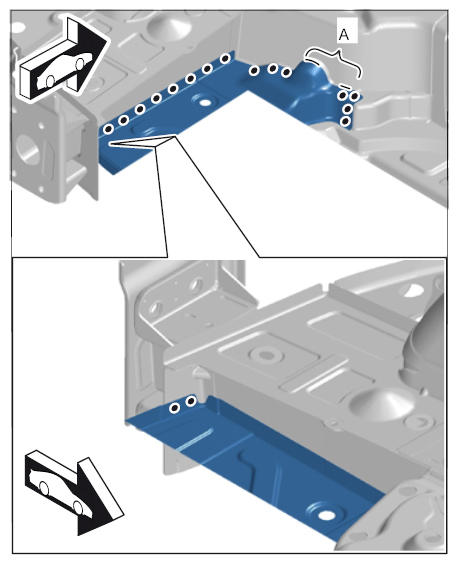

Fig 2: Identifying Rear Trunk Floor Panel (Right And Left Floor Section)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Drill out spotwelds using Spotweld Drill .
2. 3.2. Grind down MIG seams in area -A- .
3. 3.3. Remove right and left floor section.
Detach spare-wheel well.

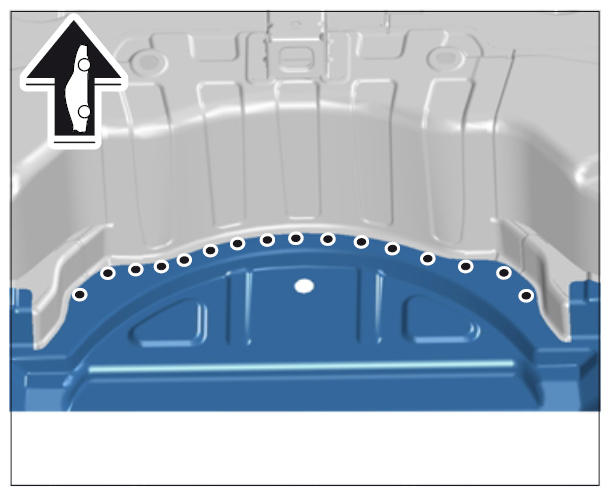

Fig 3: Removing Rear Trunk Floor Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Drill out spotwelds.
2. 4.2. Heat up connection areas using a hot-air gun.

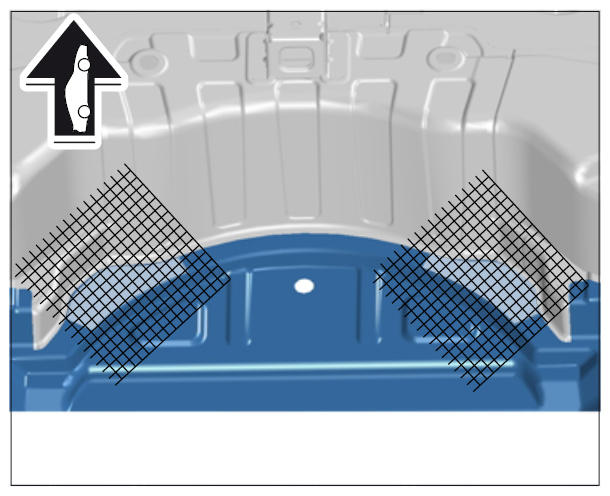

  Fig 4: Identifying Rear Trunk Floor Panel Heat Connection Areas
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Remove spare-wheel well.
