Preparing Connection Areas Of The Body For Installing Rear Trunk Floor Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean welding and sealing areas.

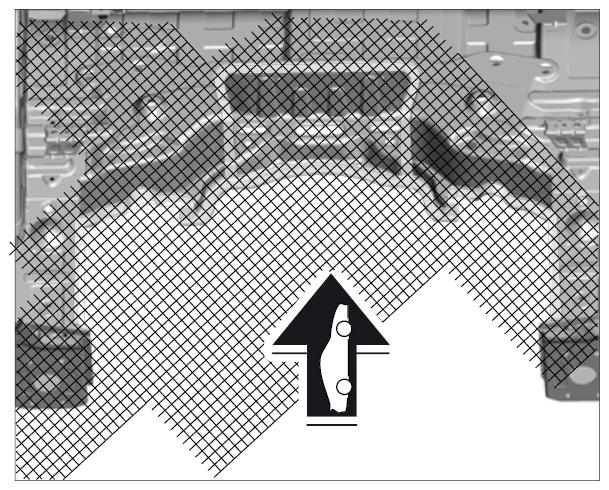

Fig 1: Identifying Connection Areas Of Body For Installing Rear Trunk Floor Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

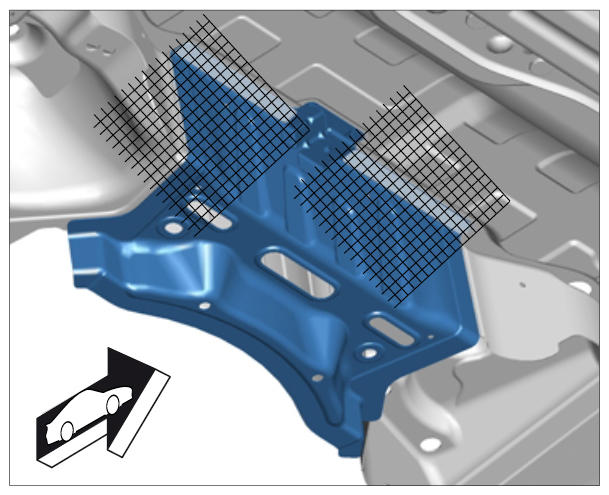

Fig 2: Identifying Body Welding And Sealing Areas
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Clean the body connecting flanges of underbody protection, adhesive residue and paint in the marked areas.
2. 1.2. Grind the connecting flanges until bare on both sides.
Coat all spot-weld flange areas with zinc powder paint.
