Installing Top Inner Rear Axle Cross Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure the top inner rear axle cross member.
Resistance spot-weld the top inner rear axle cross member.

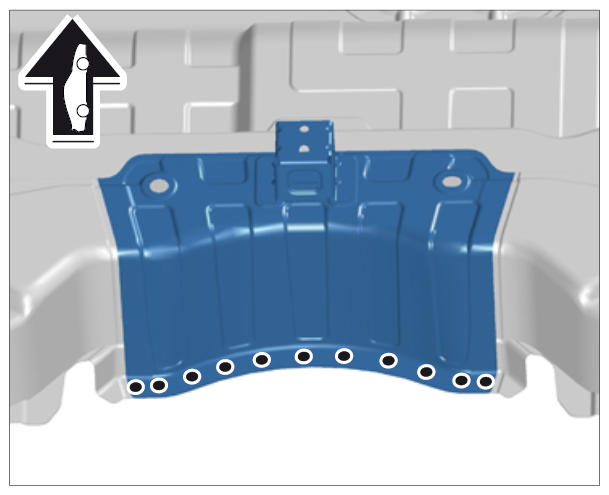

Fig 1: Identifying Resistance Spot-Weld Top Inner Rear Axle Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Weld in the top inner rear axle cross member.

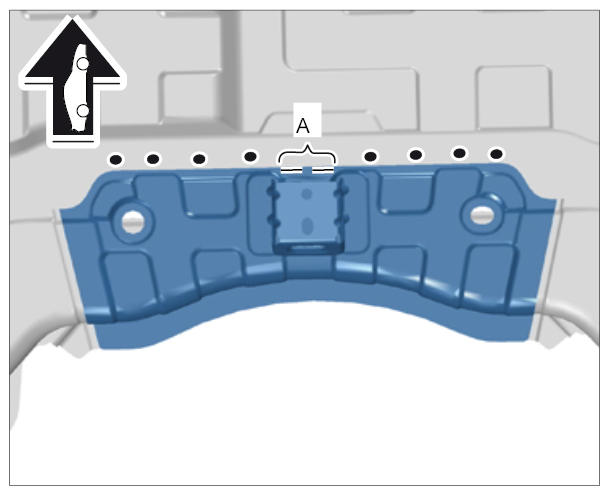

Fig 2: Identifying Weld In Top Inner Rear Axle Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Plug-weld the top inner rear axle cross member through two plate thicknesses using inert gas.
2. 3.2. Apply a welded seam to the top inner rear axle cross member in area -A- using inert gas.
Plug-weld the top inner rear axle cross member using inert gas.
