Installing Spare-Wheel Well And Side Floor Section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure spare-wheel well and side floor section.
Weld in the right and left floor section.

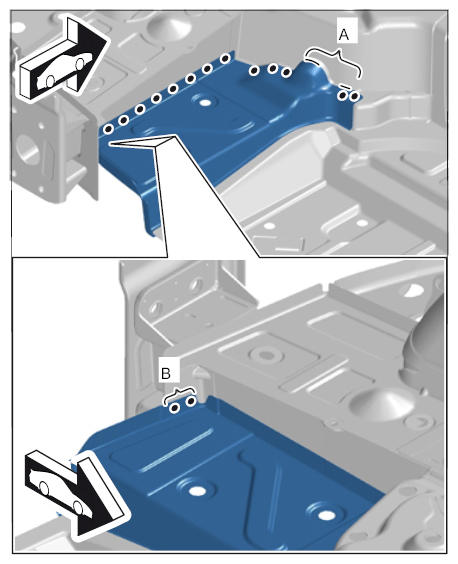

Fig 1: Identifying Weld In Right And Left Floor Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Plug-weld the floor section using inert gas.
2. 2.2. Apply a welded seam to the floor section in area -A- using inert gas.
3. 2.3. Resistance spot-weld the floor section in area -B- .
Weld in the spare-wheel well.

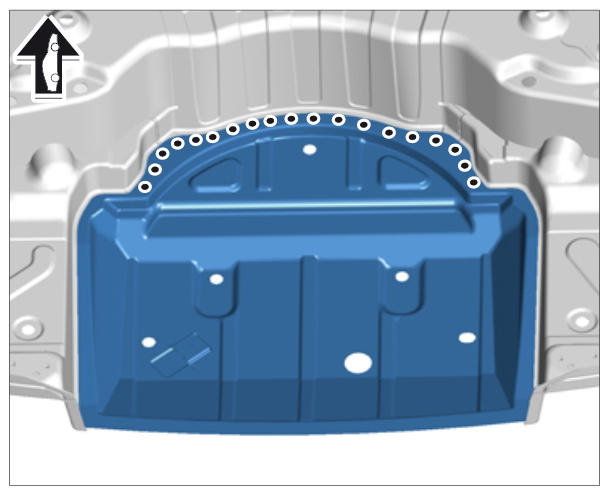

Fig 2: Identifying Resistance Spot-Weld Floor Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Resistance spot-weld the spare-wheel well.
2. 3.2. Plug-weld the spare-wheel well using inert gas.

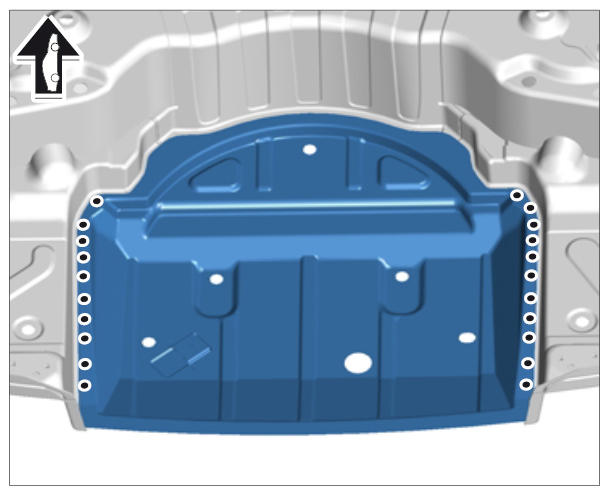

  Fig 3: Identifying Resistance Spot-Weld On Rear Trunk Floor Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lock carrier. → 530955 REPLACING LOCK CARRIER - section on "Installing"
