Removing Lock Carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

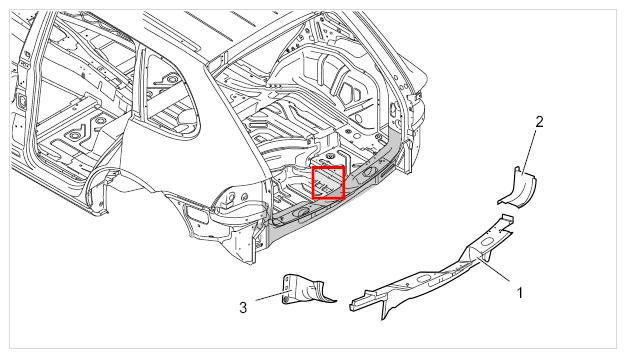

Fig 1: Lock Carrier Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock carrier
D-pillar gusset plate, right
D-pillar gusset plate, left

Remove end plate. → REMOVING CLOSING PANEL

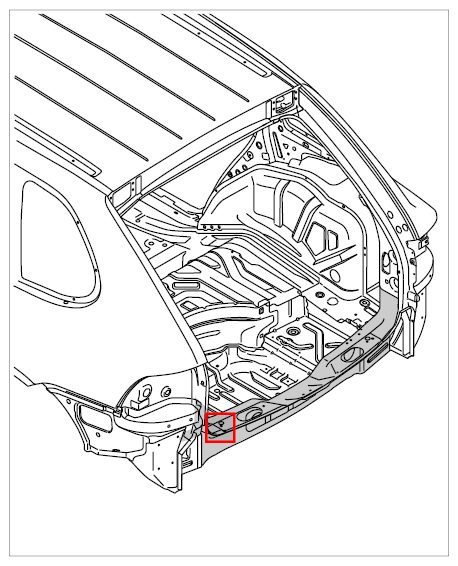

Fig 2: Overview Of Lock Carrier From Inside
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut off D-pillar gusset plates.
1. 2.1. Mill off welded joints on the D-pillar gusset plates using the spotweld cutter (areas -A- ).

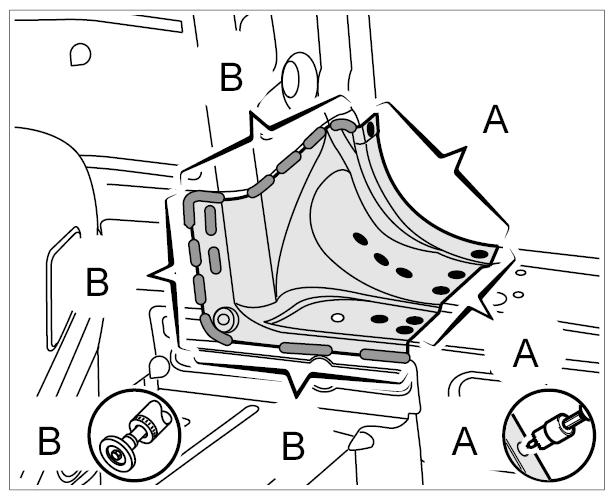

  Fig 3: Identifying Welded Joints On Left D-Pillar Gusset Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

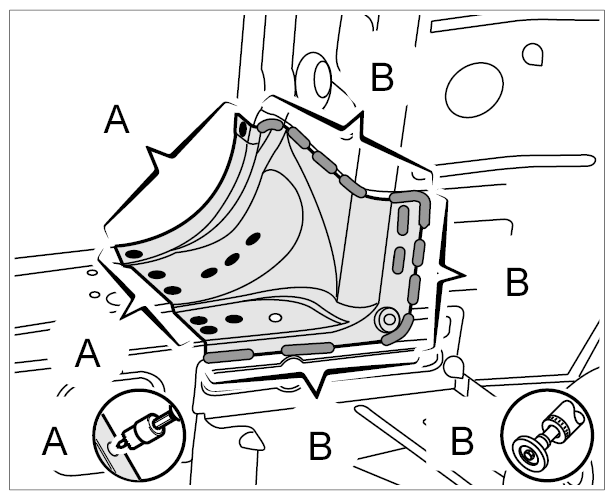

  Fig 4: Identifying Welded Joints On Right D-Pillar Gusset Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Grind off MIG seams on the D-pillar gusset plates using a parting grinder (areas -B- ).
Remove D-pillar gusset plates.

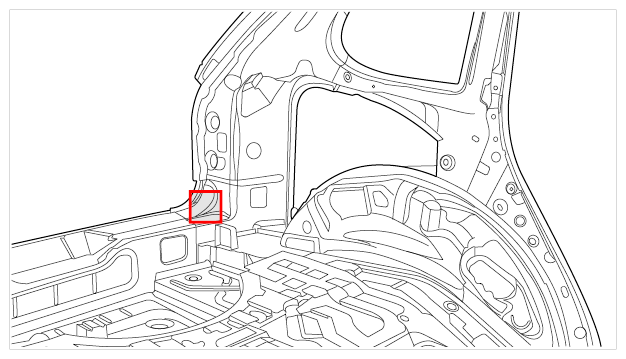

Fig 5: Identifying D-Pillar Gusset Plates Working Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Cut off outer lock carrier.
1. 4.1. Mill off welded joints on the lock carrier using the spotweld cutter (areas -C- ).

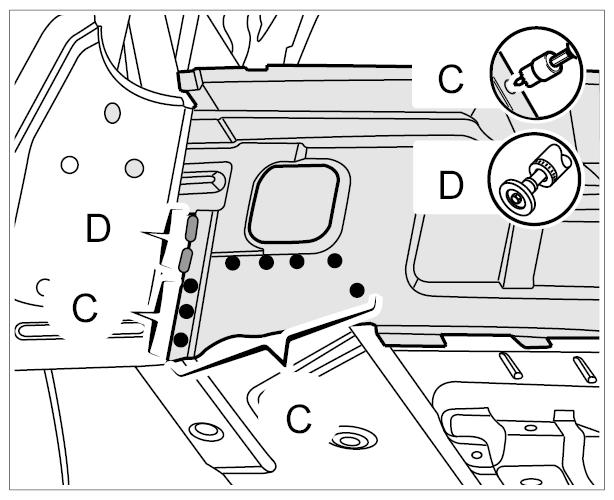

  Fig 6: Identifying Mill Off Welded Joints On Lock Carrier (Areas C)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Grind off MIG seams on the lock carrier using a parting grinder (area -D- ).
3. 4.3. Mill off welded joints on the lock carrier using the spotweld cutter (area -E- ).

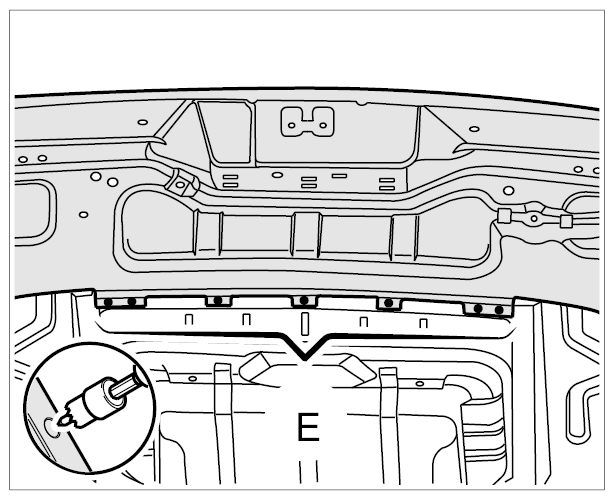

  Fig 7: Identifying Mill Off Welded Joints On Lock Carrier (Areas E)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 4.4. Mill off welded joints on the lock carrier using the spotweld cutter (areas -F- ).

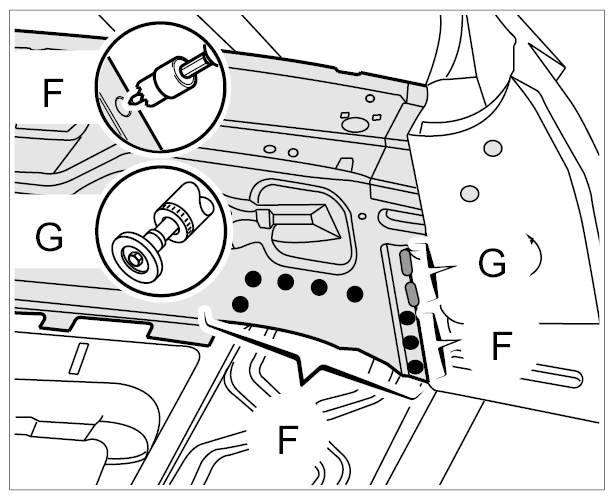

  Fig 8: Identifying Mill Off Welded Joints On Lock Carrier (Areas F)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 4.5. Grind off MIG seams on the lock carrier using a parting grinder (area -G- ).

  Fig 9: Identifying MIG Seams On Lock Carrier
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

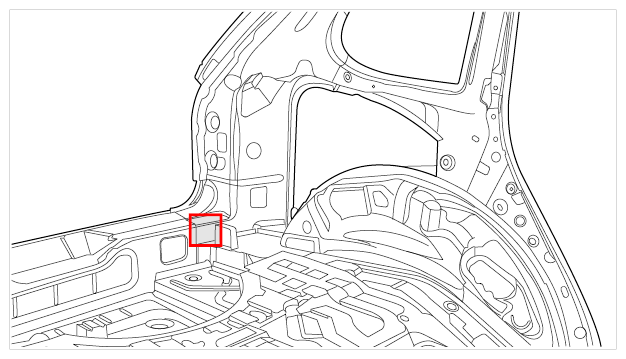

Cut off inner lock carrier.
1. 5.1. Grind off MIG seams on the lock carrier using a parting grinder (area -H- ).

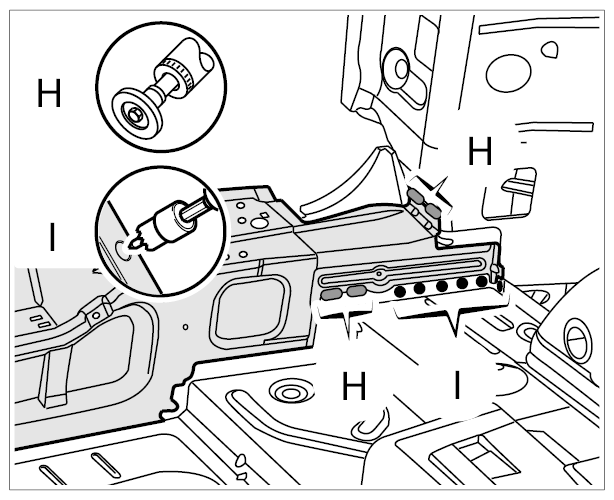

  Fig 10: Grinding Off MIG Seams On Lock Carrier Using Parting Grinder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Mill off welded joints on the lock carrier using the spotweld cutter (area -I- ).
3. 5.3. Grind off MIG seams on the lock carrier using a parting grinder (area -J- ).

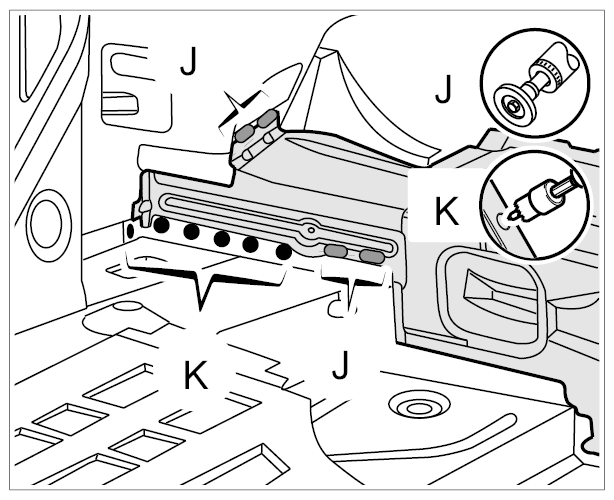

  Fig 11: Grinding Off MIG Seams On Lock Carrier Using Parting Grinder (Area J)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 5.4. Mill off welded joints on the lock carrier using the spotweld cutter (area -K- ).
Remove lock carrier.
