Preparing Connection Areas Of Body For Installing The Lock Carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

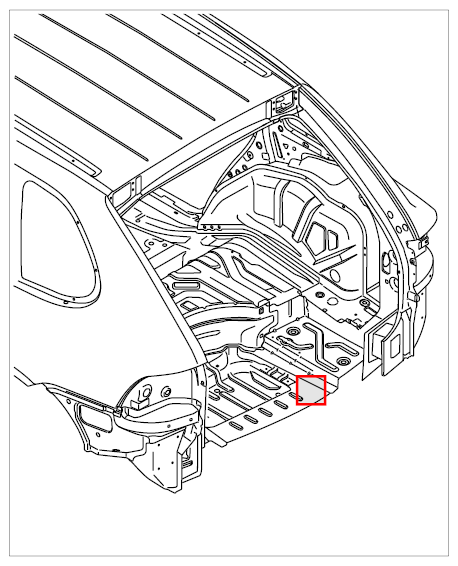

Fig 1: Identifying Connection Areas For Lock Carrier

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Clean undersealing, adhesive residue and paint off the connecting flanges of the body in the marked areas using a hot-air gun or rotary brush. Grind the connecting flanges until bare.

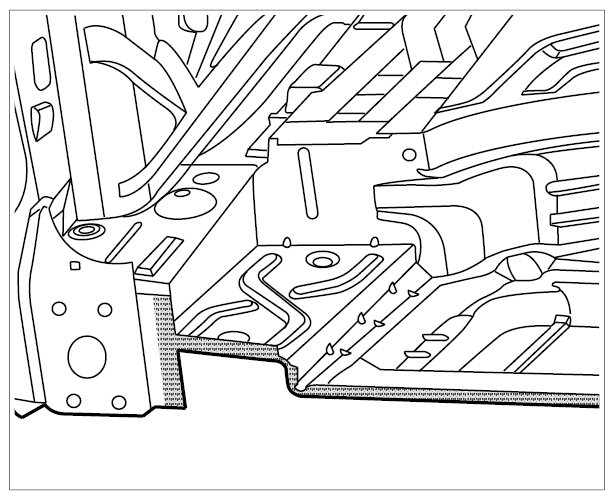

  Fig 2: Identifying Connection Areas On Inner Left Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

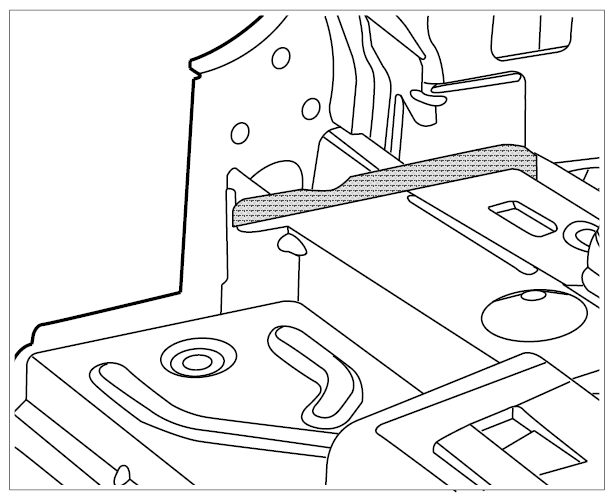

  Fig 3: Identifying Connection Areas On Spare-Wheel Well And On Left Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

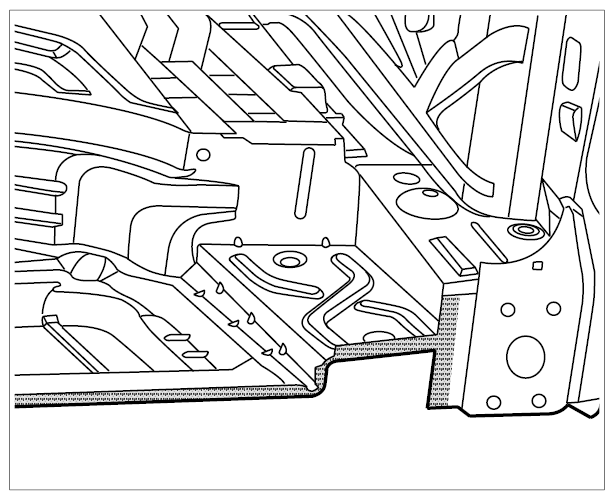

  Fig 4: Identifying Connection Areas On Inner Right Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

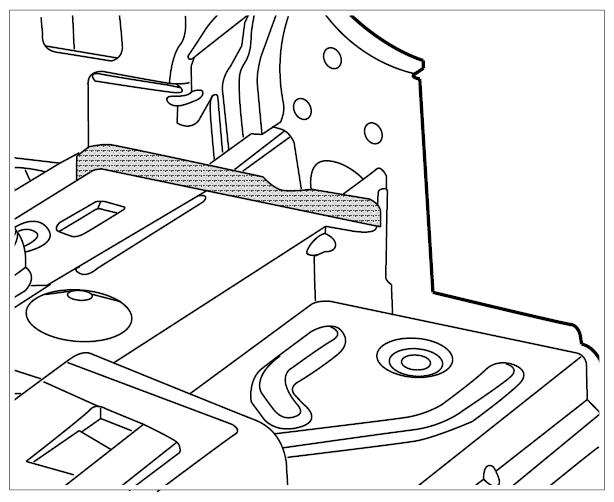

  Fig 5: Identifying Connection Areas On Spare-Wheel Well (Right Side Member)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
