Closing Panel Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

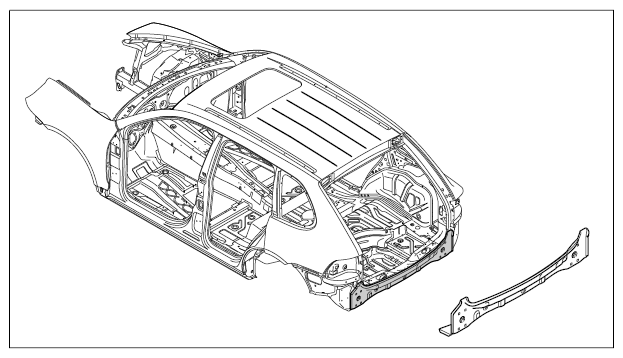

Fig 1: Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

Cut off closing panel.

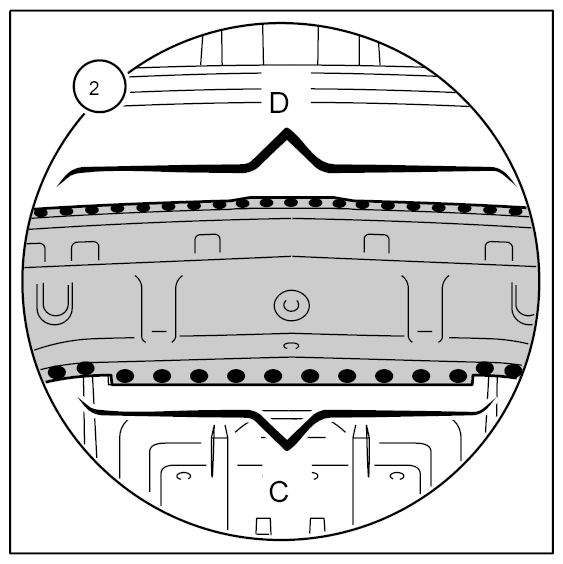

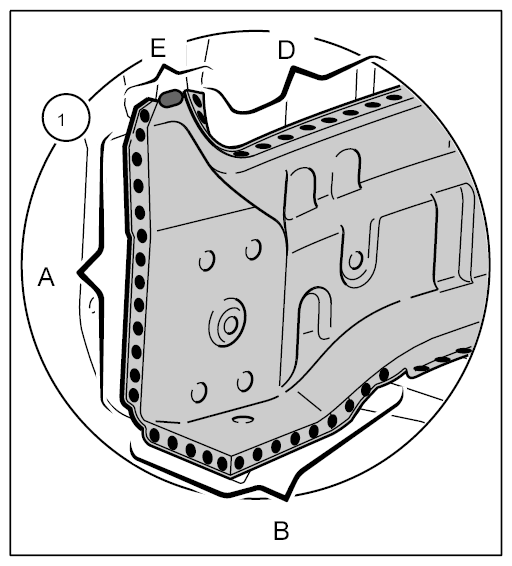

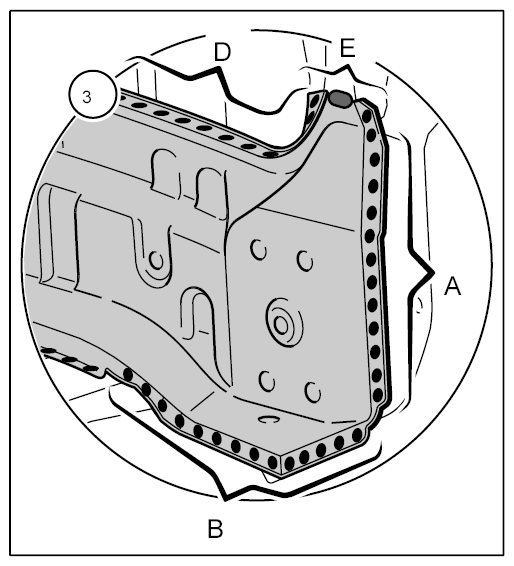

1. 1.1. Cut the welded joint on the closing panel with the spotweld cutter (areas -A, B- and -C, D- ). Cut the MIG seams at the top of the closing panel with a parting grinder (area -E- ).

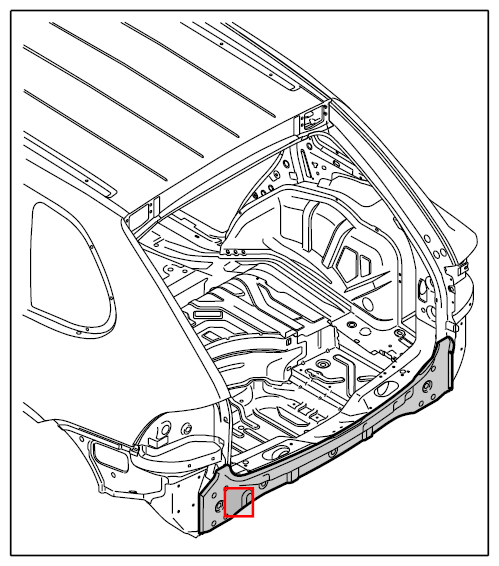

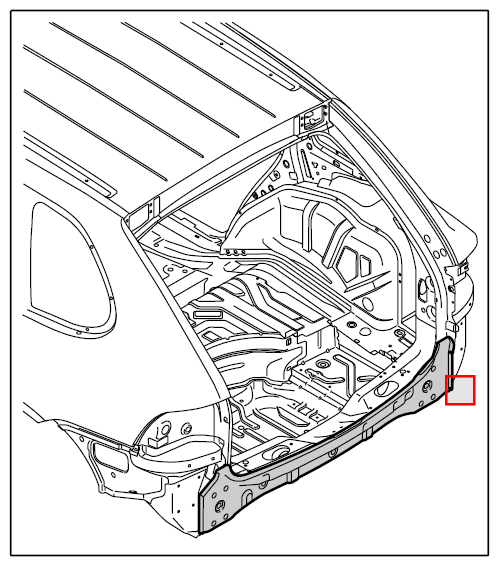

  Fig 2: Identifying Welded Joint On Closing Panel (1 Of 7)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fig 3: Identifying Welded Joint On Closing Panel (2 Of 7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 4: Identifying Welded Joint On Closing Panel (3 Of 7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Identifying Welded Joint On Closing Panel (4 Of 7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Identifying Welded Joint On Closing Panel (5 Of 7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 7: Identifying Welded Joint On Closing Panel (6 Of 7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Identifying Welded Joint On Closing Panel (7 Of 7)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the closing panel.
