Preparing Connection Areas Of Body For Installing The Closing Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

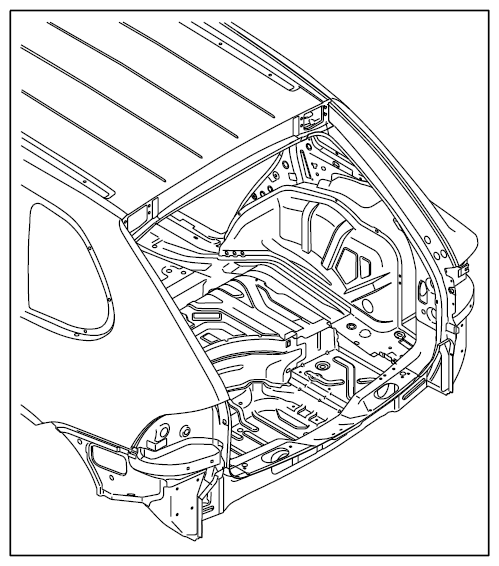

Fig 1: Identifying Closing Panel Connection Areas Of Body

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Clean the body connection flanges of undersealing, adhesive residue and paint in the marked areas using a hot-air gun or rotary brush. Grind the connection flange until bare.

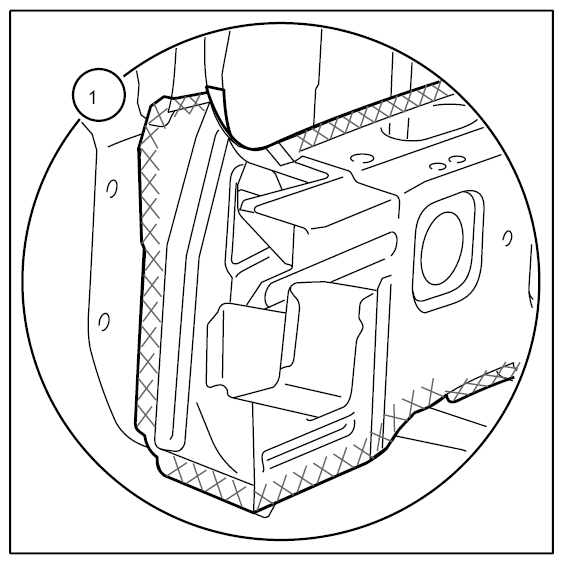

  Fig 2: Identifying Body Connection Welding And Sealing Areas (1 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

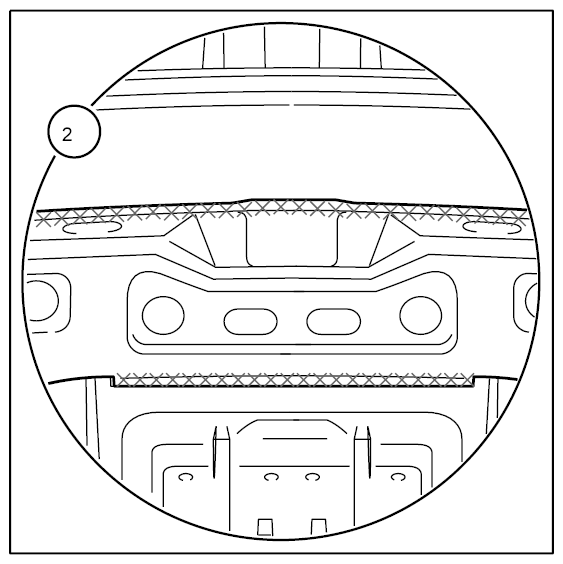

  Fig 3: Identifying Body Connection Welding And Sealing Areas (2 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

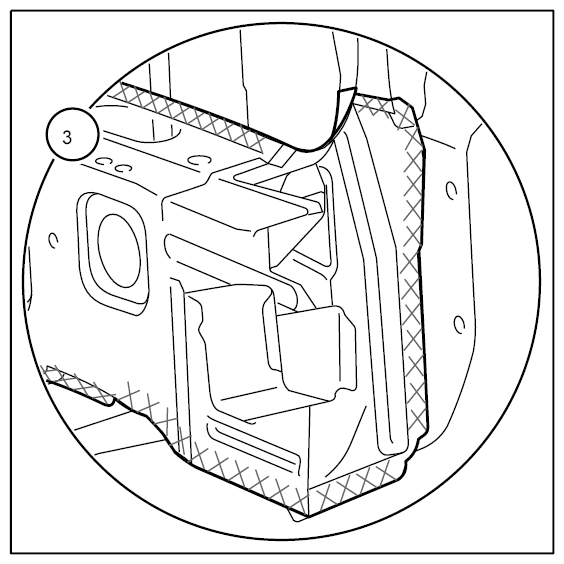

  Fig 4: Identifying Body Connection Welding And Sealing Areas (3 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
