Fitting Closing Panel And Preparing For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Closing Panel Welding And Sealing Areas

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clean welding and sealing areas.
1. 1.1. Grind both sides of the connection flange of the closing panel in the marked areas -A, B- , -C, D- , -E until bare using a rotary brush.

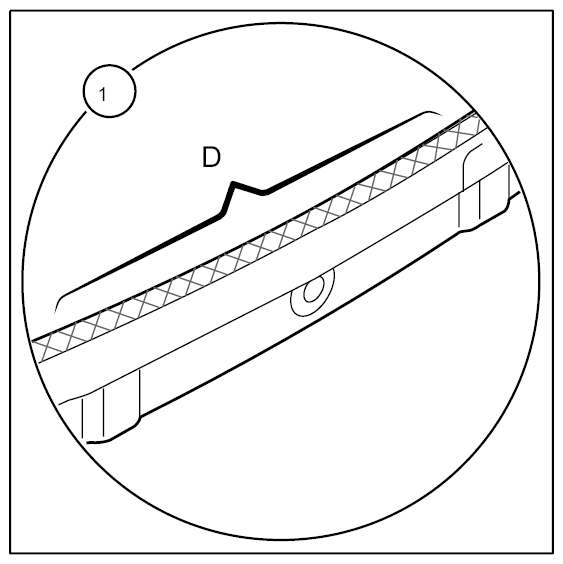

  Fig 2: Identifying Connection Flange Of Closing Panel Welding Areas (1 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

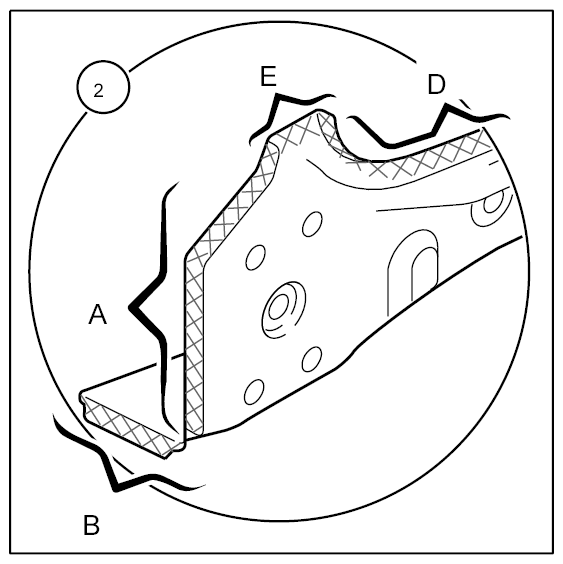

  Fig 3: Identifying Connection Flange Of Closing Panel Welding Areas (2 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

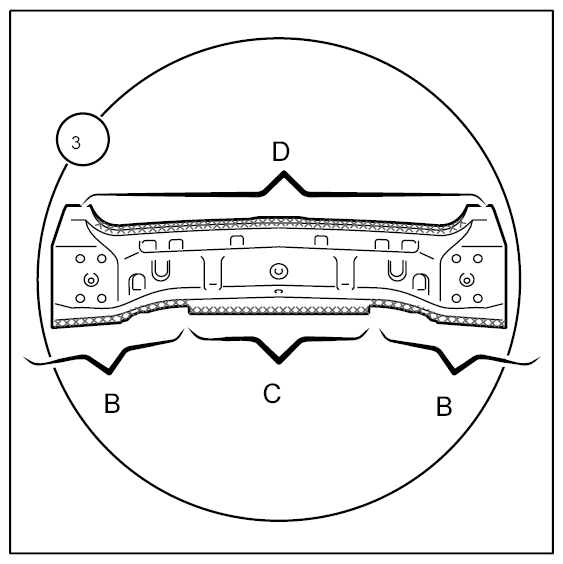

  Fig 4: Identifying Connection Flange Of Closing Panel Welding Areas (3 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

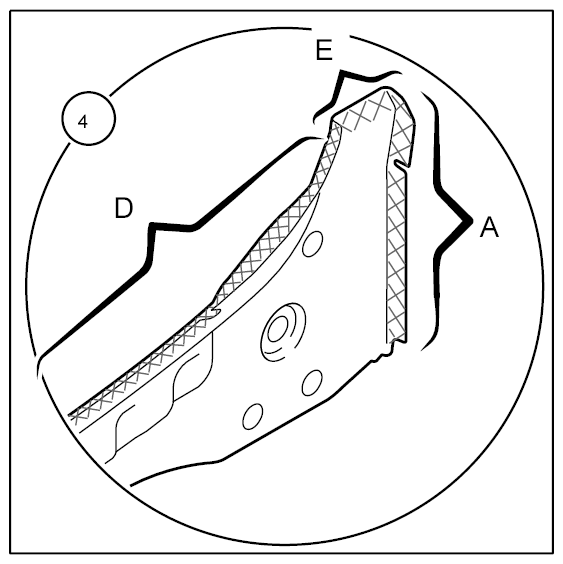

Fig 5: Identifying Connection Flange Of Closing Panel Welding Areas (4 Of 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint (areas -A, B- , -C, D- ).
