Removing Rear Connecting Link
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Wheel bearing housing raised incorrectly
- Risk of squashing
- Risk of damage to components
→ Wear personal protective gear.
→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
- Raise the vehicle. → 4X00IN LIFTING THE VEHICLE

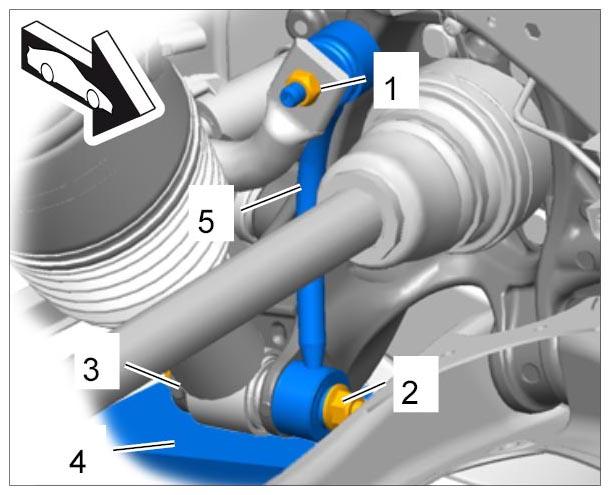

- Loosen fastening screws -1, 2- on the connecting link -5- .
- Raise the wheel bearing housing -3-
as far as required using a suitable jack -4-
so that the bottom fastening screw -2-
on the connecting link -5-
can be removed easily.
Leave the jack under the wheel bearing housing/spring strut assembly for safety reasons.
- Remove connecting link -5- .
