Installing Rear Connecting Link

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1- from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT . Always observe the following points!

Fig 1: Checking Dimension 1 - Centre Of Wheel To Lower Edge Of Wing (Rear Axle)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
Screws and nuts are Geomet-coated and must not be greased .

Fit connecting link -5- on the anti-roll bar using the top fastening screw -1- .
Raise the wheel bearing housing -3- as far as required using a suitable jack -4- so that the bottom fastening screw -2- on the connecting link can be fitted easily.

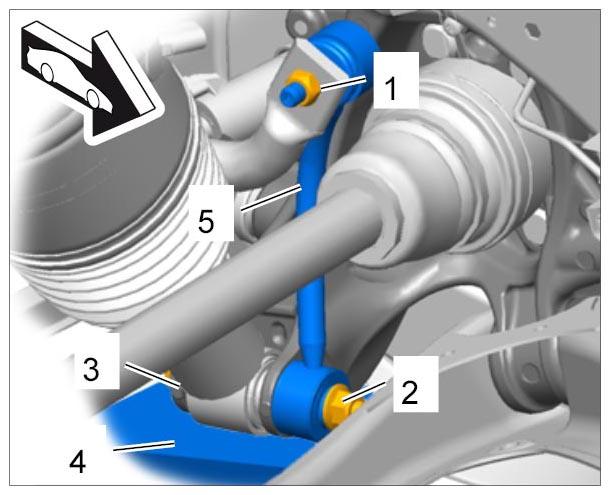

Fig 2: Identifying Rear Connecting Link
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit fastening screws -1, 2- for the connecting link -5- .
Connecting link to anti-roll bar: Tightening torque 100 Nm (74 ftlb.)

Connecting link to wheel bearing housing/shock absorber strut: Tightening torque 90 Nm (67 ftlb.) +90 angular degrees
