Component Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
The steel springs are not applicable for the Cayenne Turbo.
Standard Cayenne Turbo equipment: Air springs with levelling system and height adjustment.

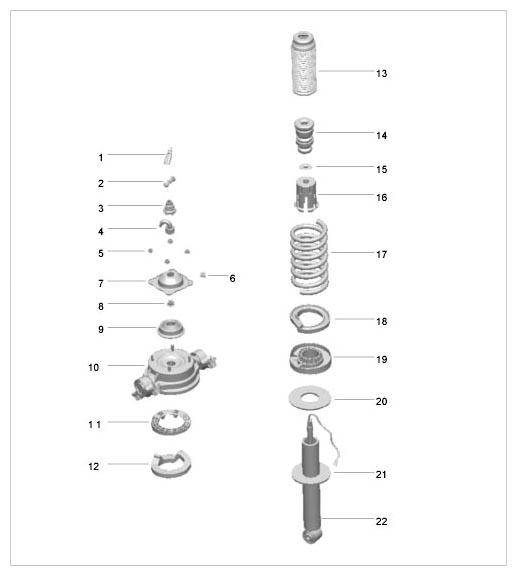

| No. | Designation | Note |
|---|---|---|
| -1- | Connector housing | Only for PASM (Porsche Active Suspension Management) |
| -2- | Grommet (connector) | Only for PASM |
| -3- | Grommet (cable) | Only for PASM |
| -4- | Cable guide | Only for PASM |
| -5- | Hexagon nut (4x) | Use new hexagon nuts. |
| -6- | Cable holder (rubber) | Only for PASM |
| -7- | Cover | |
| -8- | Lock nut | Use a new lock nut. |
| -9- | Supporting mount | |
| -10- | Concave support | |
| -11- | Upper support | Fit together at the correct position with upper base. (Align triangular markings all around). |
| -12- | Upper base | Fit together at the correct position with upper support. (Align triangular markings all around). |
| -13- | Boot | |
| -14- | Rubber stop | |
| -15- | Washer | No longer used from model year B onwards. |
| -16- | Cap | |
| -17- | Coil spring | |
| -18- | Lower base | Fit together at the correct position with lower support. (Align triangular markings all around). |
| -19- | Lower support | Fit together at the correct position with lower base. (Align triangular markings all around). |
| -20- | Spacer | Number of spacers depends on the tolerance class (0 spacers, 1 spacer or 2 spacers). The number depends on the number of violet dots on the coil spring. |

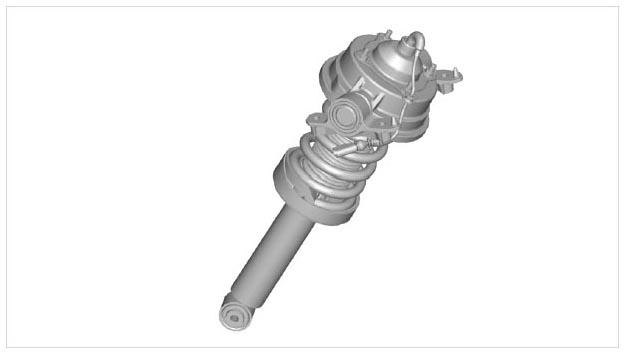

| → see Fig 2-21- | Concave washer | . |
| → see Fig 2-22- | Shock absorber |
