Removing Rear Spring Strut (Steel Springs With PASM)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wheel bearing housing raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Spring strut screws are tensioned. Use a suitable lift with rubber base .

Fig 1: Lifting Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The pictures shown in this document may differ from the original .

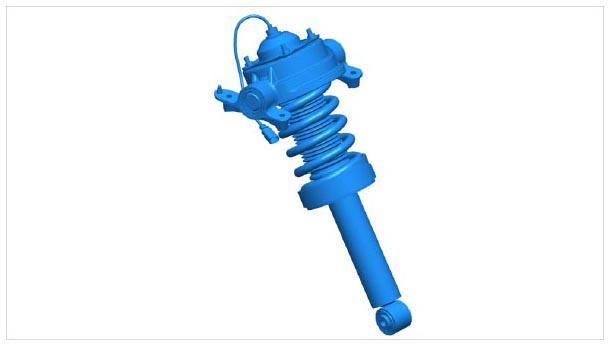

Fig 2: Identifying Rear Spring Strut (Steel Springs With PASM)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

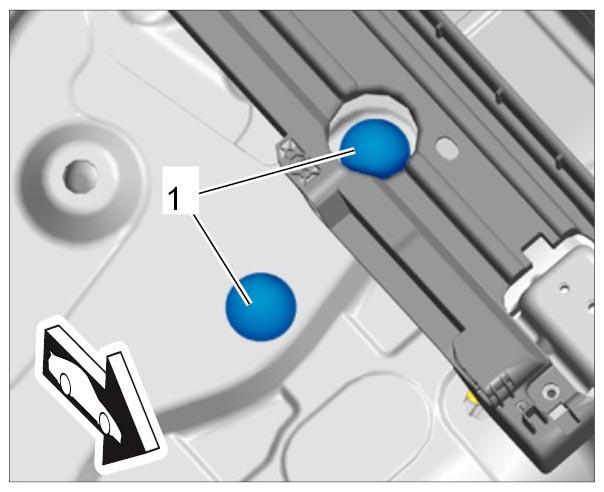

Remove caps -1- from the top screws on the spring strut at the front, under the side panel of the luggage compartment cover, using a suitable tool.

Fig 3: Identifying Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

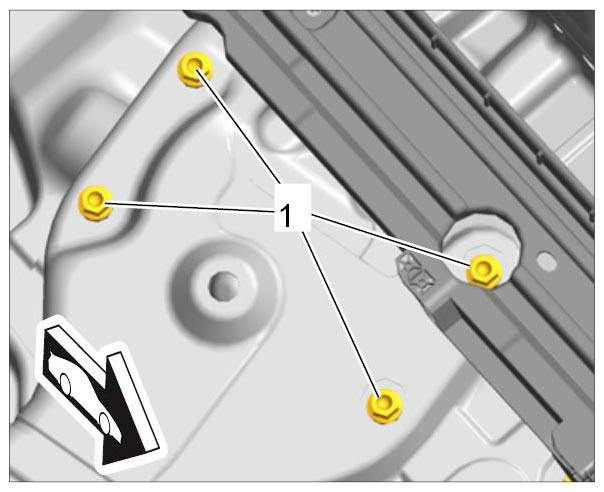

Loosen fastening screws -1- on the upper spring strut, but do not remove them.

Fig 4: Identifying Upper Spring-Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the vehicle. → 4X00IN LIFTING THE VEHICLE

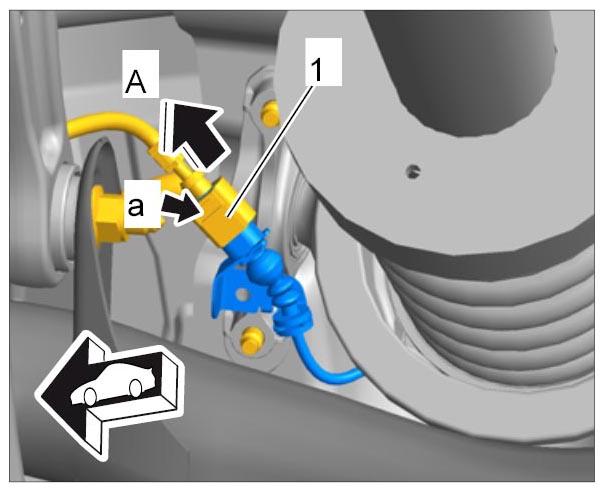

Release electric plug connection at the upper spring-strut mount -1- (-a- ) and disconnect it -A- .

Fig 5: Removing Plug Connection For Steel Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

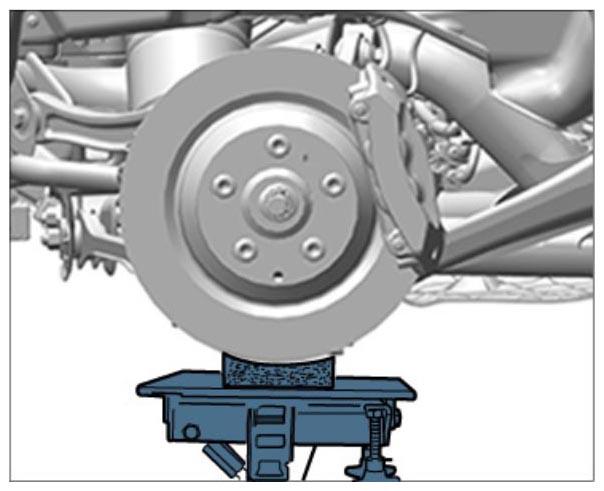

Secure the spring strut using a suitable jack → Lifting wheel bearing housing (example) .

Fig 6: Lifting Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

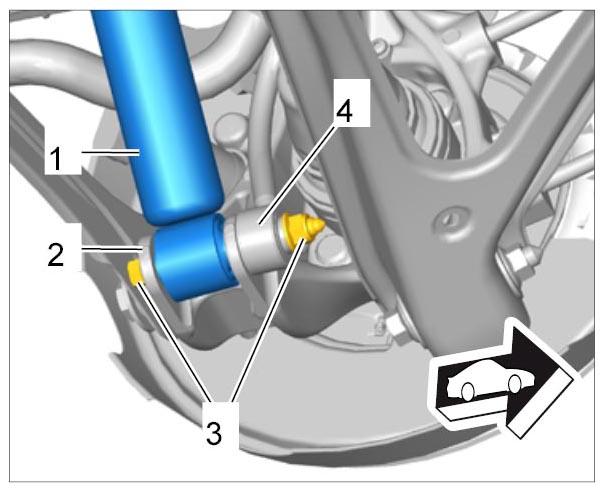

Remove the lower spring strut -1- from the wheel bearing housing -2- and connecting link -4- . To do this, loosen fastening screw -3- .

Fig 7: Identifying Screw Of Spring Strut And Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the jack and carefully lever the spring strut -1- out of the wheel bearing housing -2- using a suitable tool, e.g. mounting lever.
Lower the vehicle.
A second mechanic is needed to hold and remove the spring strut .
The first mechanic unscrews the top fastening screws -1- on the spring strut completely.

The second mechanic holds the spring strut securely and then pulls it out of the vehicle.

Fig 8: Identifying Upper Spring-Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
