Replacing Rear Wheel Bearing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The wheel bearing must not come into contact with magnetic objects (e.g., magnetic screwdriver, magnet) .
Screws and nuts are Geomet-coated and must not be greased .
Grease the toothing of the drive shaft slightly with Optimoly TA aluminum paste .
Drive shafts must not be left hanging from the joint stop! Tie them up .
Use new screws and lock nuts .
Observe correct tightening torques . → 4X00IN TIGHTENING TORQUES FOR REAR AXLE

Fit the wheel bearing at a centred position under the workshop press ram.
Fit wheel hub -2- in the wheel bearing -1- .

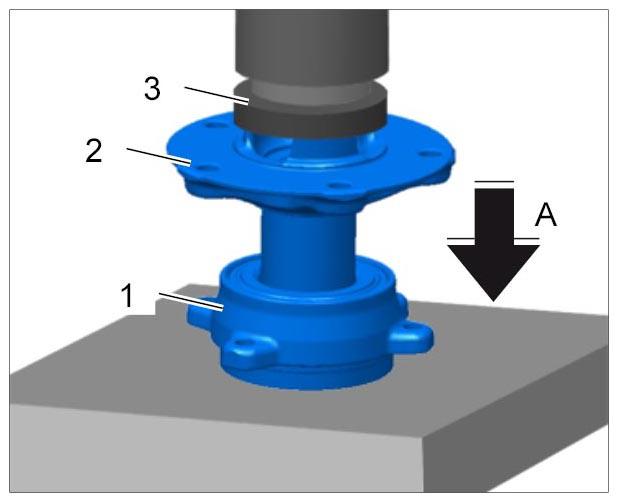

Fig 1: Pressing In Wheel Hub
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position a suitable pressure piece -3- flat on the wheel hub -2- .
Carefully press the wheel hub -2- into the wheel bearing -1- until the pressure increases -A- (check the pressure gauge!).
Fit wheel bearing with wheel hub in the wheel bearing housing.
Fit fastening screws on wheel bearing. Tighten only to the specified tightening torque! Tightening torque 80 Nm (59 ftlb.) +120°
Tighten fastening screws on wheel bearing to the specified torque angle. Tightening torque 80 Nm (59 ftlb.) +120°
1. 7.1. Mark one tooth of the relevant fastening screw and the wheel bearing housing -A- .

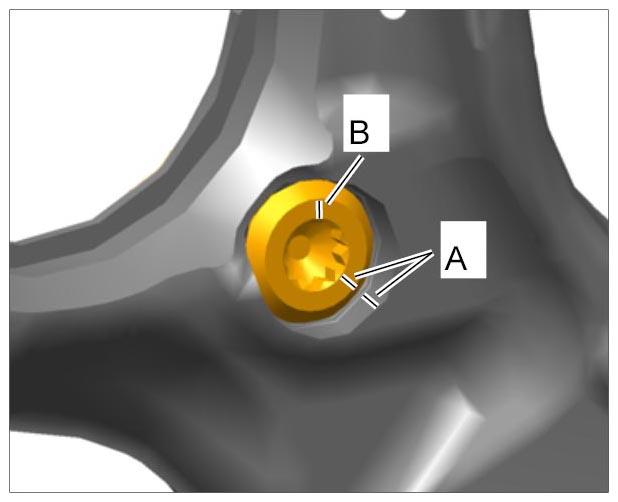

  Fig 2: Identifying Marking On Fastening Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 7.2. Starting from the marked tooth, count off four teeth anti-clockwise and also mark this tooth -B- .
3. 7.3. Tighten the fastening screw by four teeth → Final tightening: 120° clock-wise -A- so that the second marking -1- on the fastening screw is aligned with the marking -2- on the wheel bearing housing.

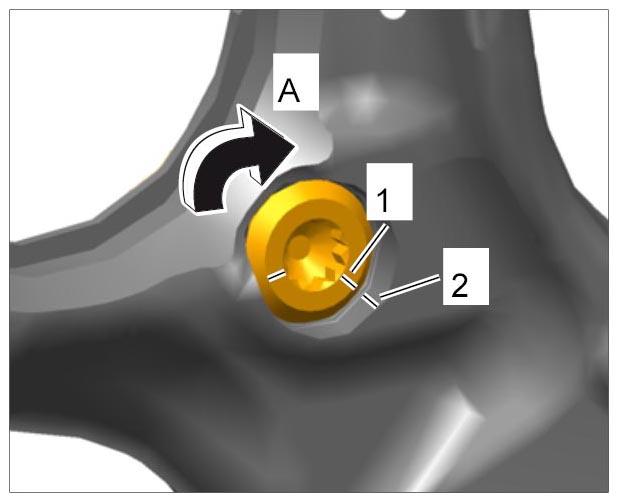

  Fig 3: Tightening Fastening Screw On Wheel Bearing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the wheel bearing housing again and set it down carefully.
Insert the drive shaft in the wheel bearing housing and fit the wheel bearing housing/drive shaft assembly in the vehicle. → Installing Rear Wheel Bearing Housing (Wheel Carrier)
