Removing Upper Control Arm At The Front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear level sensor on the upper trailing arm at the front → 431955 REPLACING REAR LEVEL SENSOR .
  2. Remove threaded joint -2-  for the front control arm on the chassis subframe.

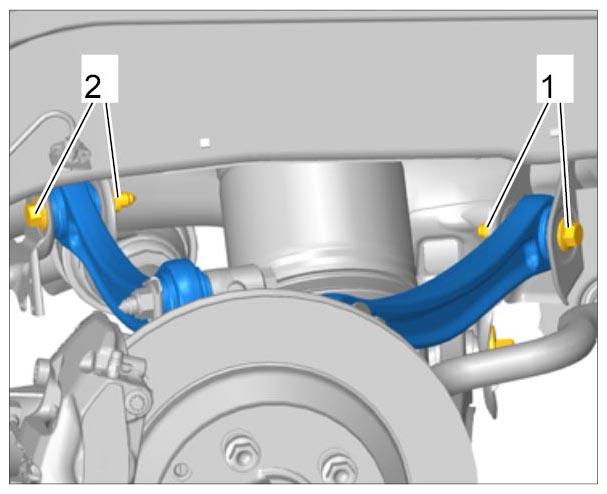

    Fig 1: Identifying Threaded Joint For Upper Trailing Arm (Inner)
    G09935387Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove threaded joint -2-  for the front control arm at the wheel bearing housing.

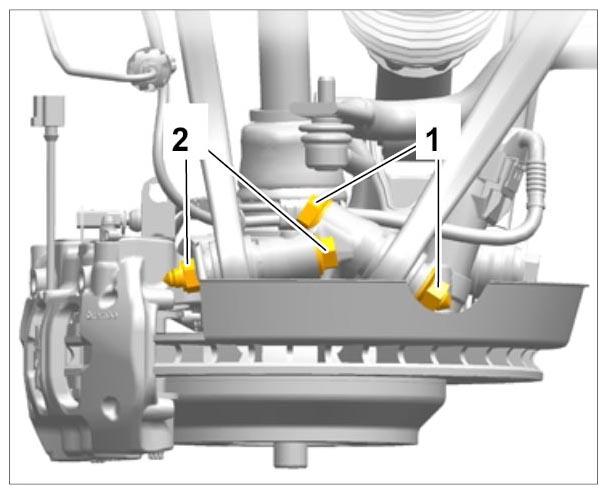

    Fig 2: Identifying Threaded Joint For Upper Trailing Arm (Outer)
    G09935388Courtesy of PORSCHE CARS NORTH AMERICA, INC.
