Installing Upper Control Arm At The Front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1- from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT . Always observe the following points!

Fig 1: Checking Dimension 1 - Centre Of Wheel To Lower Edge Of Wing (Rear Axle)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
Screws and nuts are Geomet-coated and must not be greased .

Fit threaded joint -2- for the front control arm at the wheel bearing housing. Tightening torque 150 Nm (111 ftlb.) +90 angular degrees

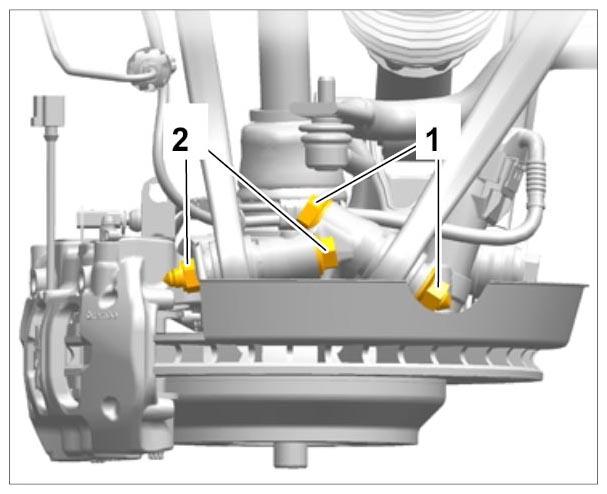

Fig 2: Identifying Threaded Joint For Upper Trailing Arm (Outer)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit threaded joint -2- for the front control arm on the chassis subframe. Tightening torque 90 Nm (67 ftlb.) +90 angular degrees

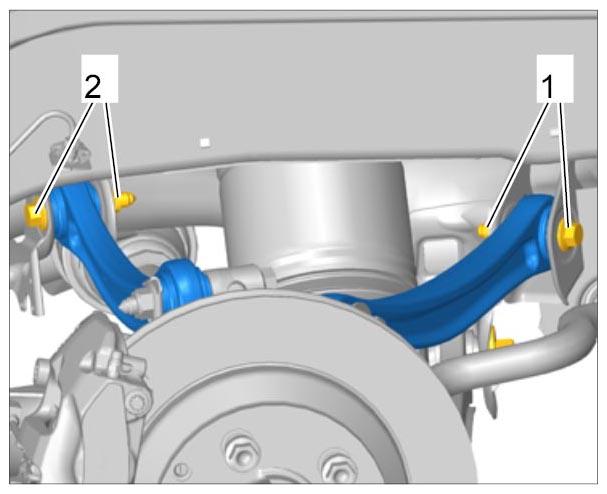

Fig 3: Identifying Threaded Joint For Upper Trailing Arm (Inner)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit rear level sensor on the upper trailing arm at the front → 431955 REPLACING REAR LEVEL SENSOR .
