Disassembling Drive Shaft: Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

The joint on the transmission side and the joint on the wheel side of the rear axle can be replaced. The entire drive shaft must be replaced if the profile shaft is defective.

Inner joint (transmission side)

Remove circlip (on transmission side) using circlip pliers Nr.68 .
Information

Before removing the bellows, mark the position of the bellows on the drive shaft with a colored pen (see also >>ASSEMBLING DRIVE SHAFT , Step 4.1<<).
Remove the bellows from the inner joint and slide it back.

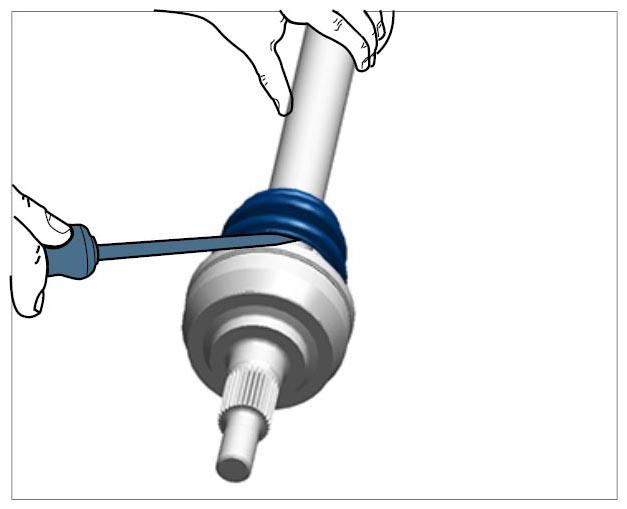

Fig 1: Removing Bellows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clamp the drive shaft (use aluminum protective jaws). Fit an aluminum mandrel on the ball hub (star-shaped inner ring) -arrow- and remove the joint pin (inner joint) by hitting it several times with a hammer. → Removing joint (on transmission side)

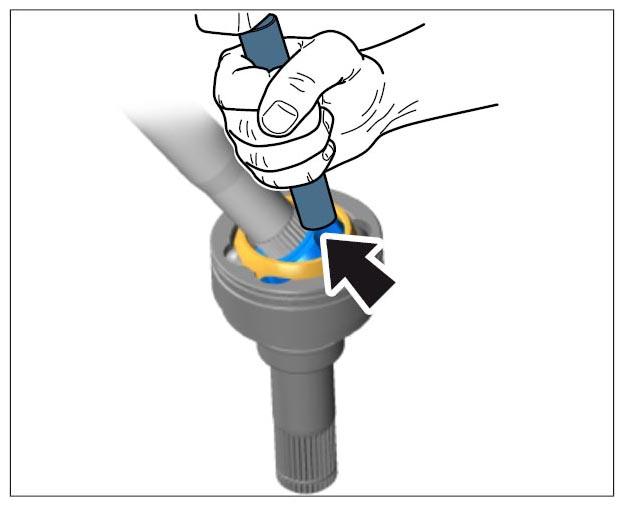

Fig 2: Removing Joint (On Transmission Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove hose clamps and bellows and take them off the profile shaft.
Outer joint (on wheel side)

Fig 3: Removing Bellows
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clamp the drive shaft (use aluminum protective jaws). Position an aluminum mandrel on the ball hub (star-shaped inner ring) -arrow- and remove the joint (outer joint) by hitting it several times with a hammer. → Removing joint (on wheel side)

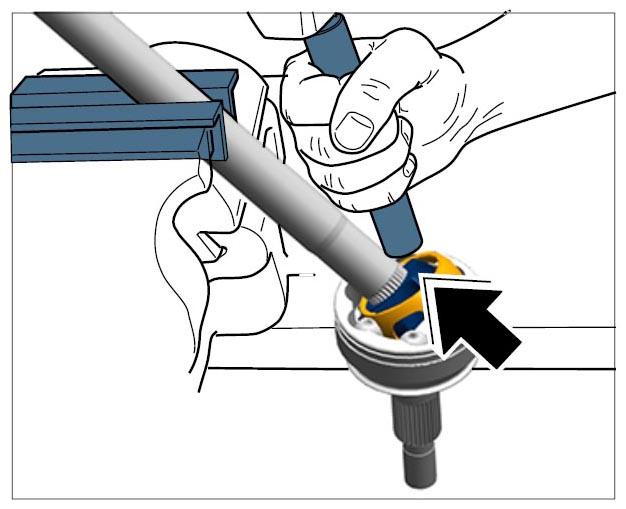

Fig 4: Removing Joint (On Wheel Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
