Replacing Lower Trailing-Arm Bearings

→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

Information

The pressure pieces and the hollow plunger-type hydraulic press VAS 6178 are used for removal and installation. Push a suitable assembly fixture T10230  onto the threaded rod and align it as described.

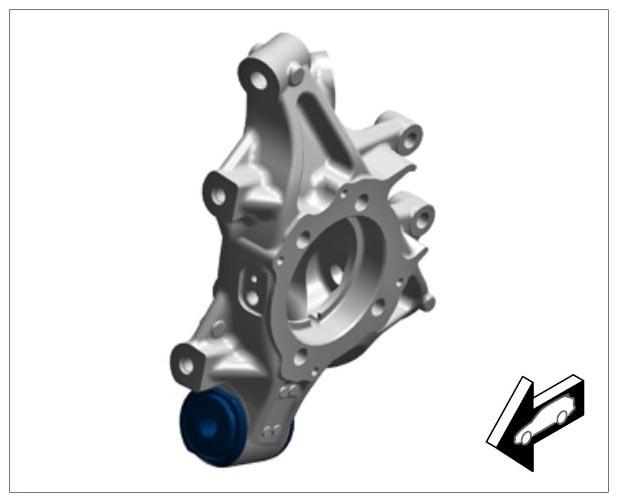

Fig 1: Identifying Wheel Carrier With Axle Bearing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

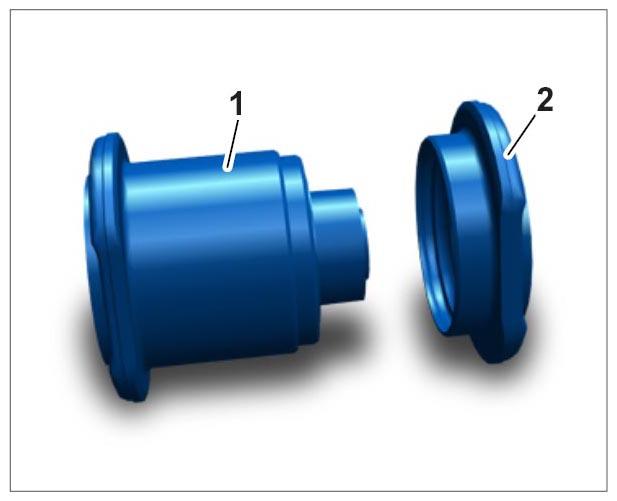

The bearing consists of the axle bearing -1-  and lock -2-  .

Fig 2: Identifying Axle Bearing With Lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

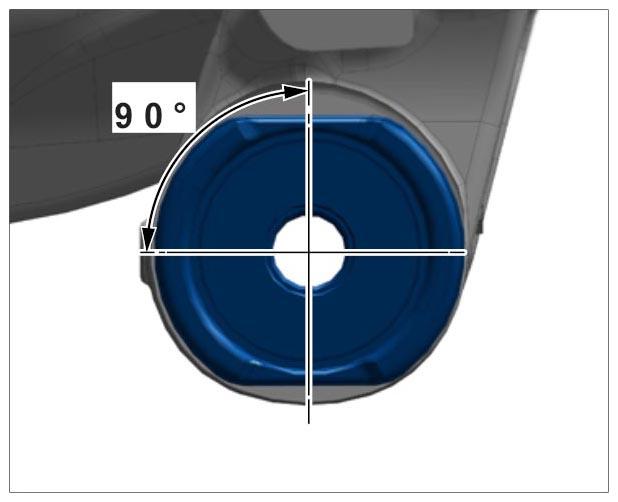

Before pressing out the bearing, check the alignment by checking the position of the cut-outs. → Alignment of bearing

Fig 3: Checking Alignment Of Bearing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Press out the lock.

   Use extractor T10230/59  for pressing out the lock.

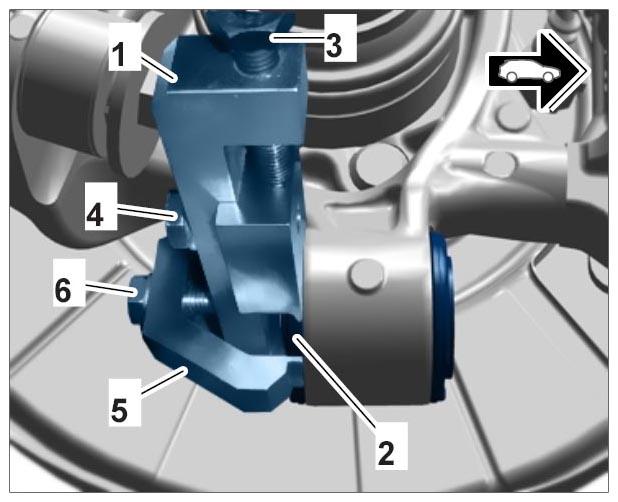

   1. 1.1. Fit the extractor -1-  on the lock -2-  .
   2. 1.2. Tighten adjusting screw -3-  until the extractor is fitted securely.
   3. 1.3. Tighten adjusting screw -4-  to prevent the tool from tilting.
   4. 1.4. Fit attachment part -5-  of the extractor close to the cut-out for the lock.
   5. 1.5. Tighten adjusting screw -6-  until the lock is loosened completely.
      Fig 4: Identifying Lock And Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press out the bearing.

   The following pressure pieces are required for pressing out the bearing. → Pressure pieces for pressing out bearing

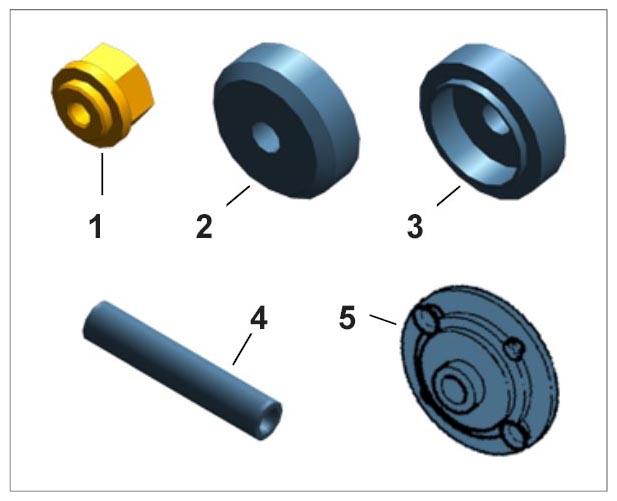

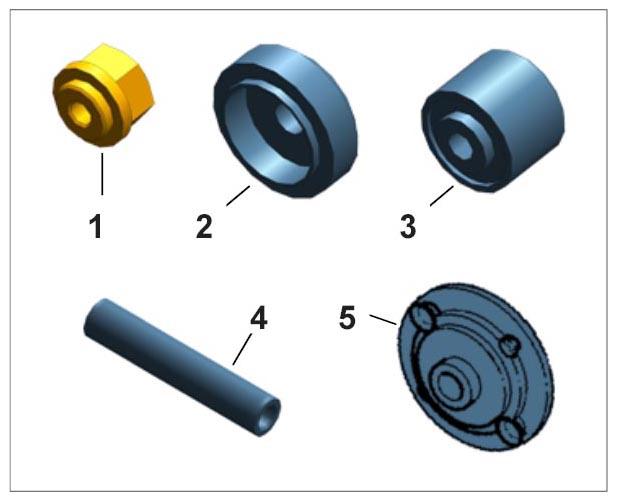

   Fig 5: Identifying Pressure Pieces For Pressing Out Bearing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • T10230/54 - -1-
   • T10230/55 - -2-
   • T10230/56 - -3-
   • T10230/3 - -4-
   • T10230/7 - -5-

     The pressure pieces are used as follows. → Arrangement of tools for pressing out bearing

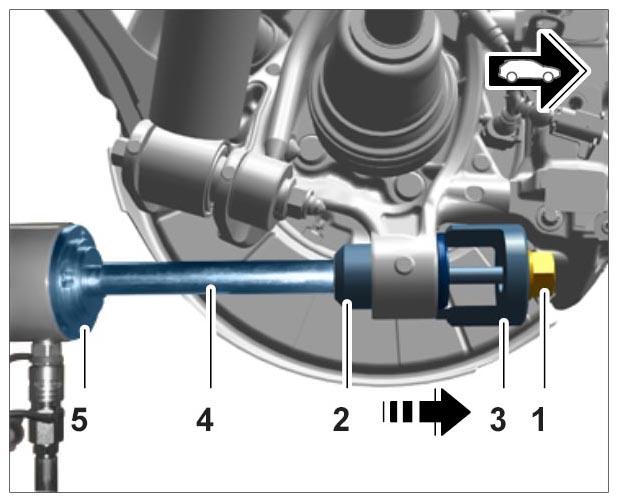

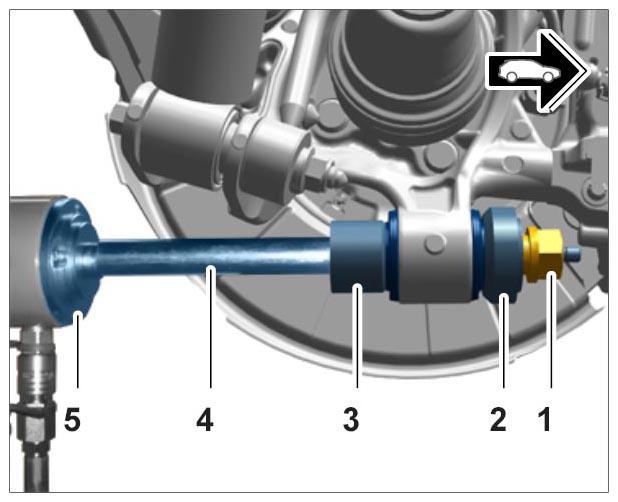

     Fig 6: Adjusting Tools For Pressing Out Bearing

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press in the bearing.

   Before pressing in the bearing, always check the alignment of the bearing. → Alignment of bearing

   The following pressure pieces are required for pressing in.

   → Pressure pieces for pressing in bearing

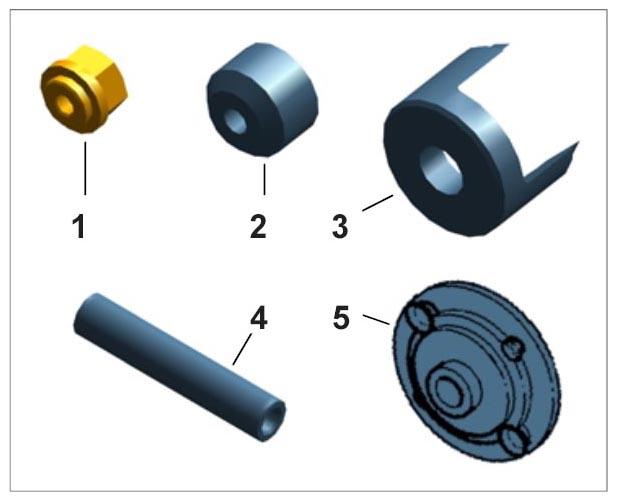

   Fig 7: Identifying Pressure Pieces For Pressing In Bearing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • T10230/54 - -1-
   • T10230/10 - -2-
   • T10230/57 - -3-
   • T10230/3 - -4-
   • T10230/7 - -5-

     The pressure pieces are used as follows. → Arrangement of tools for pressing in bearing

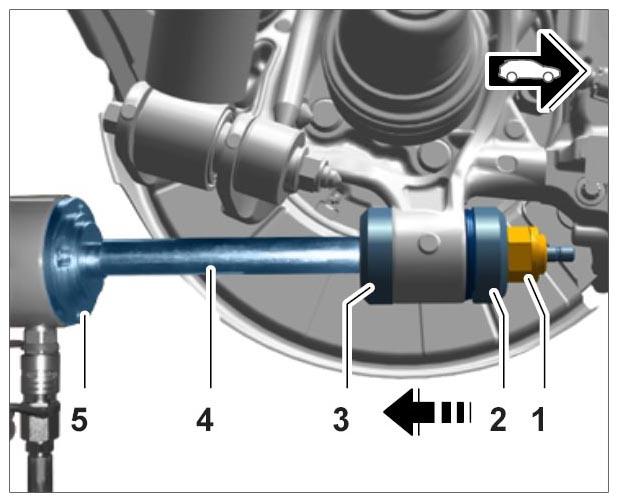

     Fig 8: Adjusting Tools For Pressing In Bearing

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Press in the lock.

   The following pressure pieces are required for pressing in the lock. → Pressure pieces for pressing in lock

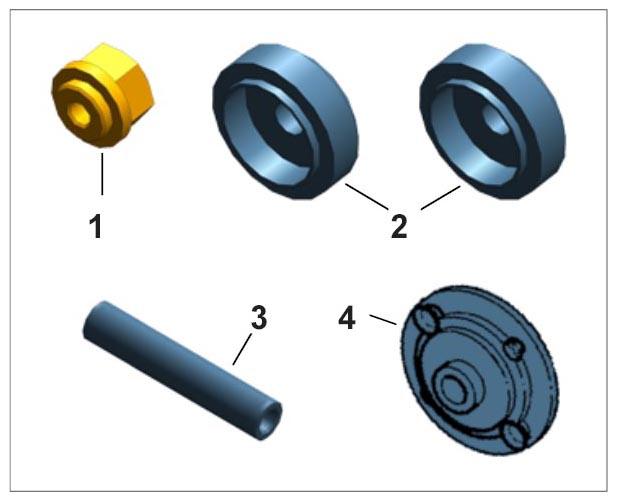

   Fig 9: Identifying Pressure Pieces For Pressing In Lock

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • T10230/54 - -1-
   • T10230/57 (2x) - -2-
   • T10230/3 - -3-
   • T10230/7 - -4-

     The pressure pieces are used as follows. → Arrangement of tools for pressing in lock

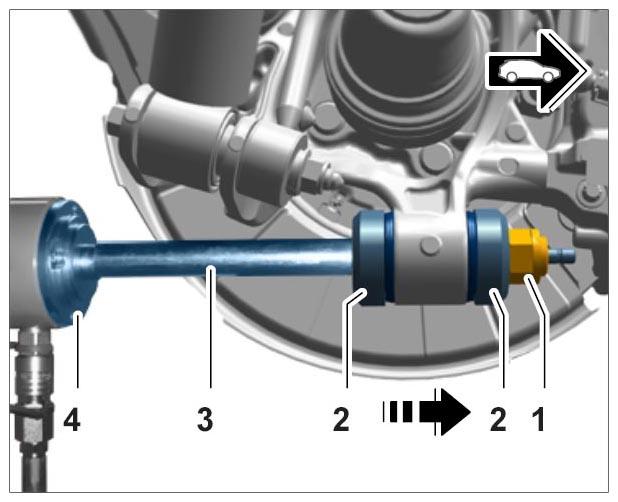

     Fig 10: Adjusting Tools For Pressing In Lock

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. To ensure that the lock is fitted at the correct position on the bearing, the lock must be crimped with the bearing. The following pressure pieces are required for crimping. → Pressure pieces for crimping

   The pressure pieces are used as follows. → Arrangement of tools for crimping

   Fig 11: Identifying Pressure Pieces For Crimping

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • T10230/54 - -1-
   • T10230/57 - -2-
   • T10230/58 - -3-
   • T10230/3 - -4-
   • T10230/7 - -5-
     IMPORTANT: Check alignment of pressure pieces and nuts!
     Fig 12: Adjusting Tools For Crimping

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
