Removing Lower Trailing Arm

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

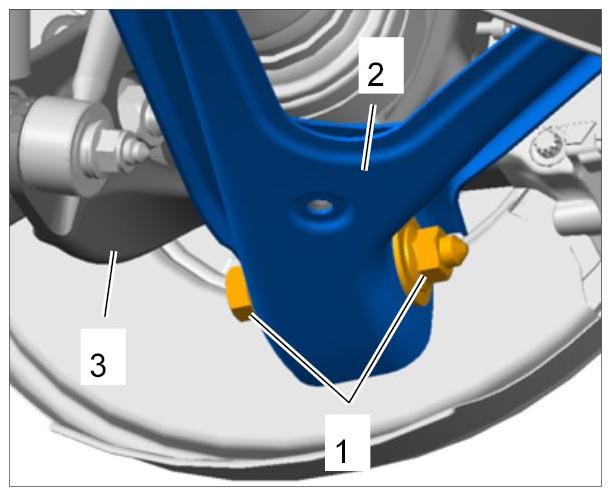

Loosen the threaded joint -1- for the trailing arm -2- on the wheel bearing housing -3- and pull out the screw.

Fig 1: Identifying Fastening Screw On Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

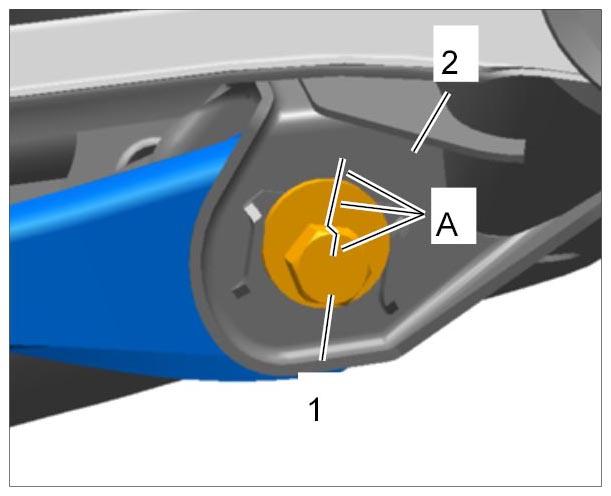

Mark the installation position of the eccentric screw -1- in the rear axle housing -2- (-A- ).

Fig 2: Identifying Marking For Eccentric Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

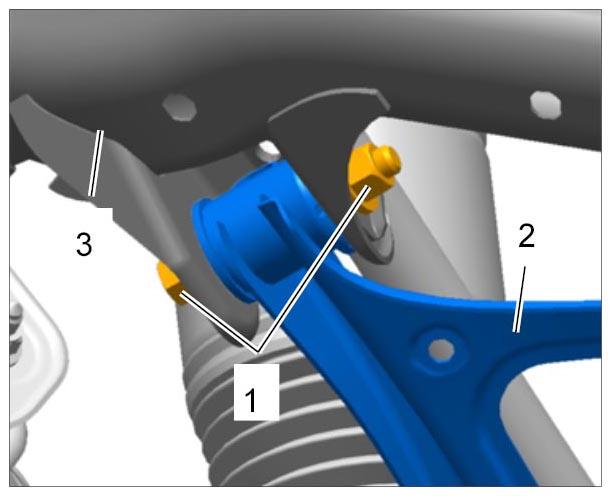

Loosen the eccentric screw -1- for the trailing arm -2- and pull it out of the rear axle housing -3- .

Fig 3: Identifying Eccentric Screw For Trailing Arm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

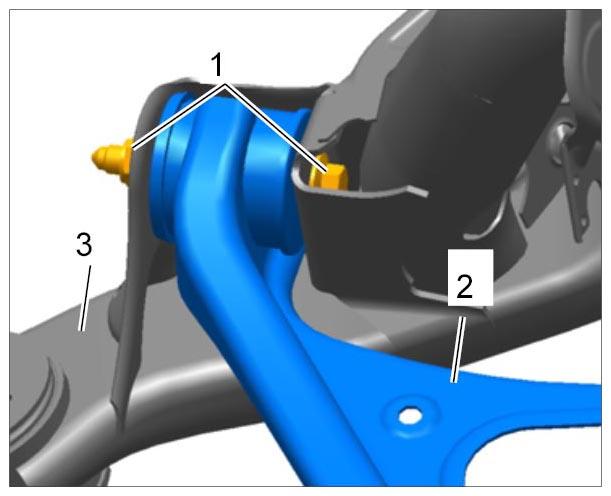

Loosen the fastening screw -1- for the trailing arm -2- in the front rear axle housing -3- and pull it out.

Fig 4: Identifying Front Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take the trailing arm out of the vehicle.
Press it out of the guides using a suitable tool if necessary.
