Removing Rear Tie Rod (Toe Control Arm)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

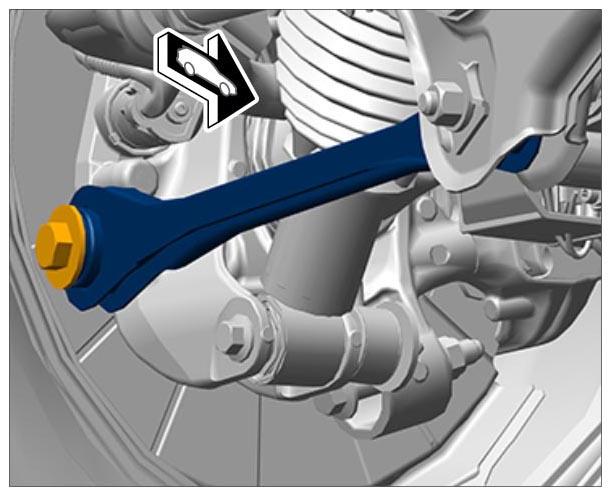

Fig 1: Identifying Tie Rod (Toe Control Arm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

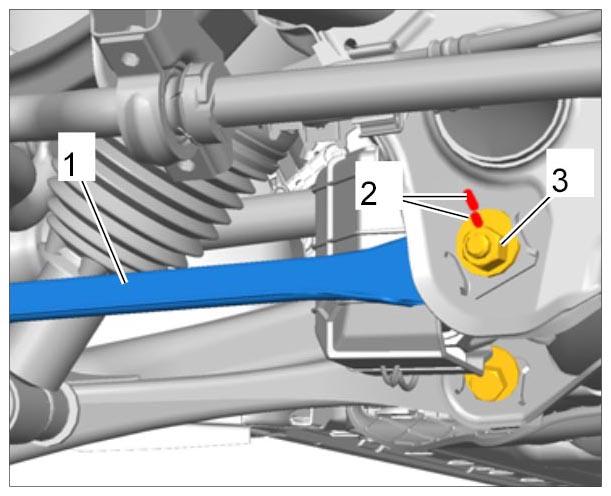

Mark the position of the eccentric screw -3- on the tie rod -1- for re-installation -2- .

Fig 2: Identifying Marking For Eccentric Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release tie rod at the chassis subframe (eccentric screw) and wheel carrier. Pull out tie rod.

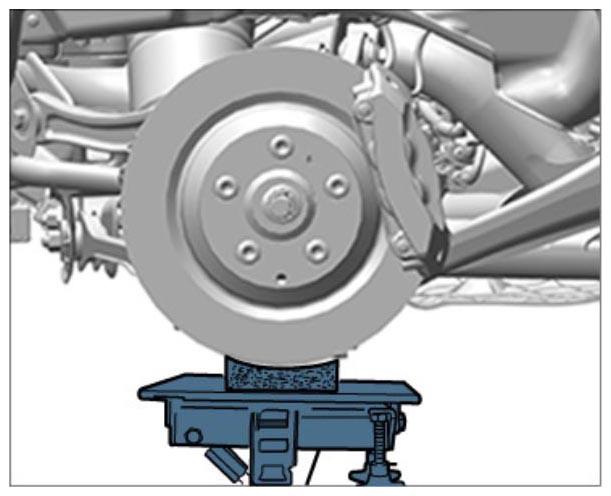

To make removal easier, raise the wheel carrier slightly using a universal jack! → Lifting wheel bearing housing (example) Use a rubber base to prevent the wheel carrier from slipping!

Fig 3: Lifting Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
