Installing Rear Tie Rod (Toe Control Arm)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information

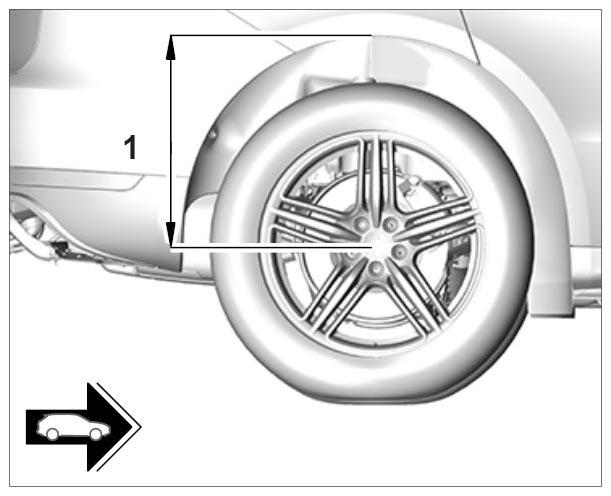

- All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1- from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT . Always observe the following points!
- On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
- Screws and nuts are Geomet-coated and must not be greased .
- Installation is performed in reverse order.
Observe specified tightening torques:
Tie rod to wheel bearing housing: Tightening torque 150 Nm (111 ftlb.) +90 angular degrees
Tie rod to chassis subframe: Tightening torque 170 Nm (126 ftlb.)

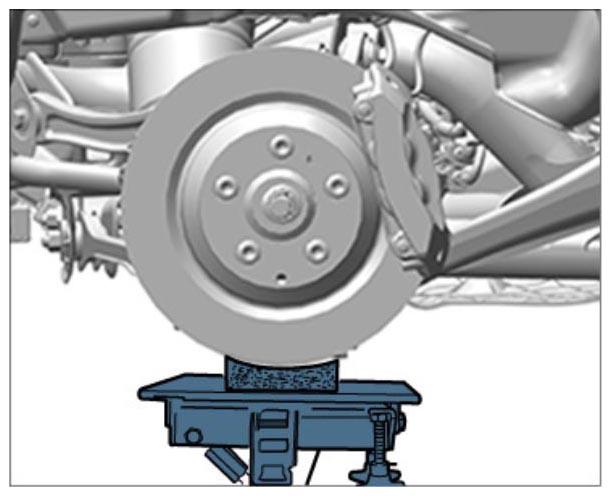

To make removal easier, raise the wheel carrier slightly using a universal jack! → Lifting wheel bearing housing (example) Use a rubber base to prevent the wheel carrier from slipping!
