Tools And Materials: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Tool overview for chassis subframe bearings assembly fixture T10301

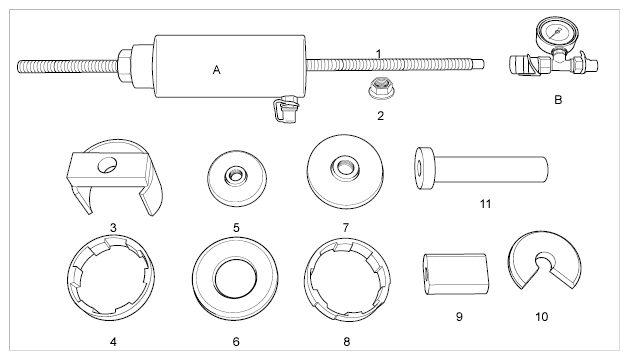

Fig 1: Overview Of Tool For Chassis Subframe Bearings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-A- - → Hydraulic cylinder VAS 6178 (The hydraulic cylinder is used together with the → foot pump VAS 6179 and the → pressure gauge with connecting cable VAS 6179/1 -B- ).
-1- - Threaded rod (Inserted into the tubular piston cylinder -A- .)
-2- - Threaded nut (Screwed onto the threaded rod -1- .)
-3- - Pipe (For pressing out the chassis subframe bearings.)
-4- - Ring (For pressing out the chassis subframe bearings.)
-5- - Press-out plate (For pressing out the chassis subframe bearings.)
-6- - Pressure piece (For pressing in the chassis subframe bearings.)
-7- - Press-in plate (For pressing in the chassis subframe bearings.)
-8- - Ring (For pressing out the chassis subframe bearings.)
-9- - Spacer sleeve (For pressing out the chassis subframe bearings together with pipe -3- .)
-10- - Pressure piece (For pressing in the chassis subframe bearings.)
-11- - Spacer sleeve (For pressing in the chassis subframe bearings.)

Porsche supplement set T10301/20

-2- - Threaded nut (Screwed onto the threaded rod -1- .)
-12- - Press-out ring (For pressing out the chassis subframe bearings.)
-13- - Pressure piece (For pressing in the chassis subframe bearings.)
-14- - Bush (For pressing out the chassis subframe bearings.)

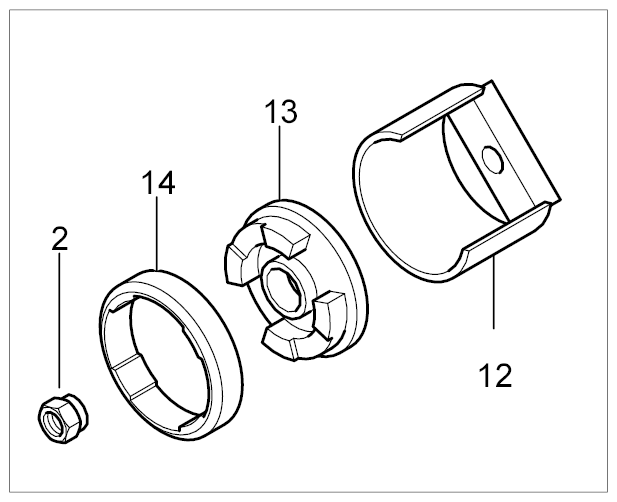

Fig 2: Identifying Assembly Fixture T10301/20
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
