Replacing Rear Axle Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

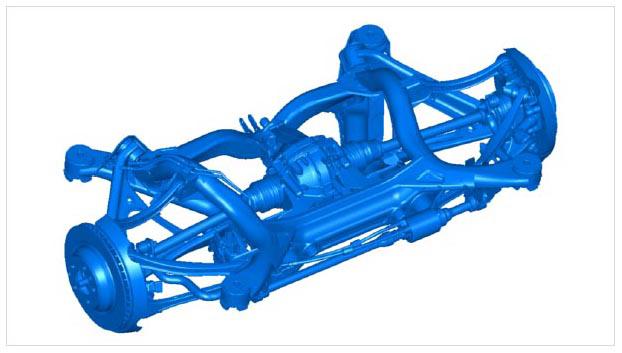

Fig 1: Identifying Rear Axle Housing
G09935307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removal:

  1. Remove wheel bearing housing from the rear axle housing. → 425219 REMOVING AND INSTALLING REAR WHEEL BEARING HOUSING (WHEEL CARRIER)
  2. Remove lower trailing arm at the rear axle housing. → 421119 REMOVING AND INSTALLING LOWER TRAILING ARM
  3. Remove rear level sensors from the rear axle housing. → 431955 REPLACING REAR LEVEL SENSOR
  4. Remove rear tie rod from the rear axle housing. → 420919 REMOVING AND INSTALLING TIE ROD (TOE CONTROL ARM)
  5. Remove anti-roll bar from the rear axle housing. → 429019 REMOVING AND INSTALLING ANTI-ROLL BAR  , → 429019 REMOVING AND INSTALLING REAR ANTI-ROLL BAR (PDCC)
  6. Remove rear final drive from the rear axle housing. → 390119 REMOVING AND INSTALLING REAR FINAL DRIVE
  7. Vehicles with PDCC:

    Unclip rear PDCC lines from the brackets. → 429019 REMOVING AND INSTALLING REAR ANTI-ROLL BAR (PDCC)

  8. Vehicles with PDCC:

    Unclip front PDCC lines -1-  from the bracket -2-  .

    Fig 2: Identifying Front PDCC Lines
    G09935308Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Vehicles with PDCC:

    Remove valve block from the rear axle housing. → 430419 REMOVING AND INSTALLING VALVE BLOCK

    Assembly:

  10. Vehicles with PDCC:

    Fit valve block on the rear axle housing. → Removing Rear-Axle Valve Block

  11. Vehicles with PDCC:

    Clip front PDCC lines -1-  into the bracket -2-  .

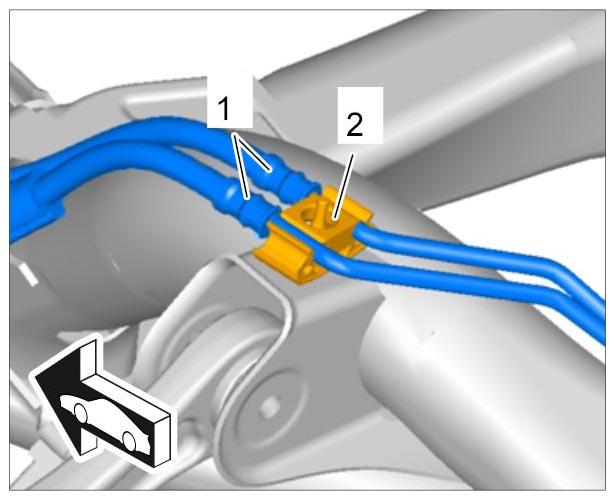

    Fig 3: Identifying Front PDCC Lines
    G09935309Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Vehicles with PDCC:

    Clip rear PDCC lines into the brackets. → Installing Rear Anti-Roll Bar (PDCC)

  13. Fit rear final drive on the rear axle housing. → Installing Rear Final Drive
  14. Fit anti-roll bar on the rear axle housing. → 429019 REMOVING AND INSTALLING ANTI-ROLL BAR  , → Installing Rear Anti-Roll Bar (PDCC)
  15. Fit rear tie rod on the rear axle housing. → 420919 REMOVING AND INSTALLING TIE ROD (TOE CONTROL ARM)
  16. Fit rear level sensors on the rear axle housing. → 431955 REPLACING REAR LEVEL SENSOR
  17. Fit lower trailing arm at the rear axle housing. → 421119 REMOVING AND INSTALLING LOWER TRAILING ARM
  18. Fit wheel bearing housing on the rear axle housing. → Installing Rear Wheel Bearing Housing (Wheel Carrier)
