Tools And Materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

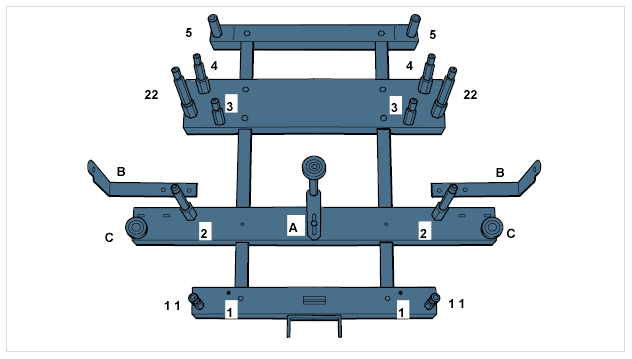

Fig 1: Identifying Assembly Frame - Cayenne
G09935293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Assembly frame Assembly fixture - Cayenne WE 1563
  2. -11-  - Mounting for rear axle housing
  3. -22-  - Mounting for rear axle housing
