Installing Rear Axle

→ Do not reach into the danger area.

→ Secure the system to prevent it from being activated accidentally.

→ Keep third parties away from the danger area.

1. Installation is performed in reverse order.

   Observe specified tightening torques:

   Rear axle to body, front: Tightening torque 120 Nm (89 ftlb.) +180 angular degrees

   Rear axle to body, rear: Tightening torque 120 Nm (89 ftlb.) +180 angular degrees

   Centre bearing (cardan shaft) to body (initial tightening): Initial tightening 20 Nm (15 ftlb.)

   Centre bearing (cardan shaft) to body (final tightening): Final tightening +90°

   Rear spring strut to wheel bearing housing: Tightening torque 90 Nm (67 ftlb.) +90 angular degrees

2. Position rear axle housing back in its original, marked installation position and tighten it.

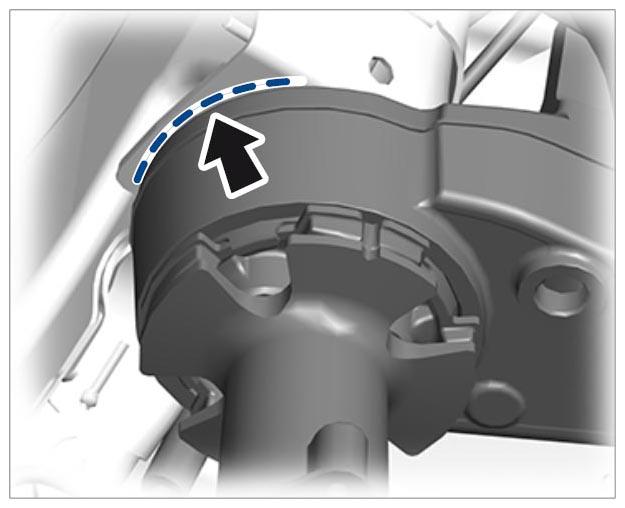

   Fig 1: Locating PDCC Marking

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Replace circlip -arrow-  at the input flange of the rear final drive.

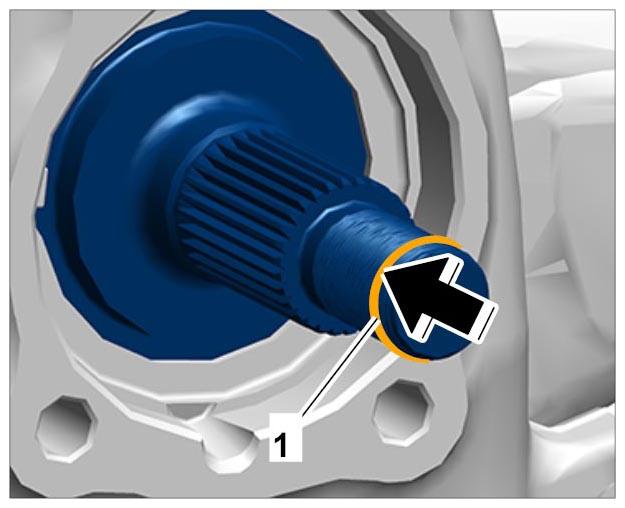

   Fig 2: Locating Rear Axle Circlip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Position the cardan shaft at the marking on the rear final drive.

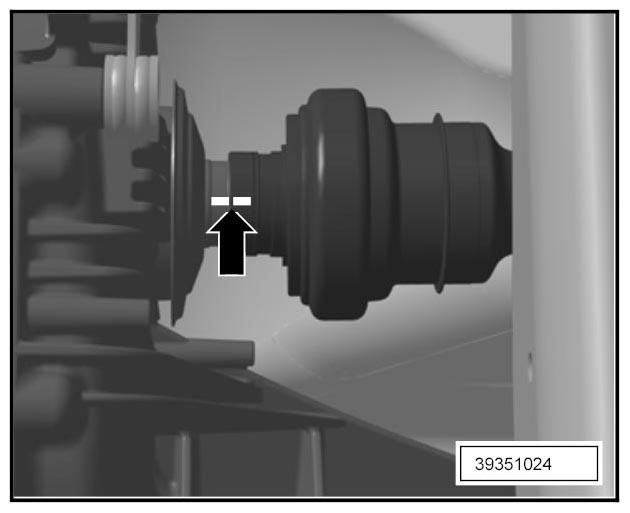

   Fig 3: Locating Marking On Installation Position Of Cardan Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. For vehicles with PDCC (Porsche Dynamic Chassis Control - anti-roll stabilization):

   On vehicles with PDCC, the lines (pressure line, return line) at the PDCC valve block must be fitted from rear axle to front axle.

   Pressure lines to PDCC valve block: Tightening torque 28 Nm (21 ftlb.)
