Removing Exhaust Pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Loosen and remove fastening screw -2- on the auxiliary heater holder (figure shows auxiliary heater installed).

Fig 1: Identifying Exhaust Pipe Holder With Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

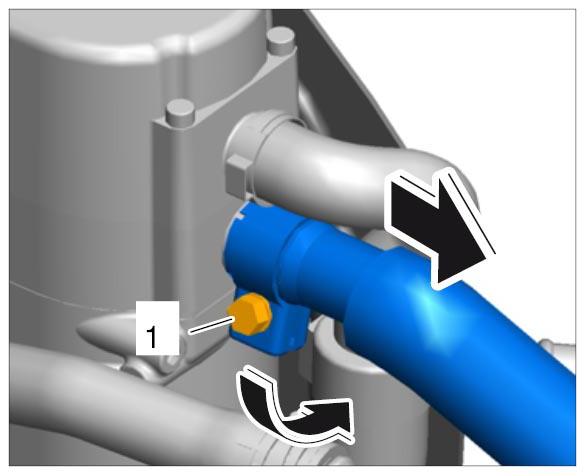

Loosen clamp -1- on the auxiliary heater housing.

Fig 2: Loosening Clamp On Auxiliary Heater Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect exhaust pipe at the auxiliary heater connection and remove it carefully.
