Removing Silencer For Auxiliary Heating

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Loosen the pipe clamp -5- on the exhaust pipe.

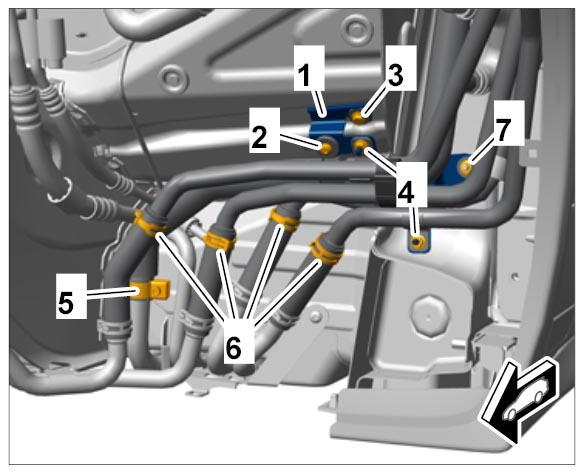

Fig 1: Identifying Exhaust Pipe Holder With Pipe Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screws -4- on the holder -3- and remove the silencer and holder -6- .

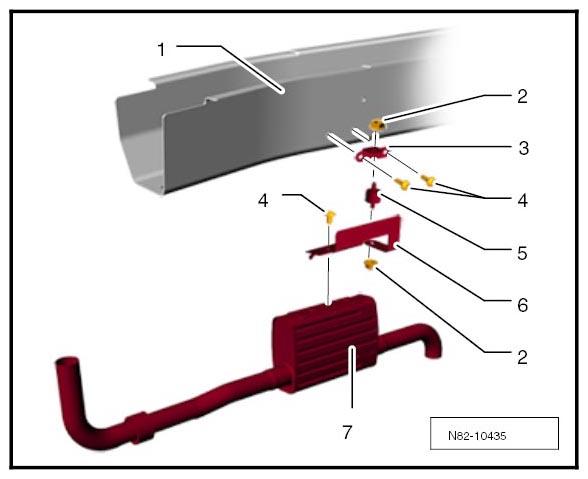

Fig 2: Overview Of Silencer For Auxiliary Heating
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The holder must be converted when replacing the silencer.
1. 3.1. Loosen fastening screws -4- on the holder and remove the holder -6- .
