Removing Intake Muffler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

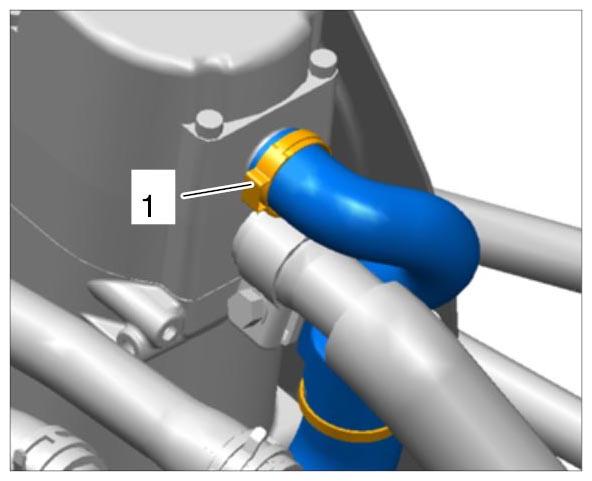

Loosen clamp -1- on the intake tube for the heater and pull off intake muffler. The clamp must be replaced.

Fig 1: Identifying Clamp On Intake Tube
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

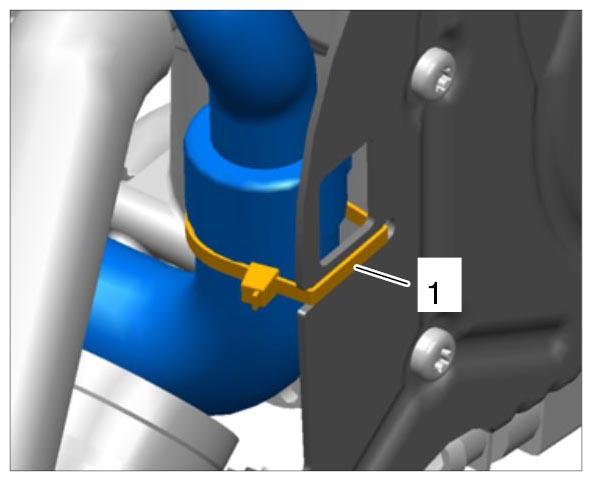

Loosen tie-wrap -1- on the heater holder.

Fig 2: Identifying Tie-Wrap On Heater Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

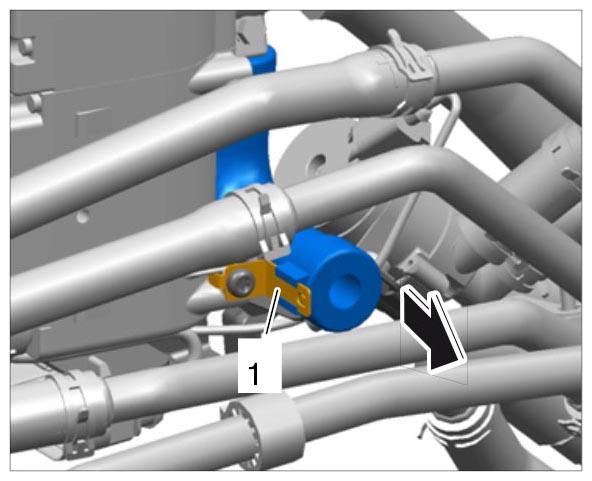

Release intake muffler at the fixing clip for the heater housing holder -1- and remove muffler.

Fig 3: Removing Intake Muffler Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
