Removing Complete Auxiliary Heating

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Close off coolant hoses using hose clamps 3094 , loosen spring band clamps -1- on coolant lines using assembly pliers Nr.72-1 and pull coolant hoses off the coolant pipes.

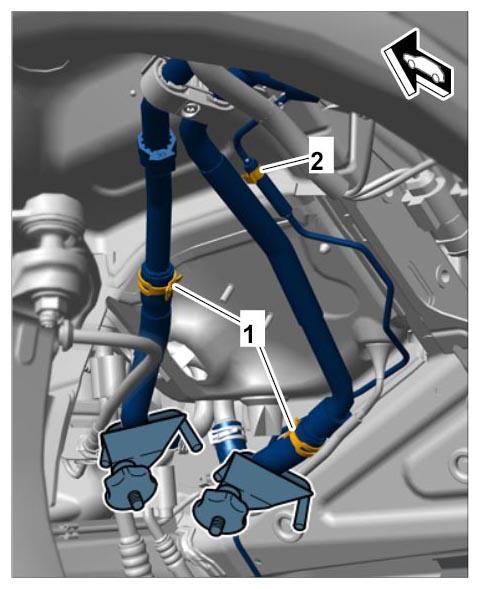

Fig 1: Identifying Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen hose clamp -2- on the fuel line and close off the fuel line. Use a new hose clamp during installation.
Close off coolant hoses using hose clamp 3094 , loosen spring band clamps -6- on coolant lines using assembly pliers Nr.72-1 and pull coolant hoses off the coolant pipes.

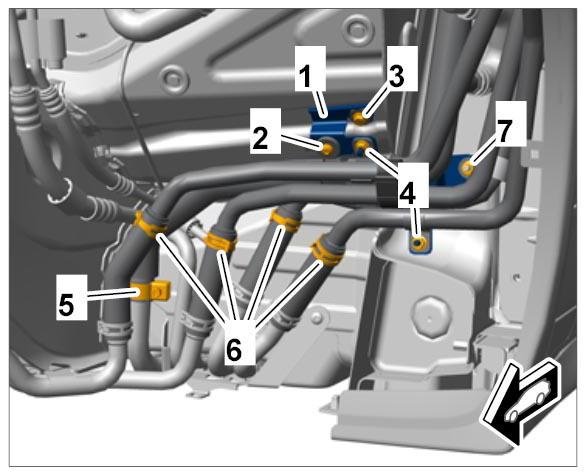

Fig 2: Identifying Exhaust Pipe Holder Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen clamp -5- on the exhaust pipe and remove pipe by pulling it downwards.
Remove fastening screw -3- and fastening nut -7- and loosen holders for coolant pipes and exhaust pipe.

Fig 3: Identifying Exhaust Pipe Holder With Screws And Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect connectors -1, 2 and 3- for auxiliary heating.

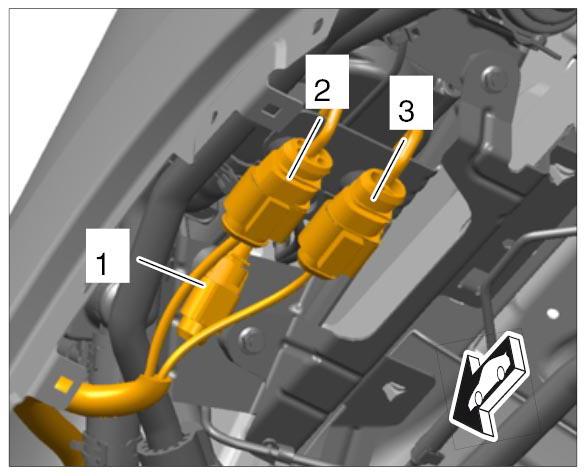

Fig 4: Identifying Auxiliary Heating Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screws -1- on the holder -2- .

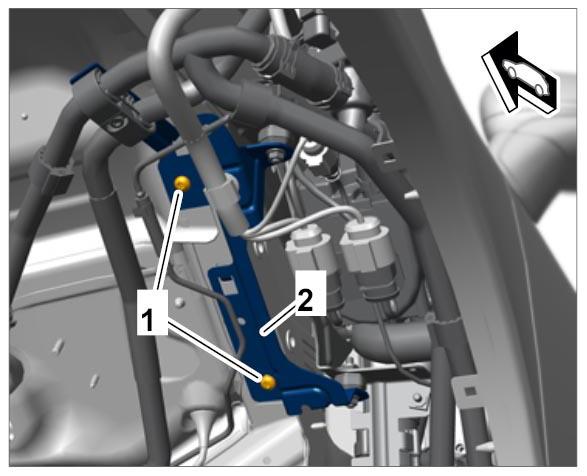

Fig 5: Identifying Auxiliary Heater Holder With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unhook auxiliary heater holder by lifting it up and carefully remove auxiliary heater.
