Removing Control Unit For Auxiliary Heater

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -1-  .

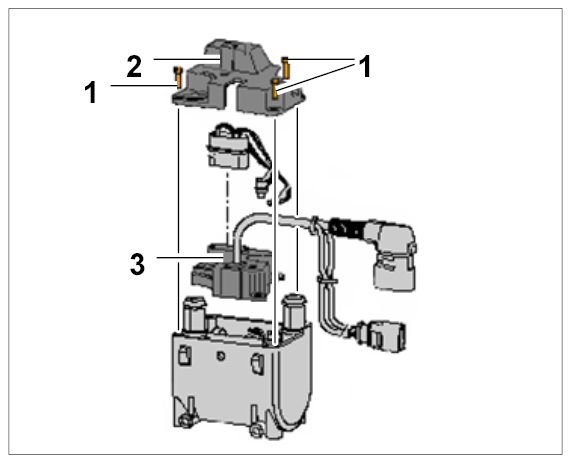

    Fig 1: Identifying Control Unit Components
    G09941238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove cover -2-  from control unit for auxiliary heater -3-  .
  3. Release electric plug connection -1-  and disconnect it -arrow-  .

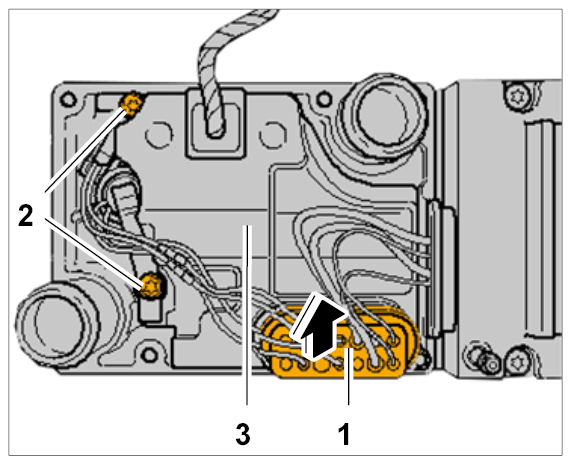

    Fig 2: Removing Control Unit For Auxiliary Heater
    G09941239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew screws -2-  .
  5. Remove control unit for auxiliary heater -3-  .
