Removing Control Unit For Auxiliary Heater Receiver

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -2-  .

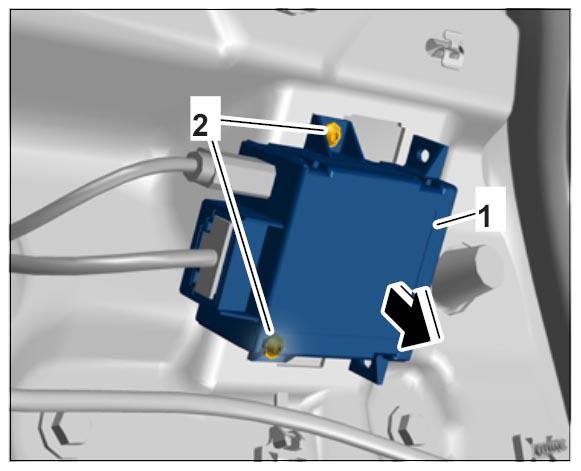

    Fig 1: Removing DME Control Unit For Auxiliary Heater Receiver
    G09941234Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove control unit -1-  .
  3. Release electric plug connections -arrow A-  and disconnect them -arrow B-  .

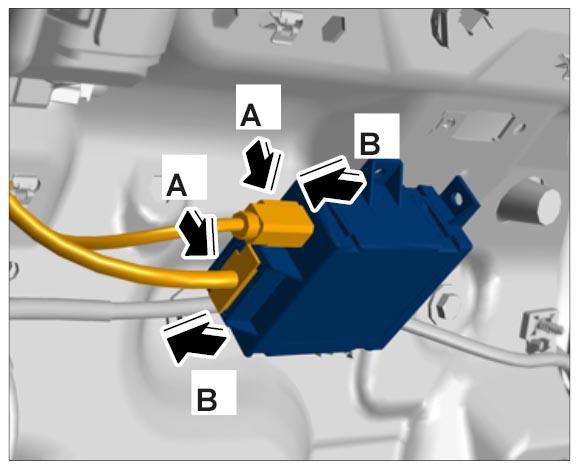

    Fig 2: Disconnecting Electric Plug Connections
    G09941235Courtesy of PORSCHE CARS NORTH AMERICA, INC.
