Installing Control Unit For Auxiliary Heater Receiver

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect electric plug connections -arrows-  until they engage securely.

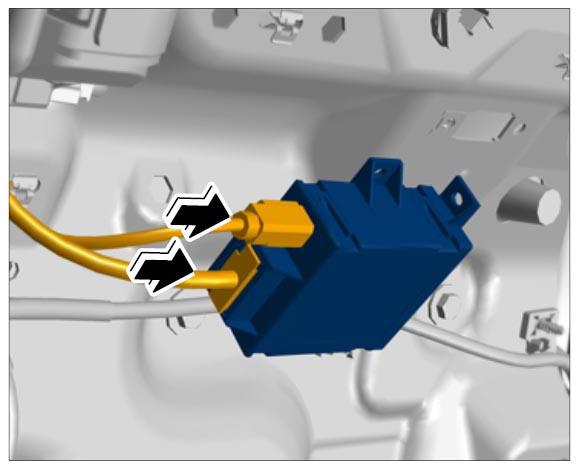

    Fig 1: Connecting Electric Plug Connections
    G09941236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position control unit -1-  (-arrow-  ).

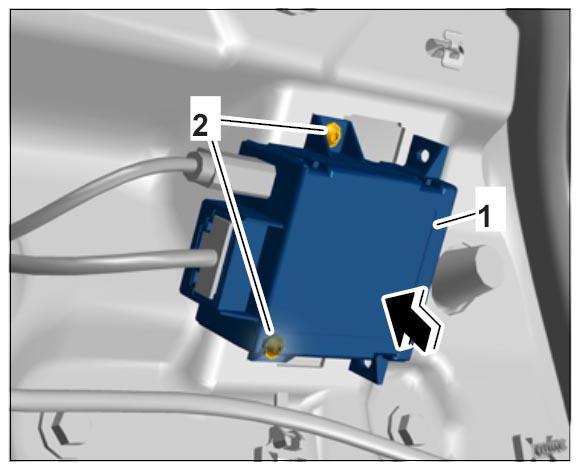

    Fig 2: Securing Control Unit
    G09941237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tighten fastening screws -2-  . Tightening torque 2 Nm (1.5 ftlb.)
