Removing Check Valve

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip check valve -1-  on the fuel pipe -2-  .

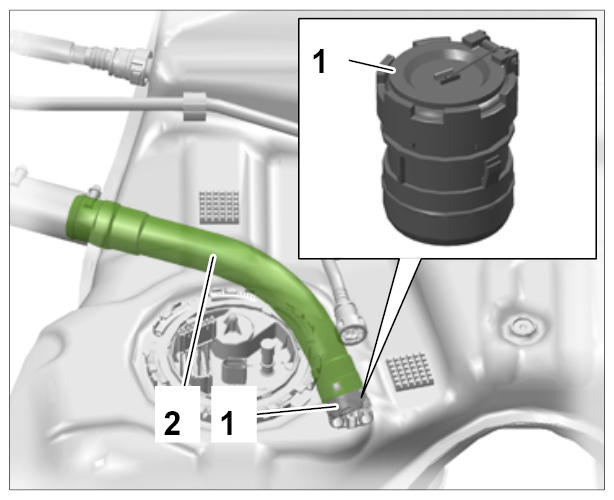

    Fig 1: Identifying Check Valve
    G09933381Courtesy of PORSCHE CARS NORTH AMERICA, INC.
