Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right connection unit -1-  with pressure regulator. (see →206619 REMOVING AND INSTALLING FUEL PUMP

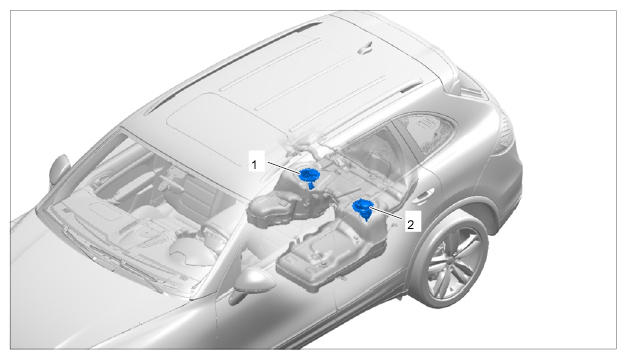

    Fig 1: Identifying Connection Units At Left And Right
    G09933380Courtesy of PORSCHE CARS NORTH AMERICA, INC.
