Replacing Accelerator Pedal: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

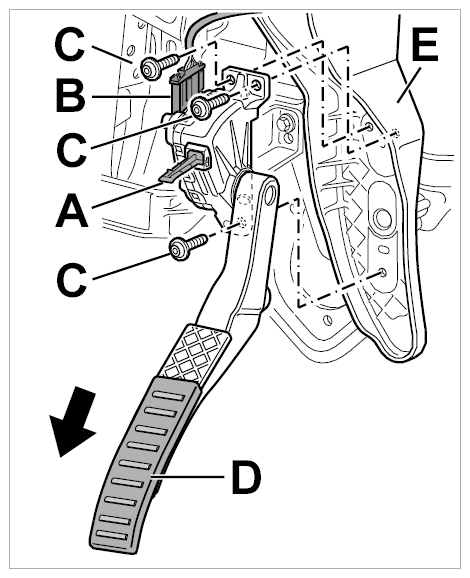

Fig 1: Removing Accelerator Pedal
G09933378Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull plug connection -B-  off the accelerator pedal module.
  2. Remove accelerator pedal module. To do this, remove the three fastening screws -C-  .
  3. Take the accelerator pedal module out of the footwell and remove the pedal cap -D-  by pulling it downwards.
